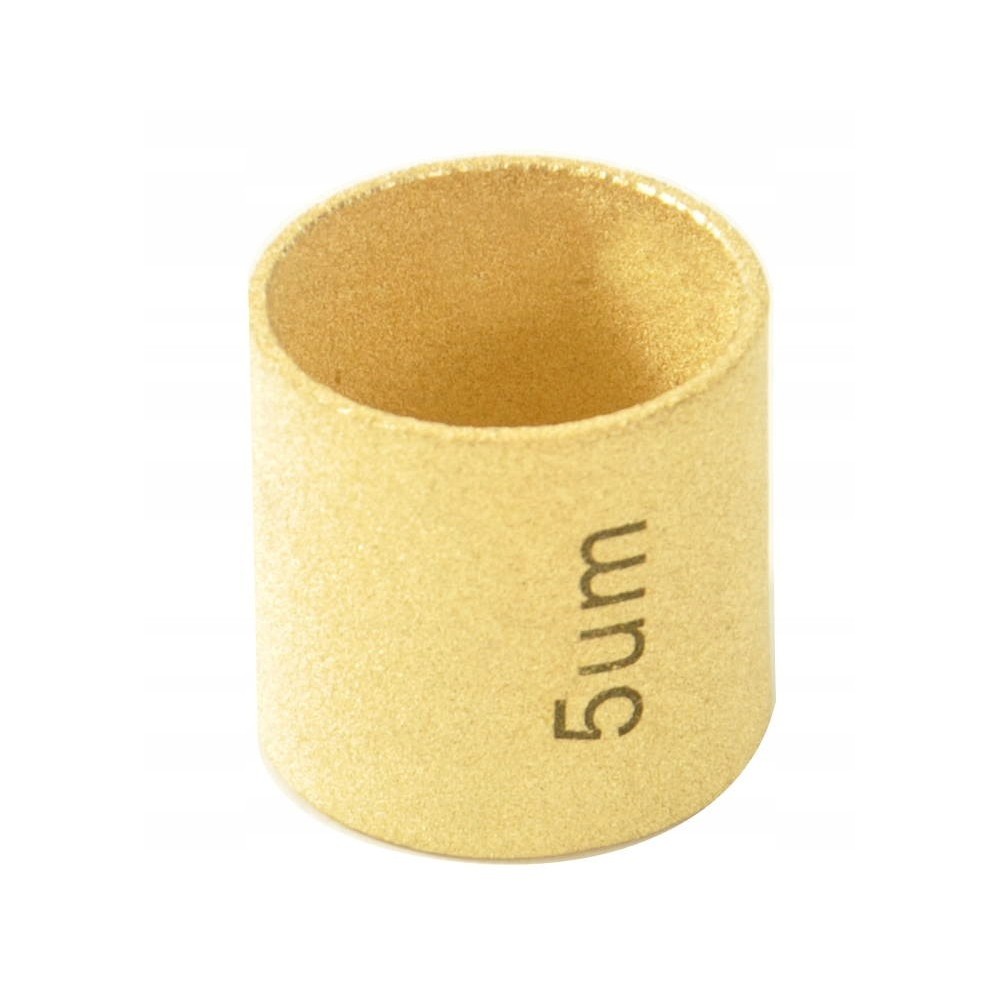

Dryer air filter cartridge 5 microns to AFR 804 bronze sintering

Inserts to the air filter 5 microns to AF804, etc. FE80-5UM

Inserts to air filters of various companies. The degree of filtration is 0.005 mm. It separates water pair as well as oil and other minor impurities.

If you want to check if the cartridge will fit your filter to start it and measure the diameter and height when the dimension is close to the one given on the auction, the cartridge will fit. Other dimensions can be found on our website. 5 micron filtration cartridges are used in varnishing as end filters.

If the compressor operates in a humid environment, use a micron filter before 5 micron filter, so that it does not lose its properties too quickly.

Technical data:

• Filtration: 5 microns
• Height Ok.: 24mm
• Diameter approx.: 24mm
• Wall thickness Ok.: 1.1mm
