Pneumatic puller for 410 mm springs. 105-180 mm 1 t 8 bar

€676.26
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062880

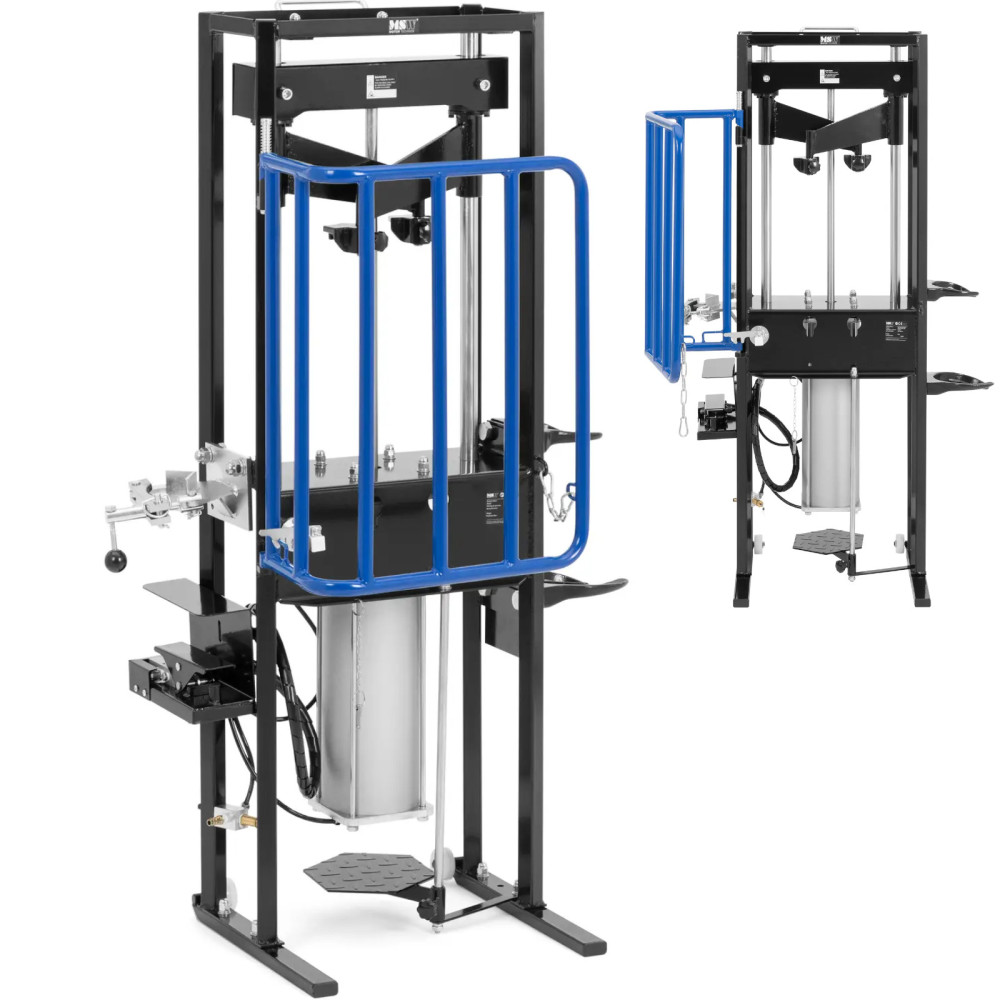

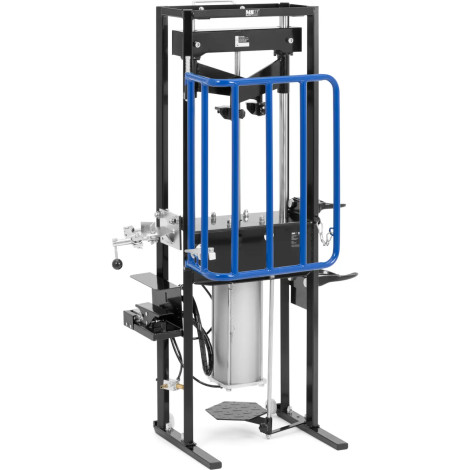

Pneumatic puller for brand springs MSW It allows you to squeeze the spring up to 410 mm. The machine impresses with versatility. It can be used for springs with a different number of scrolls and diameters from 105 to 180 mm. Two replaceable forks covered with plastic allow to adapt the hug to the type of task. The platform allows you to reliably attach the suspension columns. Thanks to the maximum pressure 1 t and working pressure to 8 bar (0.8 MPa) The device saves energy and time during maintenance or car repair. Modern security lock and service using pedal Foot will ensure that the device provides reliable protection during hard work. A solid construction of the puller was made of Carbon steel and cast iron, guarantees maximum durability and stability.
Product features:
  • - springs with high working pressure to 0.8 MPa and force up to 1 t,
  • - ensures a constant pressure force when compression 410 mm,
  • - for car springs with a diameter of 105 to 180 mm and a different number of coils,
  • - thanks to the safety and handling blocks, ensures reliable protection during demanding tasks,
  • - A lasting construction made of carbon steel and cast iron has two removable, plastic bottom fork.

Technical parameters:
  • - catalog number - 10062880
  • - article - New
  • - Model - MSW-Hcsc-p01
  • - Material - Carbon steel, cast iron
  • - Color - Black
  • - efficiency - 1 t
  • - air pressure - 0.8 MPa
  • - Dimensions (DXSXW) - 54 x 77 x 139.5 cm
  • - weight - 65.8 kg
  • - Dimensions of shipment (DXSXW) - 143.4 x 57.5 x 38.8 cm
  • - shipping weight - 85.1 kg

Included:
  • - Spring puller
  • - frame
  • - 3 forks (fastening, small, large)
  • - Foot pedal
  • - handle
  • - Protective locks
  • - Mounting accessories
