Manufacturer number:
10060143S-Charger-20A car rectifier It is designed for quick battery charging
Electricity with a maximum intensity of 12A.

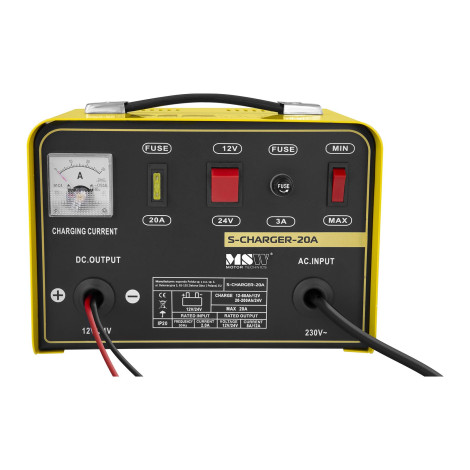

Practical and readable control panel It allows you to efficiently check and set the device's operation as needed. The panel has an analog display and convenient switches responsible for
Charging mode (
Min and max) and
Output voltage (
12V and 24V). The S-Charger-20A rectifier is characterized by efficiency, as well as
savingbecause
The maximum current is 0.5 kW.
Built-in fuse
Protects the device against short-circuits and tendingWhen the terminals are connected to the battery. The rectifier also has
overheating protection system, in the form of two fans and ventilamen. The equipment is convenient to move, thanks
Ergonomic handle, compact size and built-in wires.
Product features: - The effectiveness of - Quick loading thanks to two modes (min and max) and voltage switch (12V or 24V)
- Safety - fuse preventing short-circuit and cooling system protecting against overheating
- Practicality - A simple to use control panel with analog displays and switches
- Convenience - Compact size, convenient handle, built-in wires
- Saving - low power consumption
Technical parameters: - - Model - SEC-charger-20a
- - catalog number - 10060143
- - article - New
- - tension - 230V / 50Hz
- - output voltage - 12 / 24v
- - Charging current - 8 / 12a
- - Housing color - Black and yellow
- - length of the power cord - 180 cm
- - Length of the boot cable (+) - 150 cm
- - length of the boot cable (-) - 150 cm
- - Max. Current consumption - 0,5kw
- - battery type - Acid-lead
- - Recommended battery capacity - 12-200ah
- - Dimensions (DXSXW) - 15.6 x 25 x 19 cm
- - weight - 5.3 kg
- - Dimensions of shipment (DXSXW) - 31 x 23 x 22 cm
- - shipping weight - 5.9 kg
Included: - Rectifier with wires
- Manual EN
