Manufacturer's code:

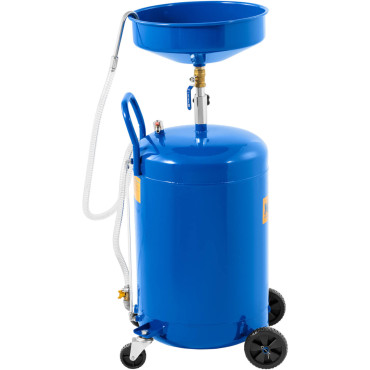

10061593Oil fee MSW It will work in a car workshops for websites or hobby garages. The device has a capacity tank
68 l. A waste oil tank has a capacity
10 l. The flow rate is
3 l / min. Adjustable height in the range
940-1300 mm Allows you to adjust the device to a wide range of engine types and sizes. The structure was made of solid materials,
Steel and PVC. Four wheels including two twistes with 2 x 5 'and 2 x 3' 'sizes provide mobility of equipment. Oil operating temperature for the device is
40-60DEG C At the pressing pressure maximum
0-3 bar.Product features: - - ideal for quick oil exchange,
- - for use in workshops,
- - made of high quality materials,
- - Easy device operation.
Technical parameters: - - Model - MSW-Od-68
- - catalog number - 10061593
- - article - New
- - Flow [l/min] - 3
- - Hose length [m] - 1,5
- - Material - Steel + PVC
- - diameter of wheels [mm] - 2 x 5 # 8221 and 2 x 3 # 8221
- - Number of wheels [szt.] - 4
- - height adjustment [mm] - 940-1300
- - Maximum power pressure [bar] - 0 - 3
- - bowl diameter [mm] - 363
- - Billing tank capacity [l] - 10
- - Operating temperature of the oil [deg C] - 40 - 60
- - Capacity of the control tank [l] - 68
- - Sunrogue - Not
- - Security valve - So
- - Dimensions (DXSXW) [cm] - 50 x 39 x 157
- - weight [kg] - 13,37
- - Dimensions of shipment (DXSXW) [cm] - 50 x 45 x 84
- - shipping weight [kg] - 15,41
Included: - - oil fee

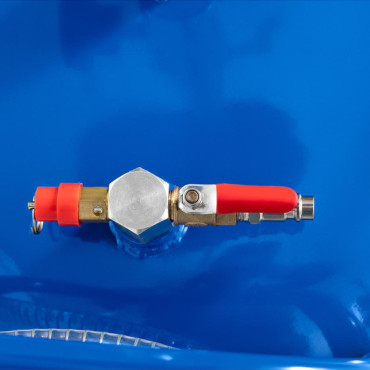

- - Tank with safety valve and ball valve
- - Bowl 10 L
- - Sealing tape
- - 4 wheels - 2 universal and 2 fixed
- - oil rail
- - 1.46 m steel pipe
- - 2 divided cotters
- - 2 M12 nuts with two washers
- - User manual
