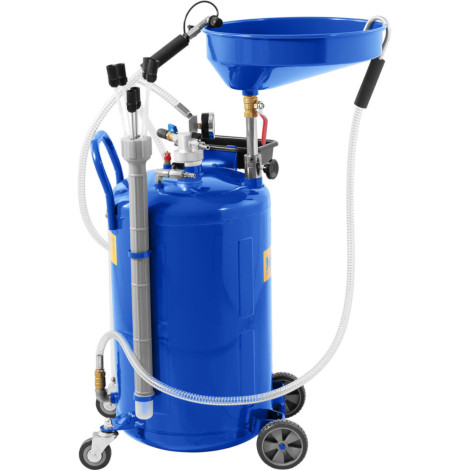

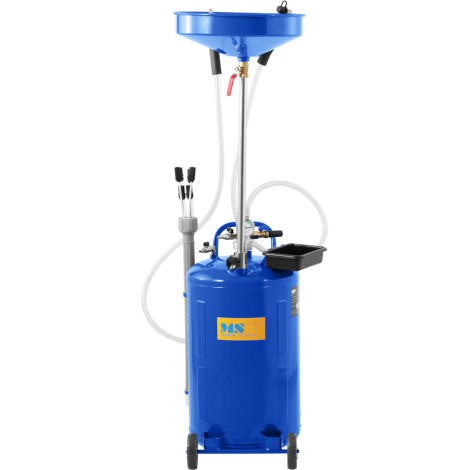

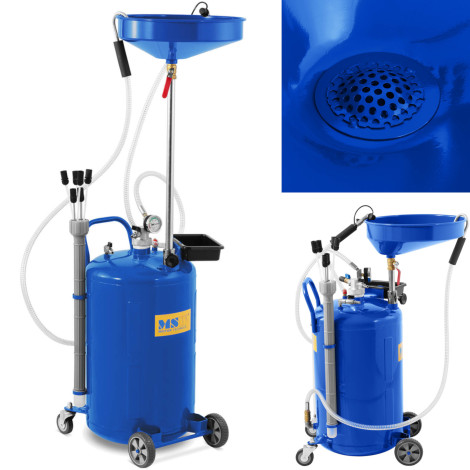

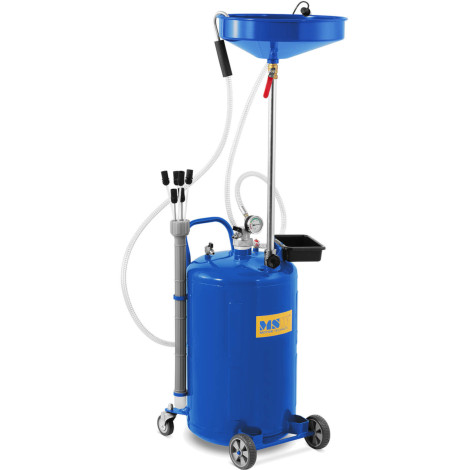

Pneumatic pneumatic weave for oil 70 L

Manufacturer's code: 10061595
Oil fee MSW It will work in a car workshops for websites or hobby garages. The device has a capacity tank 70 L. A waste oil tank has a capacity 10 l. The flow rate is 3 l / min. Adjustable height in the range 900-1450 mm Allows you to adjust the device to a wide range of engine types and sizes. The structure was made of solid materials, Steel, PVC, PU, PE, PA. Four wheels including two twistes with 2 x 5 'and 2 x 3' 'sizes provide mobility of equipment. Oil operating temperature for the device is 40-60DEG C At the pressing pressure maximum 0-3 bar.
Product features:

• - ideal for quick oil exchange,
• - for use in workshops,
• - made of high quality materials,
• - Easy device operation.

Technical parameters:

• - Model - MSW-Ode-70
• - catalog number - 10061595
• - article - New
• - Flow [l/min] - 3
• - Hose length [m] - 1,5
• - Material - Steel + PVC + PU + PE + PA
• - vacuum degree [bar] - 0,8
• - diameter of wheels [mm] - 2 x 5 # 8221 and 2 x 3 # 8221
• - Number of wheels [szt.] - 4
• - height adjustment [mm] - 900-1450
• - Maximum power pressure [bar] - 0-3

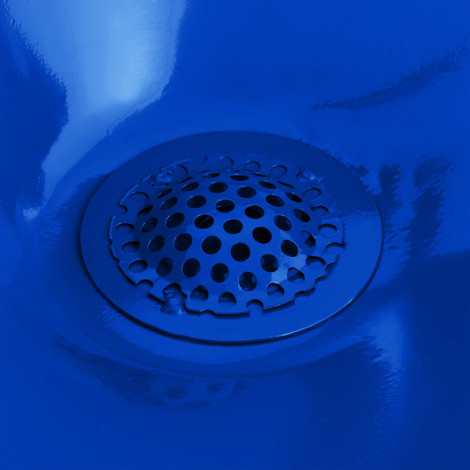

• - bowl diameter [mm] - 400
• - Billing tank capacity [l] - 10
• - Operating temperature of the oil [deg C] - 40-60
• - Capacity of the control tank [l] - 70
• - Sunrogue - So
• - Security valve - So
• - Dimensions (DXSXW) [cm] - 50 x 39 x 149
• - weight [kg] - 17,01
• - Dimensions of shipment (DXSXW) [cm] - 51 x 43.7 x 89.5
• - shipping weight [kg] - 19,14

Included:

• - oil fee
• - Tank with safety valve and ball valve
• - Bowl 10 L
• - Sealing tape
• - 4 wheels - 2 universal and 2 fixed
• - oil rail
• - 1.46 m steel pipe
• - M10 balestic screw
• - 2 divided cotters
• - 2 M12 nuts with two washers
• - negative pressure gauge
• - 5 suction pipes - SS: 8/6 mm, PA: 8/6/5 mm
• - steel suction tube 1.50 m
• - Suction pipe cover 610 mm
• - Removable oil bottle
• - User manual
