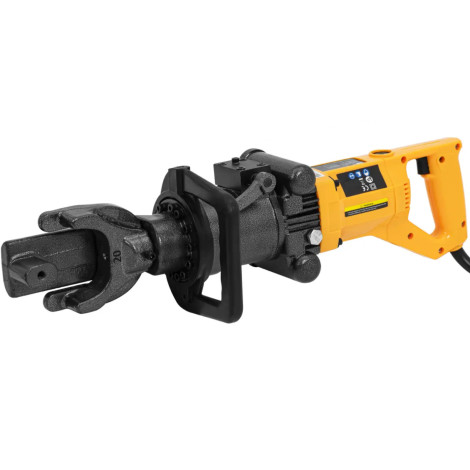

Bending machine for electrohydraulic armamidic bars 1500 w

Manufacturer's code: 10062808
Electrohydraulic bending machine for brand rods MSW It is distinguished by versatility and easy operation regardless of whether it is processing of permanently mounted elements or for mobile application on site. Thanks to a high power 1500, the device is able to generate an impressive working pressure of 300 bar. This means that With a minimal effort, an angle 90deg can be obtained even in the case of the hardest materials with a diameter of up to 20 mm. A portable reinforcement bending machine will ensure maximum flexibility on the construction site thanks to the 1.7 m cable. The bend to the bars was developed for ergonomics and ease of use. A specially shaped handle will limit fatigue and reduce the risk of injury during operation. In addition, the bending machine for reinforcing steel is distinguished by long life and constant yield thanks to the high-quality copper wire engine. A solid metal suitcase protects the tool and will facilitate its transport.
Product features:

• - a portable bending machine for rods with a length of 1.7 m long will be useful on construction sites or for processing elements mounted permanently,
• - the reinforcement bend will generate a working pressure of 300 bars at 1500 W power,
• - Stirrup bend will outstanding different metals for 90deg,
• - a well-designed bending holder for reinforcing bars minimizes fatigue and risk of injury,
• - A durable boss for rods with a copper wire engine in a metal protective suitcase.

Technical parameters:

• - catalog number - 10062808
• - article - New
• - Model - MSW-Ebnr-1500
• - frequency [Hz] - 50
• - Material - Nylon, cast iron, alloy steel
• - Color - Blue, silver metallic
• - Input voltage - 1500 W
• - Bending range [mm] - 8 - 20
• - Range of diameters [mm] - 20
• - engine wire - Copper
• - Bending Angle [deg ] - 90
• - Input voltage [V] - 230
• - Insulation class - F
• - IEC protective class - II
• - Device work cycle - S1
• - Power cord - 1.7 m
• - Maximum working pressure - 300 bar
• - Case included - So
• - Dimensions (DXSXW) - 60 x 16.5 x 18 cm
• - weight - 13.45 kg
• - Dimensions of shipment (DXSXW) - 70 x 32 x 27 cm
• - shipping weight - 20.9 kg

Included:

• - bending machines for bars MSW-Ebnr-1500
• - 1 key
• - 2 Allen keys
• - 2 screws
• - 1 can of oil
• - Suitcase for storage
