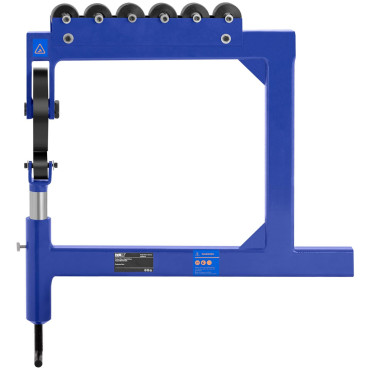

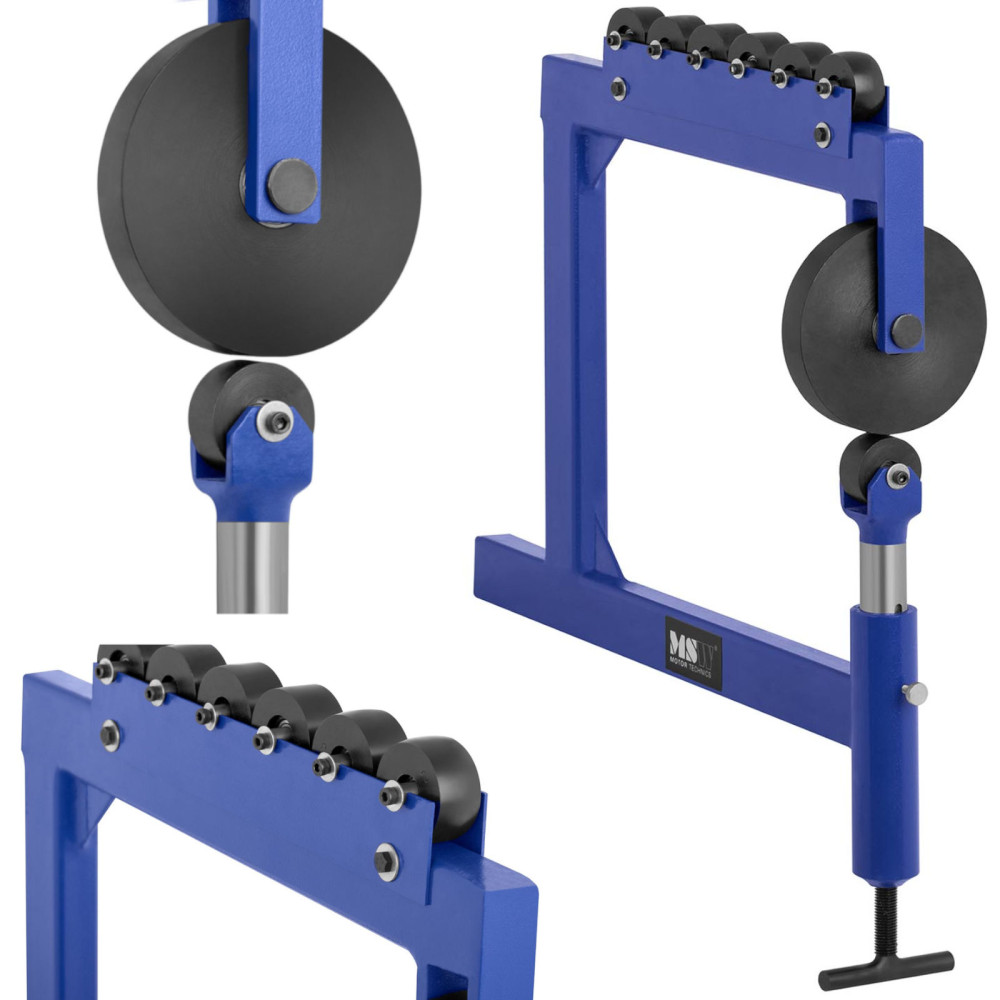

English wheel bending machine roll for metal shell 360 mm

€227.71
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10060484
English German brand MSW It will work in automotive workshops, bodies, production, and also for DIY. It will be ideal for smoothing dents, modeling damaged fenders, crash or other body parts or chassis.

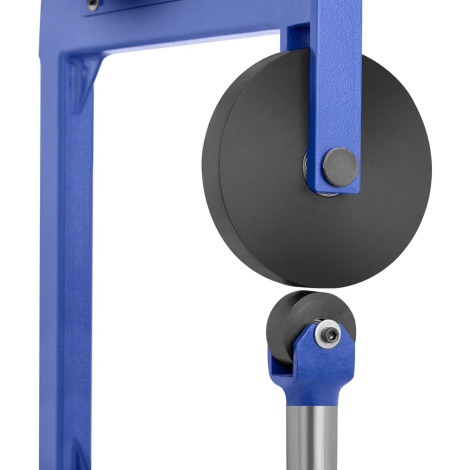

Devices Shapes the sheet sheet by stretching its surface. It does not require heating of sheet or other additional treatments. The device uses six steel lower rollers with dimensions: 1/2 # 8221 (12.7 mm), 1 # 8221 (25.4 mm), 1-1 / 2 # 8221 (38.1 mm), 2-1 / 2 # 8221 (63.5 mm), 5 # 8221 (127 mm), 9 # 8221 (228.6 mm). Their high hardness allows you to eliminate even large dents, connect joints in fenders, boot panels or mask. Clearance 360 mm Allows you to work with large sheet sheets with a thickness of max. 0.8 mm, as well as the execution of complex bends with different rays, such as rings, gutter or rollers. Strong bending machine design and the possibility of fixing to vices ensure stability device. Adjustment The lower roll allows you to individually adjust the pressure force to the material and keep it in the right place. This is made by turning the handle that raises and leaves the roller. It improves this performance of the correct shape for different thicknesses of workpieces.
Product features:
  • - Convenience - quickly contoured and smoothed surfaces without additional works,
  • - Versatility - 6 rays of rollers to choose from,
  • - The functionality of - unrivaled, complex bending,
  • - Strength and trouble-free - precise execution from solid steel,
  • - Practical construction - stable mounting for the substrate, roller feeder,

Technical parameters:
  • - Model - MSW-Ew-360
  • - catalog number - 10060484
  • - article - New
  • - Top roller - 150 mm
  • - Lower Fighting - 6 pcs (1/2 # 8221 (12.7 mm), 1 # 8221 (25.4 mm), 1-1 / 2 # 8221 (38.1 mm), 2-1 / 2 # 8221 (63.5 mm), 5 # 8221 (127 mm), 9 # 8221 (228.6 mm)
  • - clearance - 360 mm
  • - thickness of the workpiece of soft steel - up to 0.8 mm
  • - Material - Steel
  • - Dimensions (DXSXW) - 62 x 15 x 67 cm
  • - weight - 16 kg
  • - Dimensions of shipment (DXSXW) - 65 x 56 x 9.5 cm
  • - shipping weight - 21.75 kg

Included:
  • - English wheel
  • - Accessories: 1x upper roller and 6x bottom roller
  • - User manual
