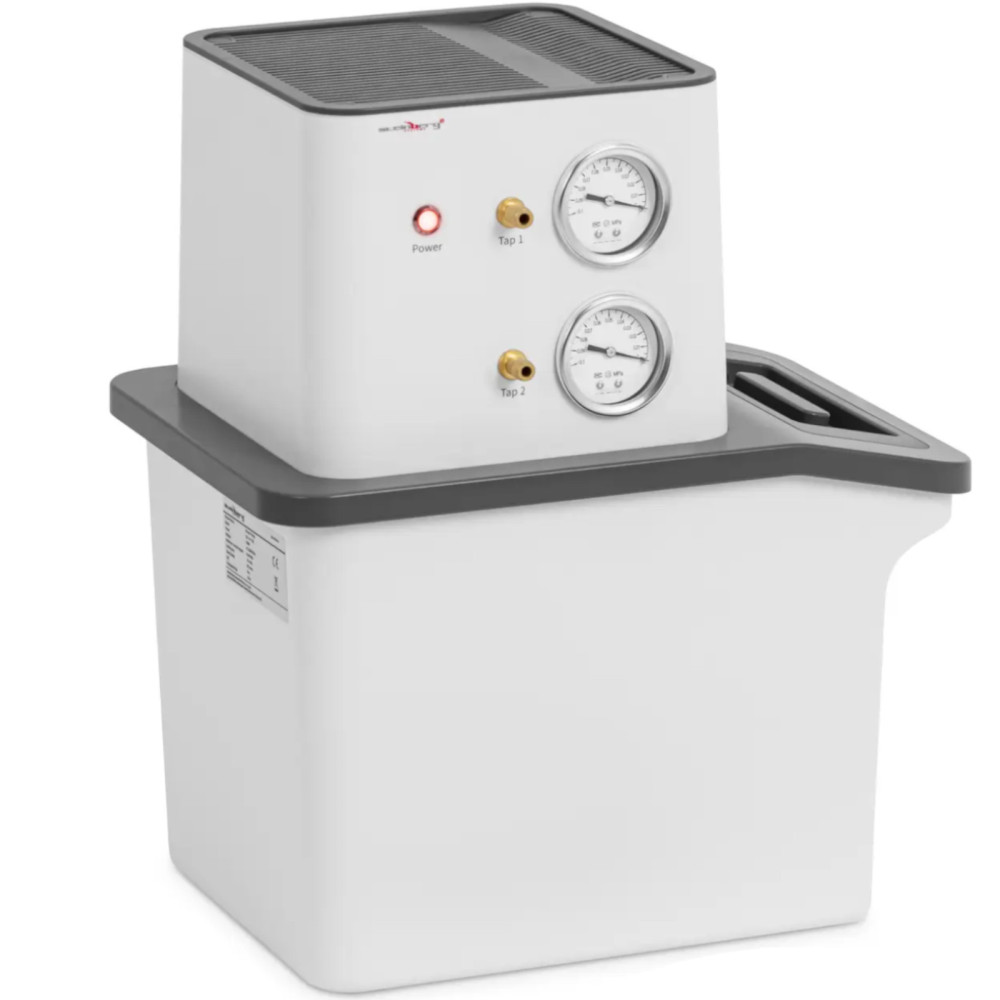

Laboratory vacuum pump 2 valves 9 l 60 l / min 180 w

€488.90
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10031360
Double vacuum pump SBS-Vp-300 brand Steinberg Systems It will allow water to create an optimal vacuum needed to work in a laboratory, e.g. evaporation, distillation, crystallization, drying, filtering or degassing. The device impresses its parameters. Thanks to the turbine construction, the engine with a copper coil with a capacity of 180 in reaches the flow up to 60 l / min at a pressure of 0.98 bar (low vacuum). The pump has a water tank with a capacity of 9 l. Despite the high parameters, the vacuum pump will be particularly safe in laboratory use. The built-in valve will prevent water withdrawing. Thanks to this, the machine will maintain a vacuum even in case of accidental switching off. The engine temperature will retain the optimal level using a fan, which will guarantee a long-hour work. The vacuum pump complements durable materials such as corrosion-resistant engine shaft ideal for work in difficult conditions, such as industrial plants or laboratories.
Product features:
  • - double vacuum pump with two valves and pressure gauges, capacity 9 L and pressure 0.98 bar for parallel work in the laboratory,
  • - the turbine structure reduces the resistance of the vacuum pump and allows you to flow at 60 l / min,
  • - the built-in valve prevents reverse flow and maintains the vacuum if the pump is accidentally switched off,
  • - the engine temperature with a full copper coil is maintained on an ideal level using a fan and provides stable pump operation,
  • - Corrosion-resistant engine shaft is very durable and ideally checked in difficult conditions, such as industrial plants or laboratories.

Technical parameters:
  • - catalog number - 10031360
  • - article - New
  • - Model - SBS-Vp-300
  • - frequency [Hz] - 50
  • - Material - ABS, PVC, Copper
  • - Color - White
  • - Tension [V] - 220
  • - valves - 2
  • - Lifting range [m] - 8
  • - power [W] - 180
  • - vacuum degree [bar] - 0.98
  • - internal / outer diameter - 8 mm
  • - efficiency - 10 l / min
  • - water flow - 60 l / min
  • - tank capacity - 9 L
  • - noise level - 68 dB
  • - Dimensions (DXSXW) - 34 x 36 x 41.5 cm
  • - weight - 8.3 kg
  • - Dimensions of shipment (DXSXW) - 43 x 34 x 52 cm
  • - shipping weight - 9.9 kg

Included:
  • - Vacuum pump
1025975

Data sheet

Kod producenta
1025975
