Laboratory homogenized LED up to 11000 rpm. 500-40000 ml

€924.81
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10031383

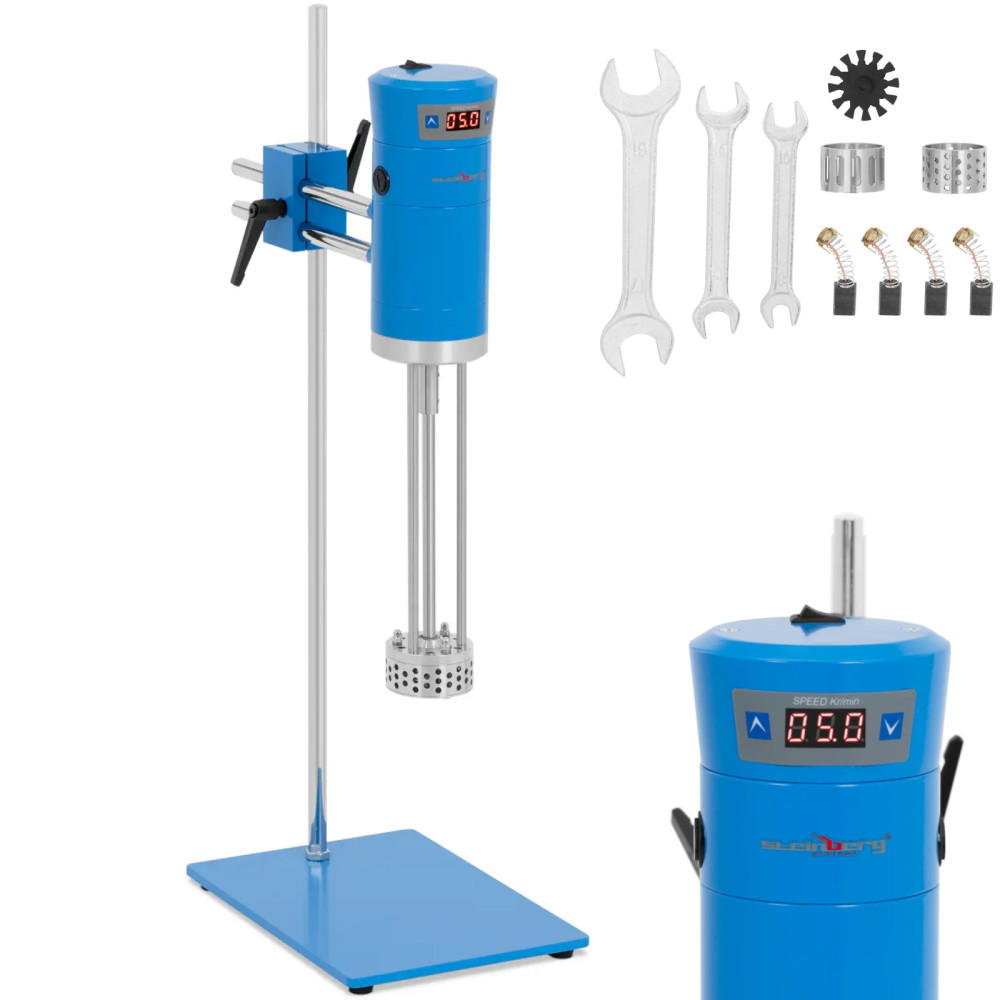

Brief homogenizer Steinberg Systems Effectively breaks and mix various substances, creating a homogeneous mixture at the micro or nanoparticle. It will work in research, product development or quality assurance. The device has a tripod whose height is set depending on the vessel. A large base provides enough space for large dishes as well as stability during operation. Strong and compact 510 engine engine There was a durable housing with a pressure cast aluminum. It achieves a speed from 200 to 11000 rpm. The LED display allows you to specify the value suitable for the substance. Work head with high quality stainless steel It is easy to clean, resistant to corrosion and does not react with chemicals, acids and principles. Meets all hygiene requirements of laboratories. To clear the head and stator, it is enough to disconnect them. Head with a diameter 7 cm Ideally suited for high volume samples 500 - 40000 ml. The device can be used for efficient mixing of high viscosity liquids in the laboratory, emulsifying the particles of active ingredients and the processing of cosmetic emulsions and liquid food products.
Product features:
  • - Easy head replacement in a few steps using the connector,
  • - a strong and compact laboratory homogenizer motor with a power of 510 in reaches a speed of up to 11000 rpm,
  • - all values can be carefully set using the LED display on the homogenizer,
  • - individual elements were made of high quality stainless steel and are easy to clean, resistant to corrosion and do not react with chemicals, acids and principles,
  • - The rotary homogenizer is intended for a capacity of 500 to 40000 ml.

Technical parameters:
  • - catalog number - 10031383
  • - article - New
  • - Model - SBS-Uh-170
  • - frequency [Hz] - 50/60
  • - Material - Stainless steel, aluminum, carbon steel
  • - Color - Blue, gray
  • - Tension [V] - 220
  • - Display type - Led
  • - torque [Nm] - 0.34
  • - Dimensions of the base [mm] - 215 x 310
  • - power [W] - 510
  • - viscosity [mPas] - 8000
  • - capacity [ml] - 500 - 40000
  • - Speed range - 2000 - 11000 rpm
  • - Operating mode - S1 (continuous work)
  • - head diameter [mm] - 70 mm
  • - Maximum output power - 300 W
  • - Dimensions (DXSXW) - 35 x 21.5 x 73.5 cm
  • - weight - 10.05 kg
  • - Dimensions of shipment (DXSXW) - 58 x 34 x 19 cm
  • - shipping weight - 11.4 kg

Included:
  • - Homogenizer
  • - 3 standard standing stator (5/20/50 mm2)
  • - 3 flat keys (8 x 10 mm, 12 x 14 mm, 17 x 19 mm)
  • - 2 carbon brushes
