Manufacturer's code:

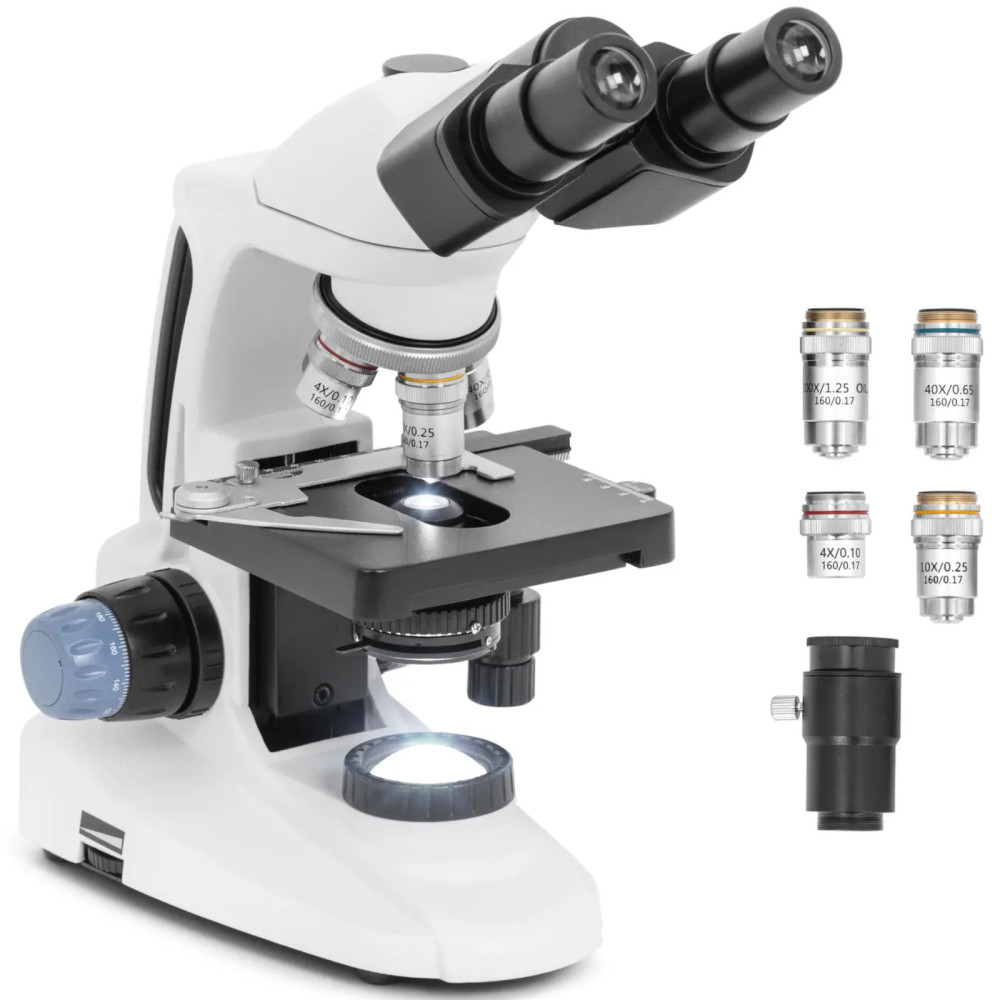

10031345Microscope Steinberg Systems This is an ideal model for use in laboratories, schools or universities. It has dimmable LED lighting and is easy to use. Zoom to 1000x allows you to explore blood, plants, minerals or insects in detail, and the passing light and reflected optimally illuminates even the smallest details, even in the case of samples of poor light transmission. Due to
Four achromatic lenses (4x / 10x / 40x, spring / 100x oil, spring) and two WF-10x glasses There are different zoom levels to choose from. The laboratory microscope provides excellent image sharpness and color correction at work on a professional level. The precise capacitor on1.25 facilitates precise focus on individual elements and cares for a clear picture of a high contrast. The tube of the eyepiece is inclined under
30deg angle So you can observe samples in a natural position sitting for a long time. By

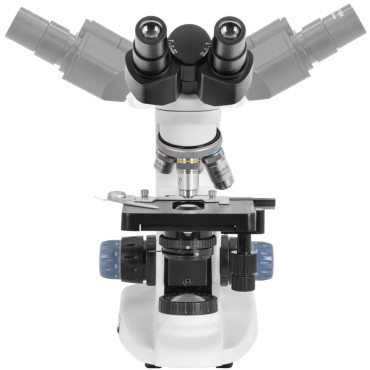

rotary head Stereoscopic microscope eyepiece Softly set the pupil interval and compensation of diopter. If necessary
You can connect a third eyepiece or camera. Compact design, large zoom range and compatibility with other accessories allow you to use the microscope in different places. The sample on the slide can be attached to a moving microscopic table with dimensions
110 x 125 mm. A solid base provides stability and view without vibrations.
Product features: - - large magnification Thanks to two WF-10X and four lenses (4x / 10x / 40x, spring / 100x oil, spring) with the possibility of connecting a third eyepiece or camera offers a magnification in the range of 40 - 1000x,
- - the head can be rotated by 360DEG, and the tubulic light of the reflected light microscope tilts at an angle of 30deg, which provides a convenient position during observation,
- - ABBE condhea (NA1.25) allows you to optimally focus the light to get a sharp image with high contrast,
- - thanks to the tinted LED providing a light passing microscope offers the best view of flat and plastic objects, even in a dark environment,
- - A handy microscope construction allows you to easily transport it.
Technical parameters: - - catalog number - 10031345
- - article - New
- - Model - SBS-Mk-6
- - Material - Plastic, metal
- - Color - Black, white
- - power supply - Network power supply
- - Glasses - 10x
- - lenses - 4x / 10x / 40x / 100x
- - Rotation range [deg ] - 360
- - Working table [mm] - 110 x 125
- - Backlight - Led
- - total enlargement - 1000x
- - Moving tube - So
- - Coating range - 32 mm
- - Dimensions (DXSXW) - 37.5 x 17 x 33 cm
- - weight - 4.14 kg
- - Dimensions of shipment (DXSXW) - 41 x 33 x 27 cm
- - shipping weight - 5.2 kg
Included: - - microscope
- - 2 glasses (WF-10x)
- - Power cord
- - Allen key
- - fuse
- - CCD camera connection
- - CEDAR OIL
