Manufacturer number:

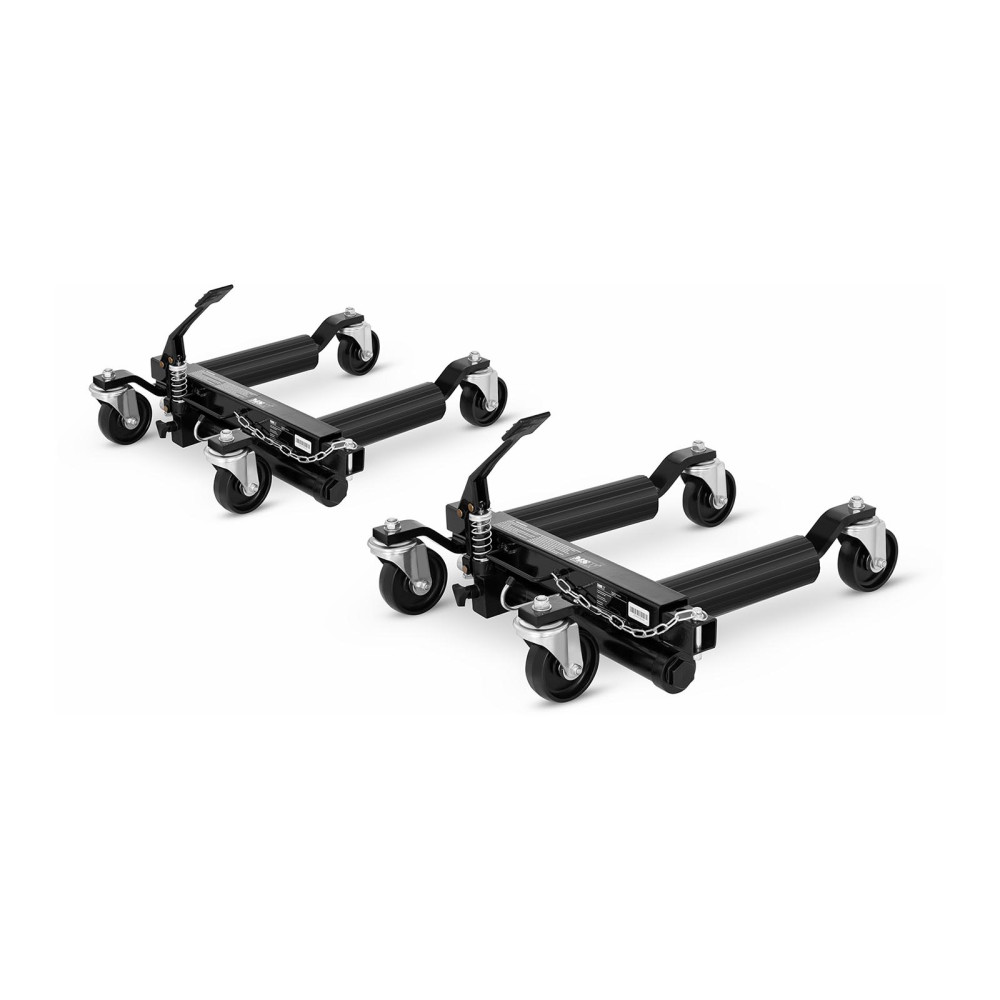

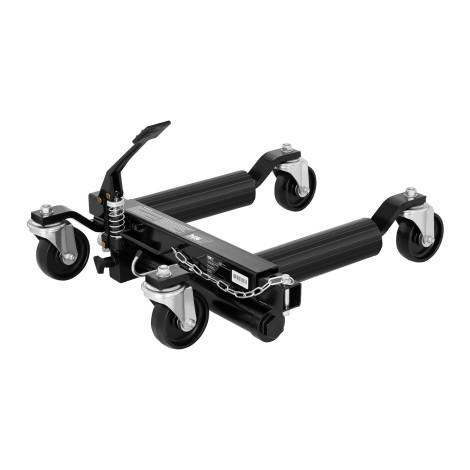

MSW 10060930Trolley for moving German vehicles MSW it
A tool for lifting and moving vehicles without the need to use their primary drive. Model MSW-HRH-680 will greatly work in various types of workshops, sites, roadside and agricultural aids and individual garages of DIY.
Four torsional circles They facilitate maneuvering the construction, even in small rooms, and convenient, co-controlled by foot pedal, hydraulic lifting mechanism (in the range from 380 to 660 mm) increases its functionality. In addition, the auto locking mechanism in a suitable position and protecting a pin with a chain and hook increase work safety.
Transport rollers were made of high quality steel, which guarantees above-average durability. This allows
Convenient transport and lifting of vehicles with a weight of up to 680 kg (for a single copy). In addition, due to a simple service, low weight and compact size, the set is very mobile and comfortable.
Product features: - - Performance - hydraulic lifting mechanism (from 380 to 660 mm),
- - Strength - a strong construction with a maximum lifting capacity of up to 680 kg,
- - Convenience - four twisting wheels, foot-pedal control,
- - Safety - auto locking mechanism in a suitable position and protecting a pin with a chain and a pedal locking hook,
- - Mobility - small weight and compact sizes make it easier to move the set,
- - Multi - Possibility to be made under a pierced or damaged wheel (including working with tires with a width of up to 30 cm), threshold, engine, swingarm or sleds.
Technical parameters: - - Model - MSW-Hrh-680
- - catalog number - 10060930
- - Dimensions of wheels - 101.5 x 33.8 mm
- - Cooperating rollers - 300 mm
- - Regulation range - 380-660 mm
- - actuator stroke - 280 mm
- - Maximum load for one piece - 680 kg
- - Dimensions (DXSXW) - 73 x 68 x 34.5 cm
- - weight - 35 kg
- - Dimensions of shipment (DXSXW) - 88 x 62.5 x 24.5 cm
- - shipping weight - 37.45 kg
Included: - - trolley (2 pcs),
- - EN statement.
