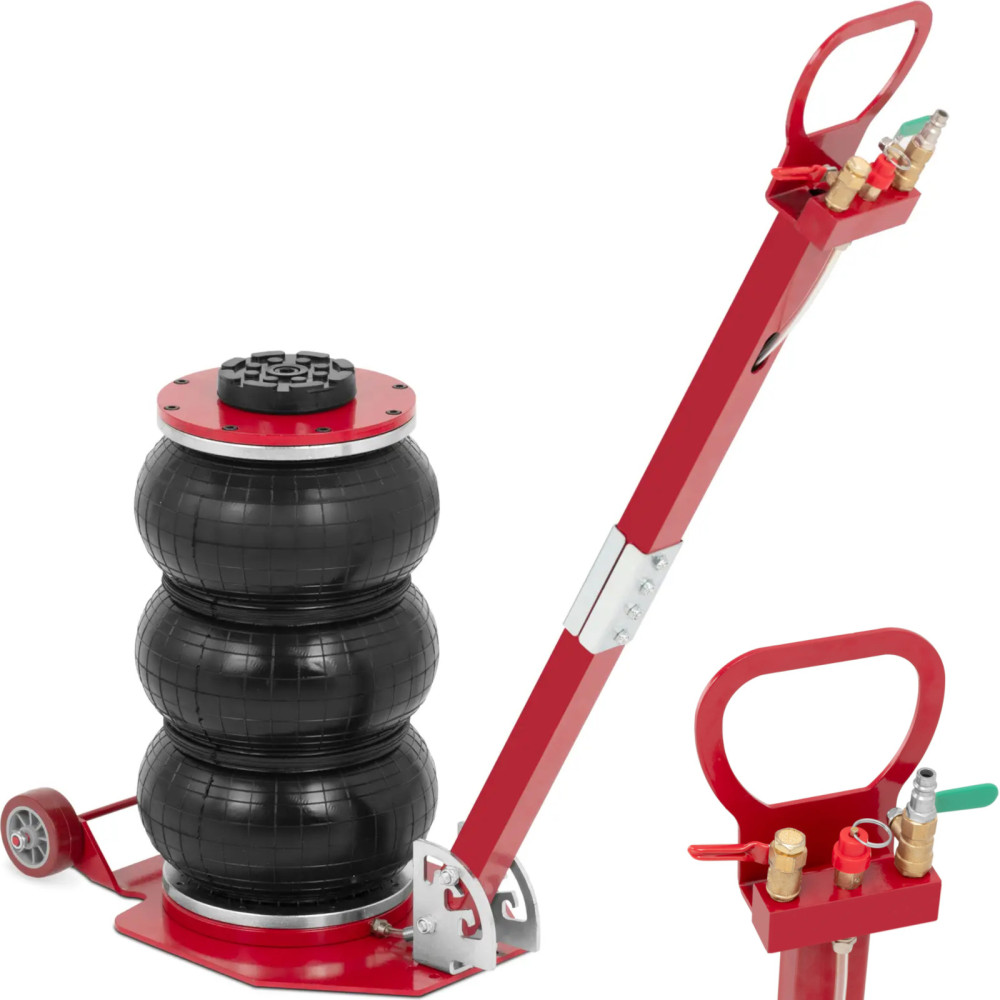

Pneumatic lankin lift type snowman with adjustable handle 150 - 400 mm 3 t

Manufacturer's code: 10062557
Pneumatic Lift Brand MSW Thanks to the euro connector, it is ready for immediate lifting vehicles using compressed air. The compact design makes the snowman lifter extremely versatile, so that quickly and directly can be used in the workshop. Working pressure from 5 to 10 bars enables easy lifting of vehicles up to 3000 kg. Three rubber airbags reach a lifting height of 40 cm in just five seconds. The pneumatic lift is stabilized by the ejected internal bracket. Overload valve provides additional security. Thanks to two circles and adjustable handle with three items, you can set the jack in the optimal position. Rubberized washer with a diameter of 10 cm protects the vehicle from scratches during lifting. Pneumatic pillows are not only strong, but also resistant to tearing and prevent scratches during maneuvering. A large base surface provides the necessary stability. Thanks to the compact design and a large wheelbow, an extremely turning pneumatic lifter in your workshop can be used easily.
Product features:

• - the pneumatic lift uses compressed air with a pressure from 5 to 10 bars from the compressor to use airbags easily and directly with a weight of up to 3000 kg,
• - pneumatic jack achieves a maximum lifting height of 40 cm in just 5 seconds, so you can quickly start working,
• - a large base and a bracket with a diameter of 10 cm ensure stability of the lift, and the safety valve protects against excessive load,
• - thanks to the adjustable, three-point handle and two wheels, the jack can always be set in the optimal position,
• - The structure made of steel and three airbags is solid and durable, adjustable internal cylinder provides stability after unfolding.

Technical parameters:

• - catalog number - 10062557
• - article - New
• - Model - MSW-Pcj-301
• - Material - Rubber, Steel
• - Color - Black
• - Air Inlet Size - G1 / 4 "
• - Lifting range [mm] - 150 - 400
• - connector type - Euro
• - Maximum lifting speed - 5 s
• - Work temperature range [deg C] - -30 - 50
• - Airbags [szt.] - 3
• - Wheels - So
• - Safety valve - So
• - width - 250 mm
• - handle length - 80 cm
• - Diameter of wheels - 7 cm
• - air pressure - 10 bar
• - Maximum load - 3000 kg
• - Maximum lifting height - 40 cm
• - Dimensions (DXSXW) - 112 x 25 x 15 cm
• - weight - 15.75 kg
• - Dimensions of shipment (DXSXW) - 51 x 43 x 18 cm
• - shipping weight - 16.8 kg

Included:

• - Pneumatic car lift
