Manufacturer's code: 10030748
Balance Balance Steinberg Systems It allows you to maintain heavy work equipment in a workshop, serial production or a mounting hall. The device maintains pneumatic tools about weighing 5-6.5 kg In their work position, thanks to which the tools can be used easier and more precisely and effortlessly. Balansera housing was made of solid and durable steel, who withstands even intensive use. Polyester snake Safely maintains the pneumatic tool during assembly and other works. The device is powered by compressed air with a working pressure 10 bar (Up pressure 60 bar). The compressed air relief has a connector R3 / 8 ''and a snake R1 / 4 ''. Balanser must always be supported vertically to optimally balance the weight. The snake has a length 1.3 m And ensures freedom of movement.
Product features:
  • - high load capacity allows you to maintain tools weighing 5-6.5 kg,
  • - the length of the hose 1.3 m provides maximum freedom of movement,
  • - heavy pneumatic tools are relieved by preventing fatigue,
  • - housing made of steel and resistant to tearing a polyester hose,
  • - maintains pneumatic tools in a work position.

Technical parameters:

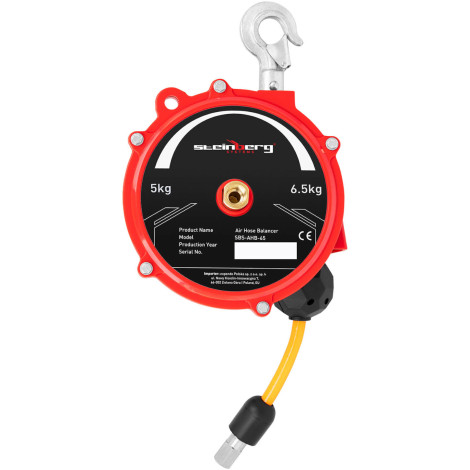

  • - Model - SBS-Ahb-65
  • - catalog number - 10030748
  • - article - New
  • - Working length [m] - 1,3
  • - serpent thickness [mm] - 8 x 12
  • - Material - Plastic, polyester, steel
  • - Permissible load [kg] - 6,5
  • - Maximum load [kg] - 6,5
  • - Connection - Air Inlet: 3/8 ", air outlet: 1/4"
  • - Weight load [kg] - 5-6,5
  • - Maximum pressure [bar] - 6 MPa
  • - Working pressure [MPa] - 1
  • - Dimensions (DXSXW) [cm] - 25 x 18 x 17
  • - weight [kg] - 2,25
  • - Dimensions of shipment (DXSXW) [cm] - 32.5 x 24 x 19.5
  • - shipping weight [kg] - 2,65

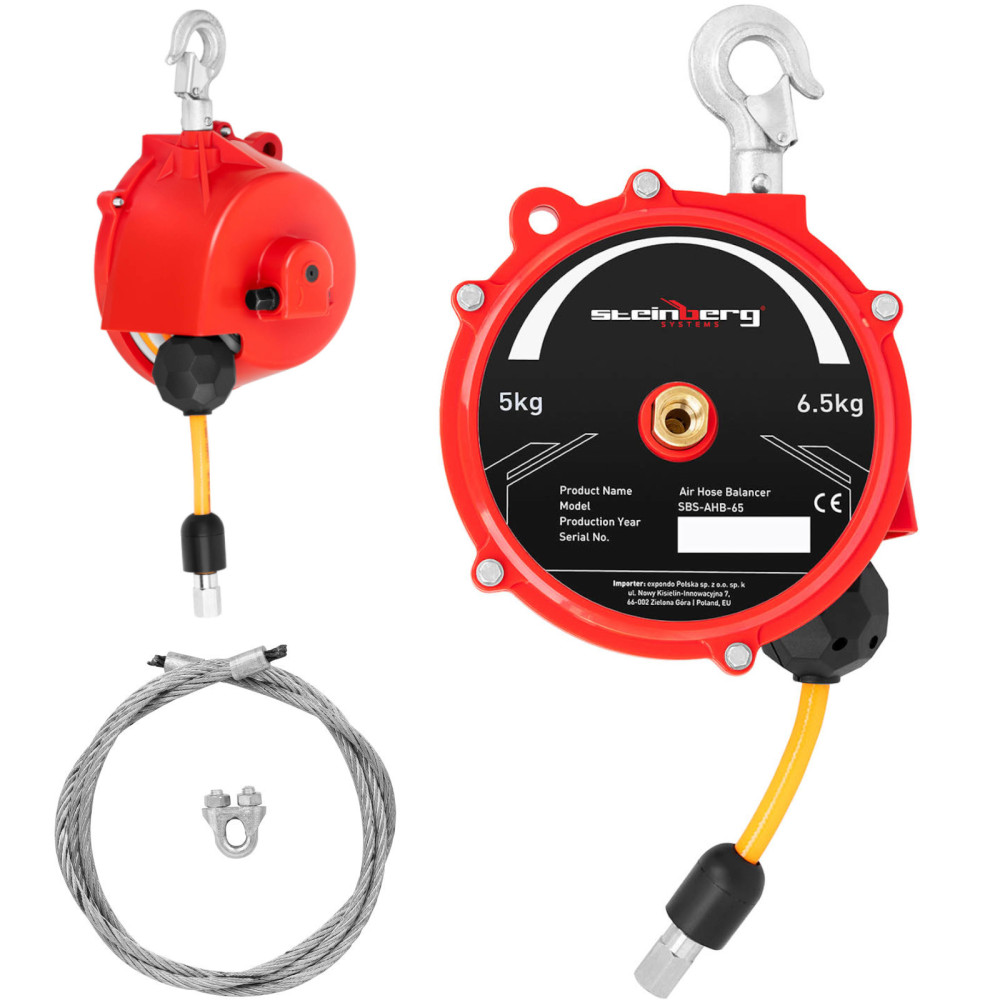

Included:
  • - Balanser
  • - User manual
