Link Balance Link with a pneumatic hose 1.5 - 2.5 kg 1.3 m

€197.80
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10030751

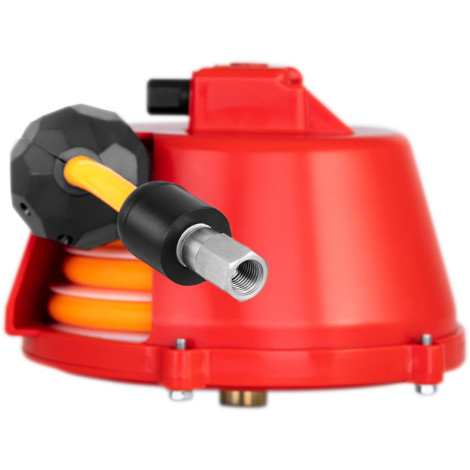

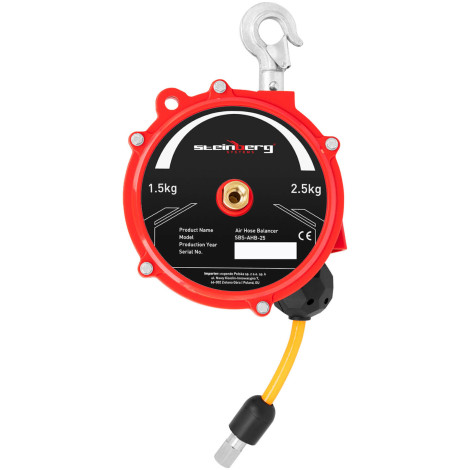

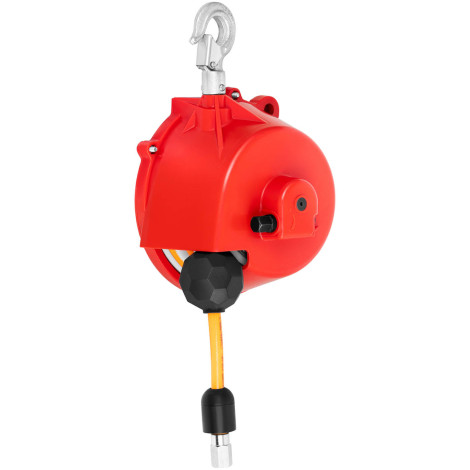

Balance Balance Steinberg Systems It allows you to maintain heavy work equipment in a workshop, serial production or a mounting hall. The device maintains pneumatic tools about weighing 1.5-2.5 kg In their work position, thanks to which the tools can be used easier and more precisely and effortlessly. Balanceser's housing was made of solid and durable steel, which will endure even intensive use. The polyester hose securely maintains the pneumatic tool during assembly and other work. The device is powered by a compressed air with a 10 bar working pressure (up to 60 bar pressure). The relief into compressed air has an R3 / 8 '' connector and a hose R1 / 4 ''. Balanser must always be supported vertically to optimally balance the weight. The hose has a length of 1.3 m and ensures freedom of movement.

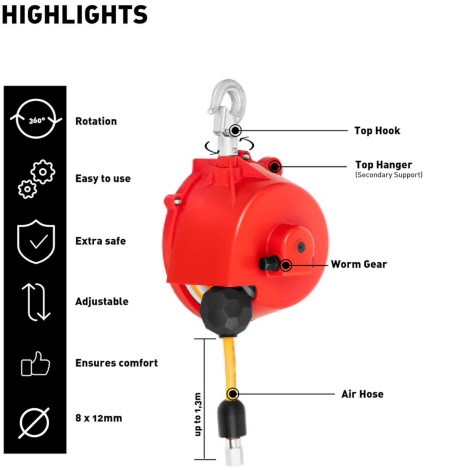

Product features:
  • - high load capacity allows you to maintain tools weighing 1.5-2.5 kg,
  • - the length of the hose 1.3 m provides maximum freedom of movement,
  • - heavy pneumatic tools are relieved by preventing fatigue,
  • - housing made of steel and resistant to tearing a polyester hose,
  • - maintains pneumatic tools in a work position.

Technical parameters:
  • - Model - SBS-Ahb-25
  • - catalog number - 10030751
  • - article - New
  • - Working length [m] - 1,3
  • - serpent thickness [mm] - 8 x 12
  • - Material - Plastic, polyester, steel
  • - Permissible load [kg] - 2,5
  • - Maximum load [kg] - 2,5
  • - Connection - Air Inlet: 3/8 ", air outlet: 1/4"
  • - Weight load [kg] - 1,5-2,5
  • - Maximum pressure [bar] - 6 MPa
  • - Working pressure [MPa] - 1
  • - Dimensions (DXSXW) [cm] - 25 x 18 x 16
  • - weight [kg] - 2
  • - Dimensions of shipment (DXSXW) [cm] - 32.5 x 24 x 19.5
  • - shipping weight [kg] - 2,5

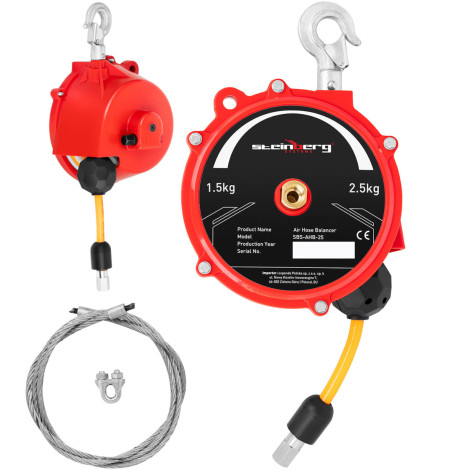

Included:
  • - Balanser
  • - User manual
