Manufacturer's code:
10062295Magnetic drill MSW Suitable for drilling, deepening, threading and ring drilling - ideal for industrial and commercial metalworking. It does not matter if you work vertically or horizontally. Strong
electromagnetic foot Safely maintains the machine in the desired position. The power of the device is
1680. You can adjust
Speedlessly up to 395 rpm. You can reverse the direction of rotation to cut threads. It reliably prevents damage to freshly cut thread during unscrewing. All settings are made on a convenient control panel. The drilling depth is changed using a three-dimensional knob. Thanks to a large jump from
0 to 165 mm You can work extremely flexible.

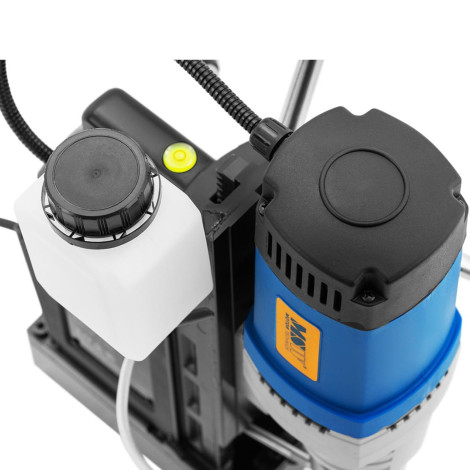

Integrated level Allows you to assess the position of the drill. The drill also has an integrated coolant tank. In case of simple tasks, fill the container
0.3 l Water from tap. For more demanding holes, use a special coolant or drilling oil. This extends the life of drills and minimizes maintenance. The maximum attraction force is
18000 N - It corresponds to almost 2 t - Magnet also allows you to work on thinner materials. The fastening strap contained in the supply range provides additional protection. For example, in the event of a power failure, it prevents the workpiece or damage. The device is also equipped with
RCD magnetic switch. If the drive is accidentally switched on after a power failure or disconnecting from the mains, the motor still does not move. REQUIRING POSSIBLE BEFECTIVE ON THE MAGNETIC SWITCH. In the set there are: Drilling grip for grips with a diameter of up to 16 mm, coolant tank, carbon brushes, MK3 / grip Weldon 19 mm, fuses, all assembly tools and many other useful elements.
Product features: - - 1680 W motor,

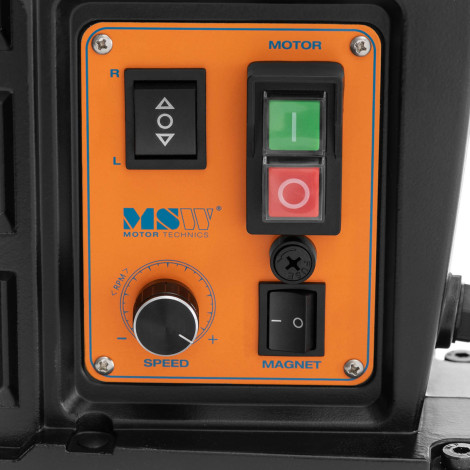

- - Control panel with infinitely variable speed adjustment, direction of rotation and other control elements,
- - integrated coolant and laser for precise drilling,
- - RCD magnetic switch, seat belt, easily accessible fuse and two-stage safety switch,
- - A large set of accessories and a transport case.
Technical parameters: - - catalog number - 10062295
- - article - New
- - Model - MSW-MD60-Laser Pro
- - Material - Aluminum, Aluminum alloy, Plastic, Steel, Magnesium alloy
- - Diameter of lace drill [mm] - 60
- - Diameter of the drill [mm] - 28
- - Built-in spirit level - So
- - Drilling Holder - B18 / 3 - 16 mm
- - length of the cooling tank pipe [mm] - 500
- - Maximum solenoid force [N] - 18000
- - Maximum drilling depth with lace drill [mm] - 50
- - Adjusting the range of the guide [mm] - 0-165
- - Safety bar included - So
- - Power cord [m] - 2,25
- - tap diameter - M25
- - Tension [V] - 230
- - power [W] - 1680
- - rotational speed [obr./min] - 395
- - tank capacity [l] - 0,3
- - threading function - So
- - Dimensions (DXSXW) - 33 x 28 x 54 cm
- - weight - 18.65 kg
- - Dimensions of shipment (DXSXW) - 62 x 20 x 52 cm
- - shipping weight - 24.3 kg

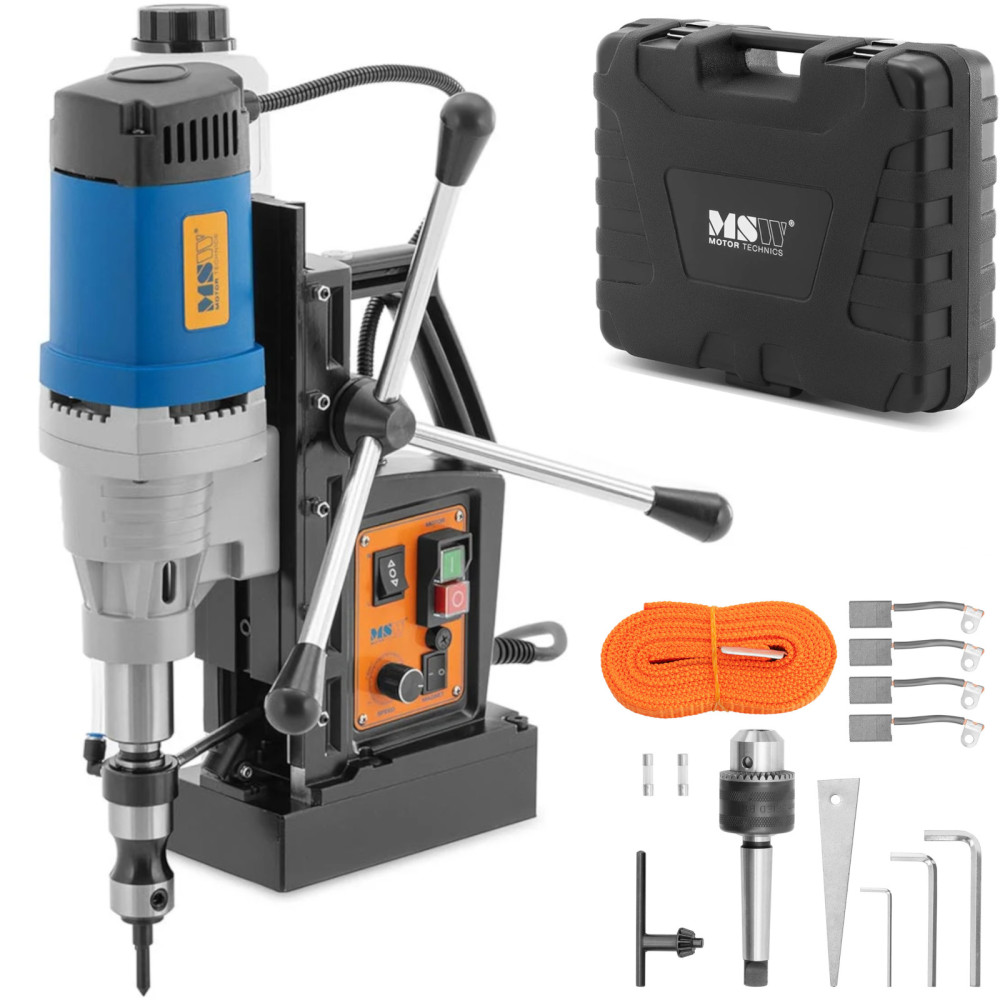

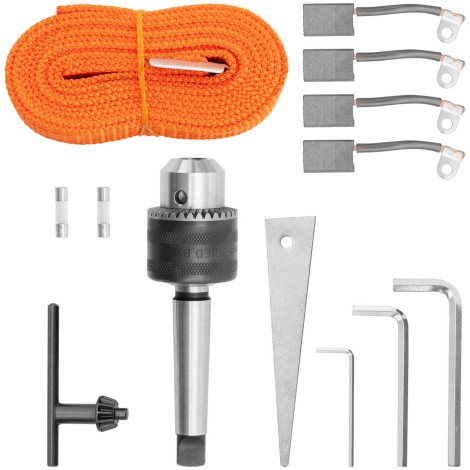

Included: - - Magnetic Drill MSW-MD60-Laser Pro:
- - 3 rotary handles
- - 2 fuses
- - 2 carbon brushes
- - MK3 / Harvest Holder 19 mm
- - KEY TRAINSTRADE HOLDER (B18 / 3 - 16 MM)
- - Drilling handle
- - drive wedge
- - Allen key
- - coolant tank
- - coolant conductor
- - Mounting accessories
- - laser handle
- - Pencil
- - Transport suitcase
