Manufacturer number:

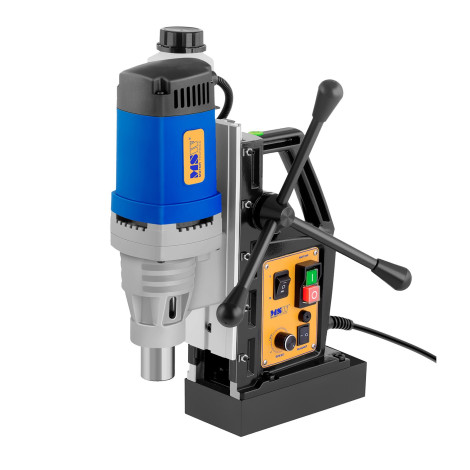

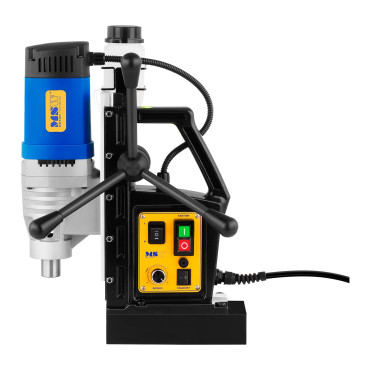

MSW 10060433Magnetic drill MSW Thanks to its design, it will allow you to work in difficult conditions and in different positions, for example, vertically. This is possible thanks
strong electromagnet with a power of 13800 N, which maintains the device in a stable position. Relatively small weight and
Long power cord (
2 m) They affect the possibility of placing drilling in any place.
Efficient operation of the devices ensures
1680 engine enginewhich allows boring at speed to
370 turns per minute. For setting the drilling depth
(up to 50 mm) Three-piece rotary handle. It moves the movable element of the guide equipment in the range
from 0 mm to 165 mm.

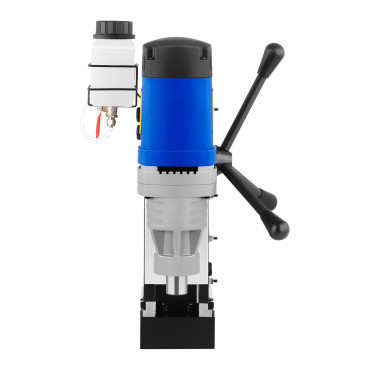

In the drilling drill

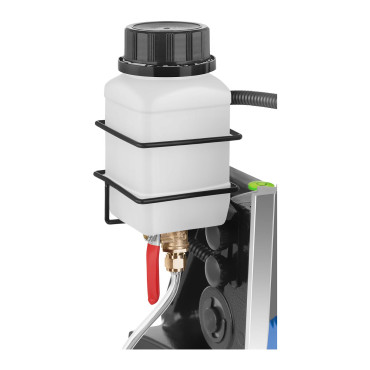

cooling system Used to reduce the temperature of the drill during operation. It consists of a tank
300 ml capacity and tubes
50 cm long. This affects the efficiency during metal processing and extends the lifetime of the drill.

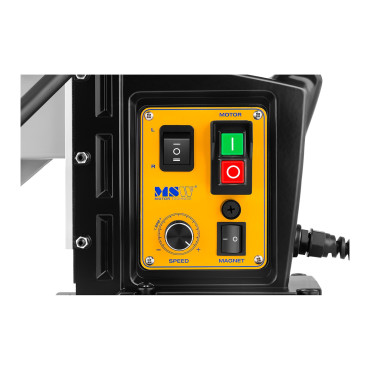

Easy hardware operation is due to
Large buttons Located on one side of the drill. Thanks to them, you can start the engine and electromagnet and select the direction of drilling. There is also there
steless knob For speed regulation. O Right behavior of the angle of the machine. DBA

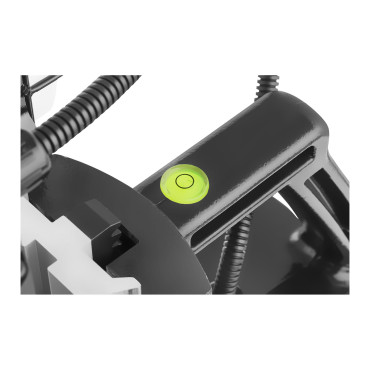

Built-in level.
Safe use is provided by
RCD magnetic switch, protecting against shock and accidental inclusion. Attached to the fuse protect protect the electrical circuit
overload. In addition, a lock was used, which will prevent the drill from starting when the electromagnet is turned off.
Product features: - - Performance - 1680 W motor, drilling speed to 370 rpm,
- - Easy service - readable control panel, convenient drilling depth adjustment, stepless drilling speed setting,
- - Strength - steel and aluminum construction,
- - Safety - Strong electromagnet, RCD switch, fastening belt, blockade against undesirable switching on,
- - Mobility - A small size and weight compared to similar products, a long power cable.
Technical parameters: - - Model - MSW-Md60-eco
- - catalog number - 10060433
- - housing material - Aluminum, steel, plastic
- - frame material - Cast aluminum alloy
- - power - 1680
- - voltage / frequency - 230 V / 50 Hz
- - Coolant tank capacity - 300 ml
- - length of the coolant pipe - 50 cm
- - maximum electromagnetic attraction - 13800 N
- - Maximum thread size of the drill - M25
- - Maximum diameter of the drill - 60 mm
- - Maximum drilling depth - 50 mm
- - Diameter of the winding drill - 28 mm
- - attached drilling handle - B18 / 3-16 mm
- - Maximum speed (no load) - 370 rpm
- - Drill coverage - 0-165 mm
- - Safety bar included - So
- - threading function - So
- - length of the power cord - 2.2 m
- - Dimensions (DXSXW) - 32 x 22 x 56.5 cm
- - weight - 18.3 kg
- - Dimensions of shipment (DXSXW) - 39 x 17.5 x 47 cm
- - shipping weight - 18.9 kg

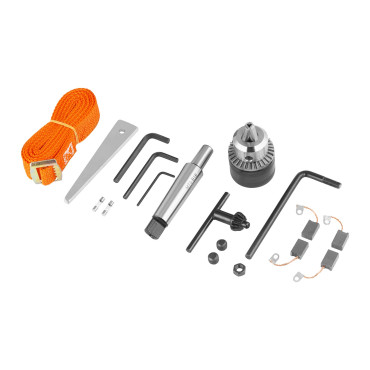

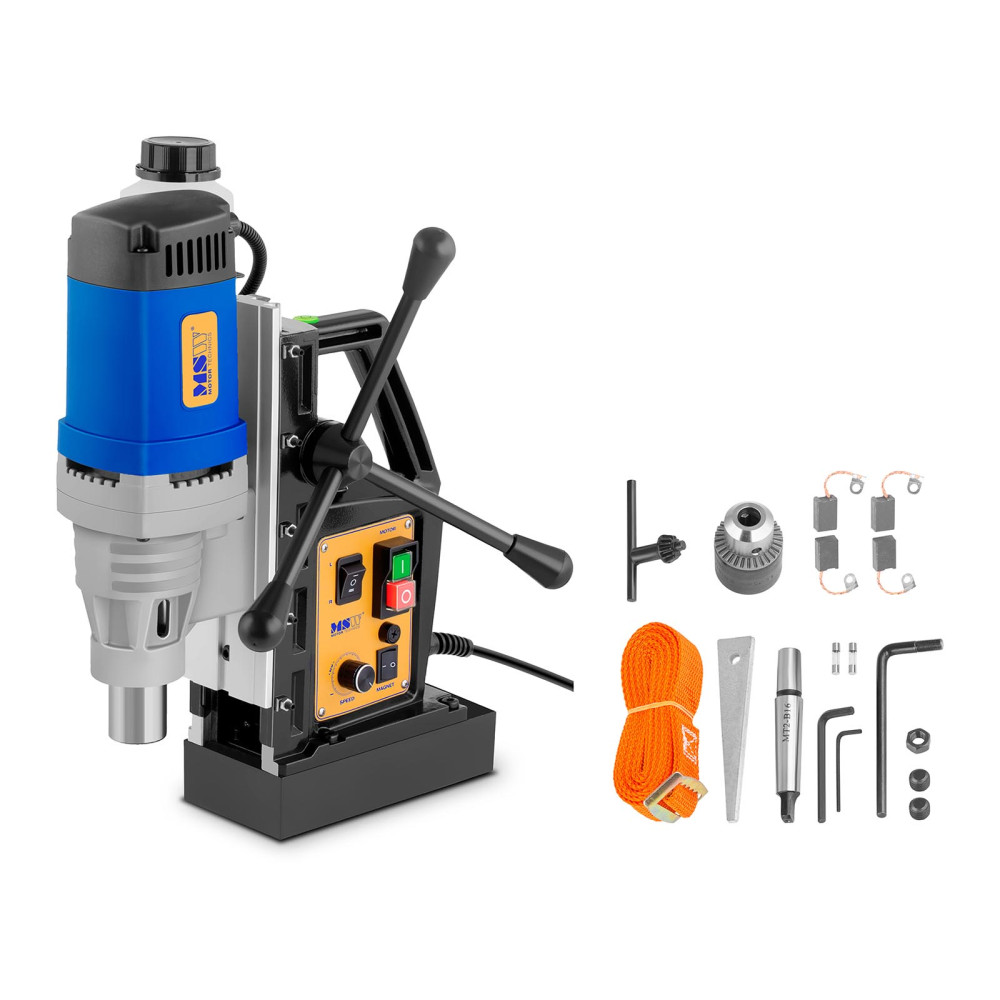

Included: - - Magnetic Drill
- - Security Strap
- - Rotary handle - 3 elements
- - Allen key
- - Fuse - 2 pcs.
- - wedge
- - Cooling tank
- - Drill holder holder
- - Drilling handle (B18 / 3-16 mm)
- - Key to Drill
- - Carbon brush - 2 pcs
- - EN statement
