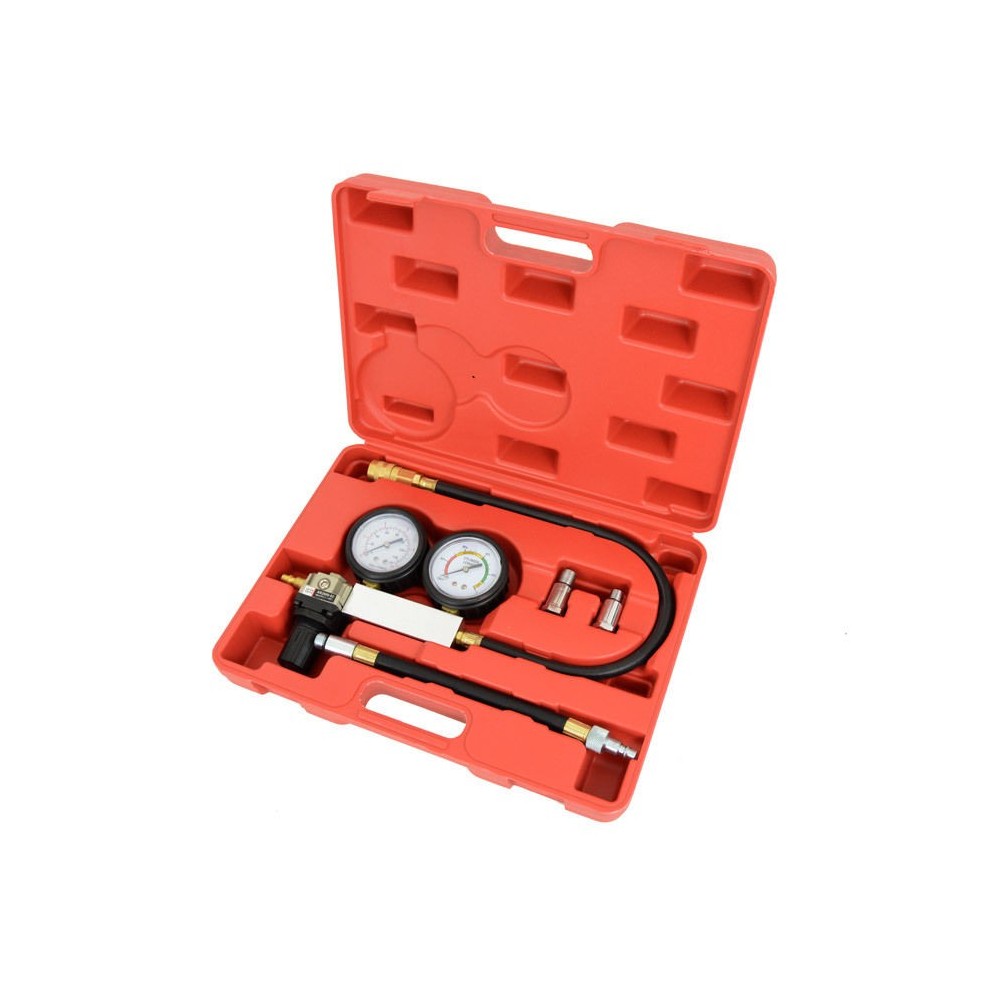

Cylinder tightness tester. Compression meter. Diagnostics. Sampler

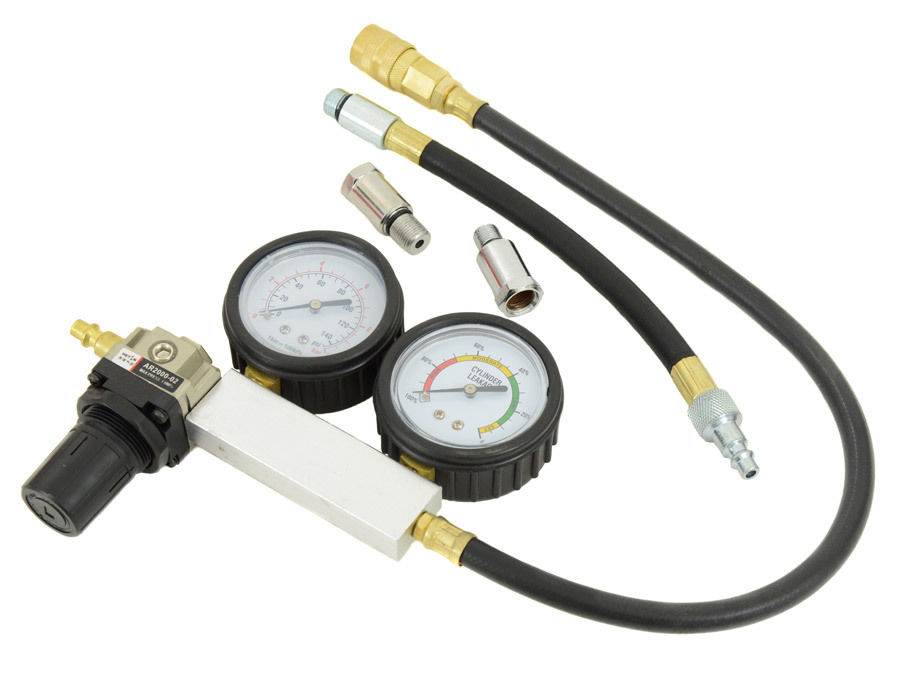

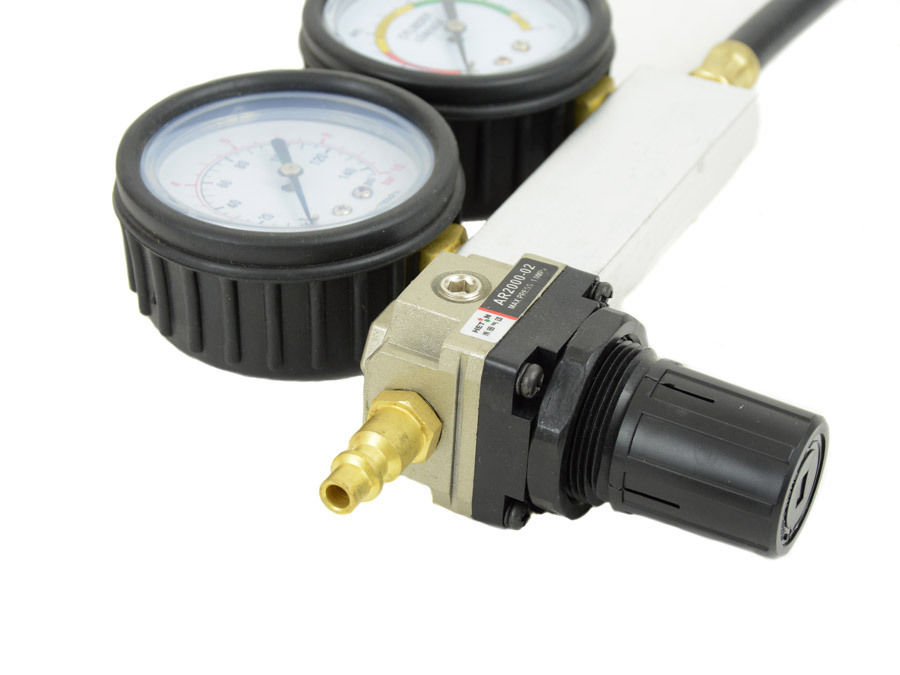

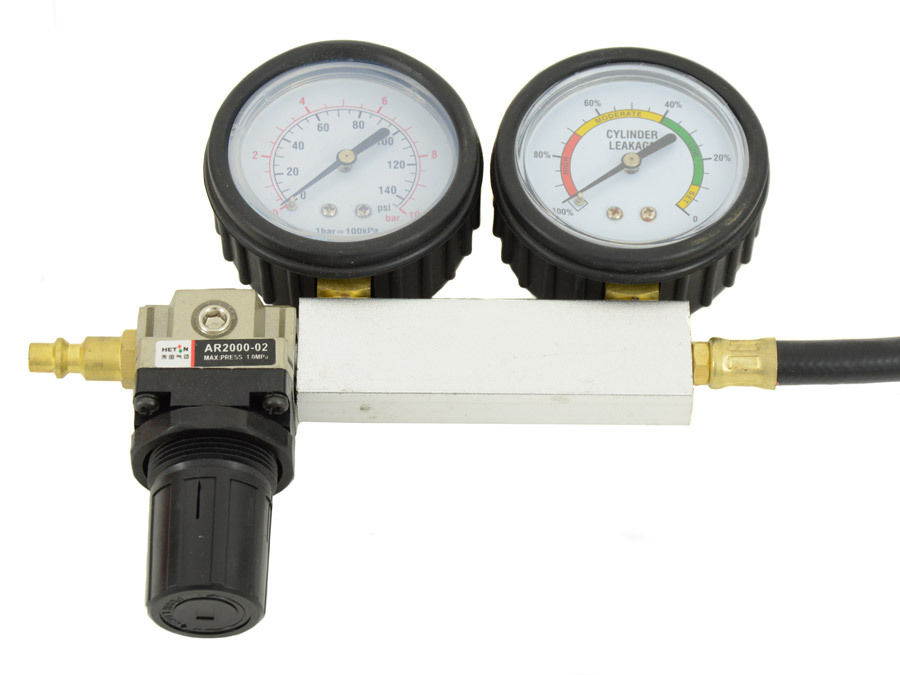

Cylinder tightness tester

Tester for checking the tightness of the cylinders for compressed air in a compact execution. Thanks to it, you can evaluate the condition of the cylinders, diagnose valve damage, a heating gasket or a ring crack on a piston. (Required power pressure 45 to 150 psi). Attached adapters: M14x1.25, M12x1.25. Ideally suited for trucks and old cars.

The study takes place by bringing compressed air and determine the drop in percent. Thanks to the tester, you can detect:

• Piston ring damage
• damage to the suction or exhaust valve,
• Damage to the gasket under the head,

The compression measurement device is used to detect the leaks of the engine cylinders. It is equipped with two detectors for measuring pressure and to measure the pressure loss in percent. Depending on the place of measurement, a leak place can also be diagnosed.

Technical data:

• Pressure: 0 - 10BAR (0 - 145 PSI)
• Graduation: 0.5 bar (bar)
• Genometer cover: rubber
• Weight around: 1 kg
• Purpose: Automotive Service, Diagnostic Stations, Workshops

Catalog number: Sk2127
