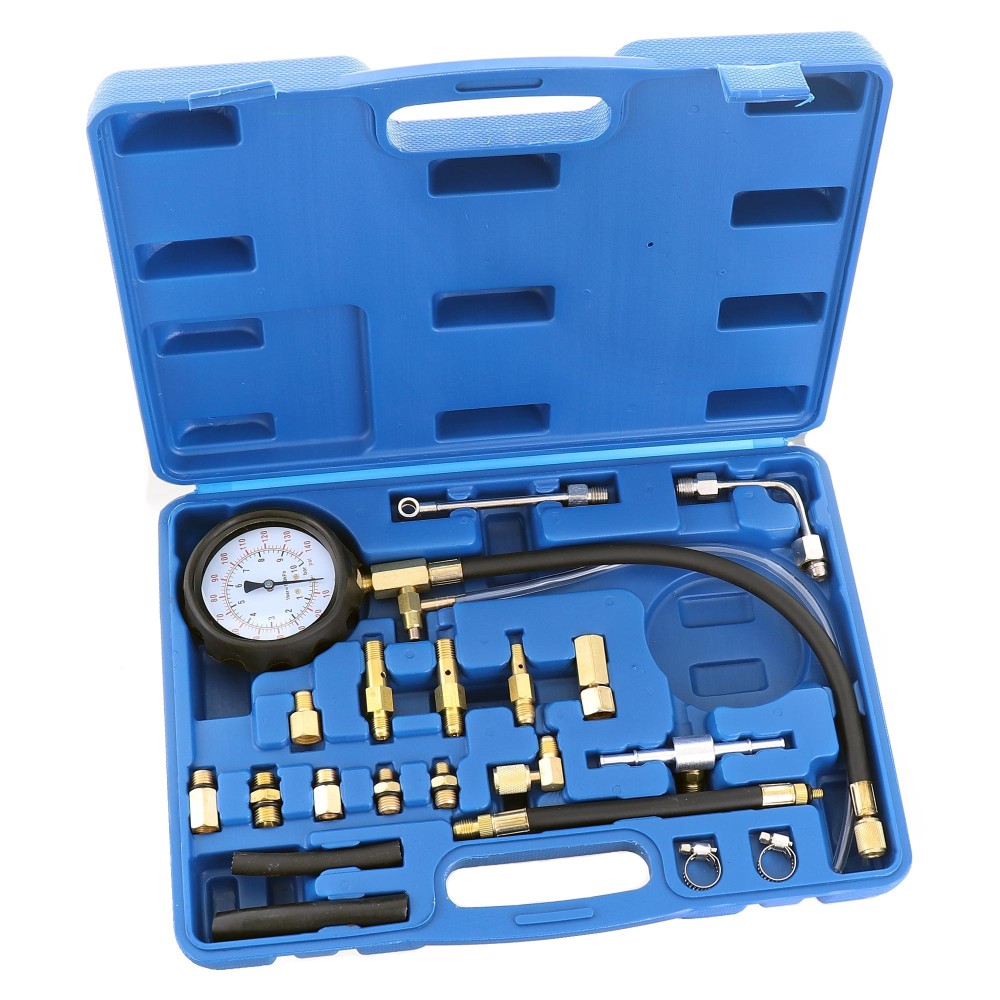

Fuel pressure meter tester - injection gasoline

TESTER Petrol pressure meter - G1014

• Intended for measuring gasoline pressure in fuel systems
• It is scored in units of Bar and Dog
• It applies on automotive services.
• Compatible with the majority of car brands
• After measuring the result is stopped (the tip indicates the measurement). Reset the result occurs by pressing the button on the sampler.

Technical data:

• System fast-connectors
• Pressure: 0-10 bar (0-140 psi)
• The length of the hoses: 40, 20, 8.5 cm

Suitcases:

• Adapter under the wire (with transverse hole) M12X1,5 - 7 / 16-20UNF (Managing manometer)
• Adapter under the wire (with transverse hole) M12x1.25 - 7 / 16-20UNF (Manometer connection)
• Adapter under the wire (with transverse hole) M8x1.0 - 7 / 16-20UNF (Managing manometer)
• M12x1,5 - M12x1,5 adapter
• Adapter M12x1,5 - 7 / 16-20UNF
• M10x1.0 - M12x1,5 adapter
• M14x1,5 - M12x1,5 adapter
• Adapter M8x1.0 - M12X1,5
• M12x1,5 - M8X1.0 adapter
• M12x1,5 - M8X1.0 adapter
• Angle adapter 7 / 16-20UNF WEWN. - 7/16-20Unf External.
• Adapter that allows serial rubber cables with a diameter of 6 and 8 mm
• Two rubber hoses with internal diameter 6 and 8 mm and length 85mm
• Hose with a length of 370 mm long, range of manometer 0-10bar / 0-140 Dog
• Colorless hose with a length of 370mm
• Hose ended with external thread M6 - 7 / 16-20UNF
• Metal cable with a piper with an inner diameter 5mm - M12x1.5
• Metal, angle cable finished with a cap M14x1,5 - M12X1,5
• Two clamping bands
