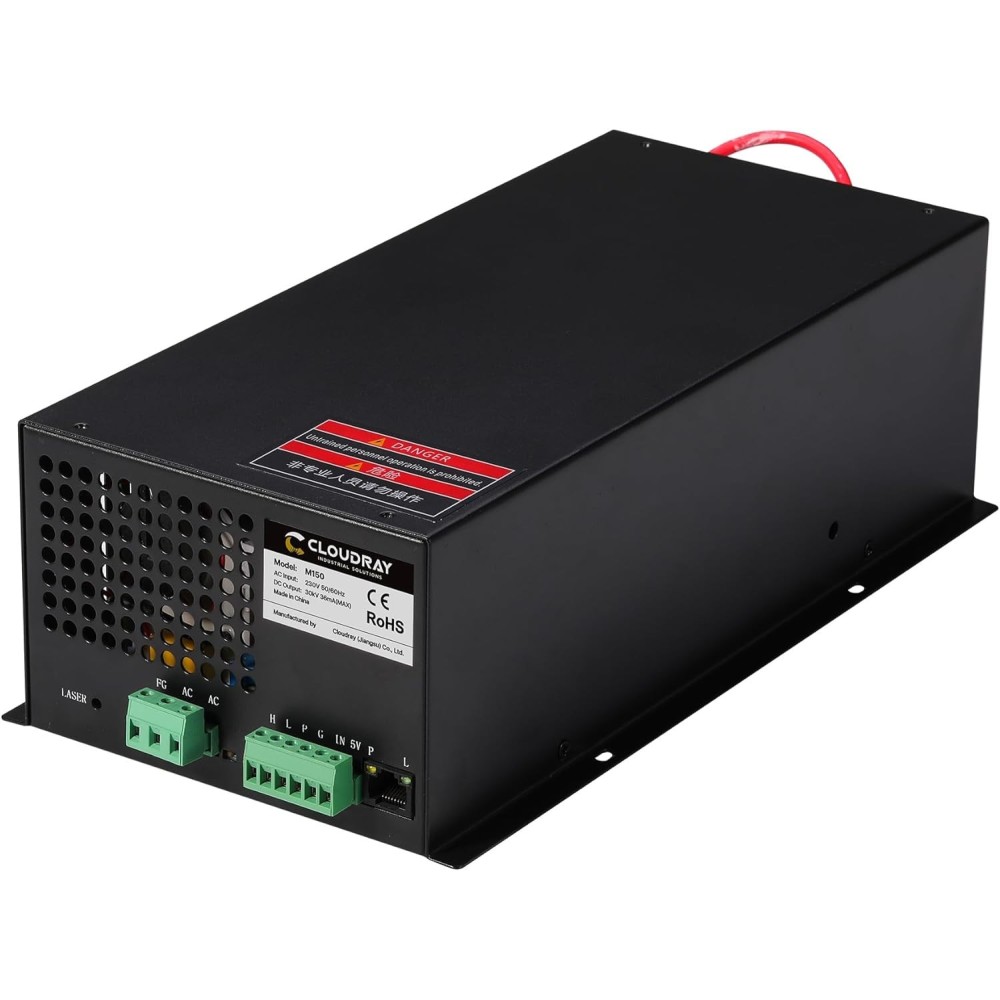

Power block CloudRay MYJG-150W, 220V, for M150 engraving, exhibition

CLOUDRAY 150W power supply for laser pipes

Our CloudRay 150W power supply for laser pipes ensures exceptional compatibility, perfectly working with 130-150W laser pipes from various manufacturers. Thanks to fast reaction and high-performance capabilities, this power supply provides an impressive cutting power while prolonging

Easy control and protection

Experience the easy control of laser operations thanks to the start and TTL stop function. In addition, this power supply has the necessary protections, such as protection against open output circuits, TTL signal indicator, water flow rate and laser output indicator. You will also find a convenient button to manually check the laser output, ensuring peace and smooth operation.

Versatile cut and sculpting

Unlock the potential of your artistic creativity thanks to our power supply, ideal for carving and cutting different materials, such as acrylic, fabric, two-color sheets and rubber. Experience the precision and power needed to incarnate their artistic vision in life easily and certainly.

External ammeter and monitoring

Our CO2 power supply is equipped with an external ammeter with an LCD screen, which allows real-time monitoring of processing current and information status. The LCD screen has been designed with a potentiometer for precise current adjustment as needed.

Use

This power supply has been designed to stand out in a wide range of applications, from complicated sculptures after detailed cutting on acrylic, fabric, two-color sheets and rubbers. It brings versatility and efficiency to your artistic projects. Use the possibilities and lift your craft for a new level.

Specifications:

• Input voltage: AC230V
• Frequency AC: 47 ~ 440Hz
• Maximum output voltage: 34 kV
• Maximum output current: 38 MA
• Dimensions: 305 * 161 * 91 mm
• Weight: 3.6 kg
• Fitness: 91%
• MTBF (average time between failures): ≥ 30000 hours
• Response speed: ≤ 1 MS
• High level: ≥ 3V
• Low level: ≤ 0.7V
• Work environment: -30 ° ~ + 65 °
• Cooling: Cooling forced air (fan)
• High temperature test: Full load / 60 ℃ / 12 hours
• Start / stop test: 500 times, 7 seconds. Each one

Power supply 150 W

Call diagram

The interface of various power supplies can be different if your old power supply comes from the CloudRay laser, select our power supply for the first time, pay attention to the connection diagram.

Fastening suggestions

The power supply must be compatible with the power of the laser lamp. If you choose a 150 W laser power adapter, you can adjust our CO2 lamp

• CR130 ASIN B087G5PXLW
• CR150 ASIN B087G3XJZB

External ammeter

When the switch is in the left position, the current adjustment knob does not work. The output power is determined only by entering the 6-pin terminal (green).

When the switch is in the correct position, the current adjustment knob works. The output power is determined by both the adjustment knob and input with a 6-pin tip (green).

This switch is by default in the left position
