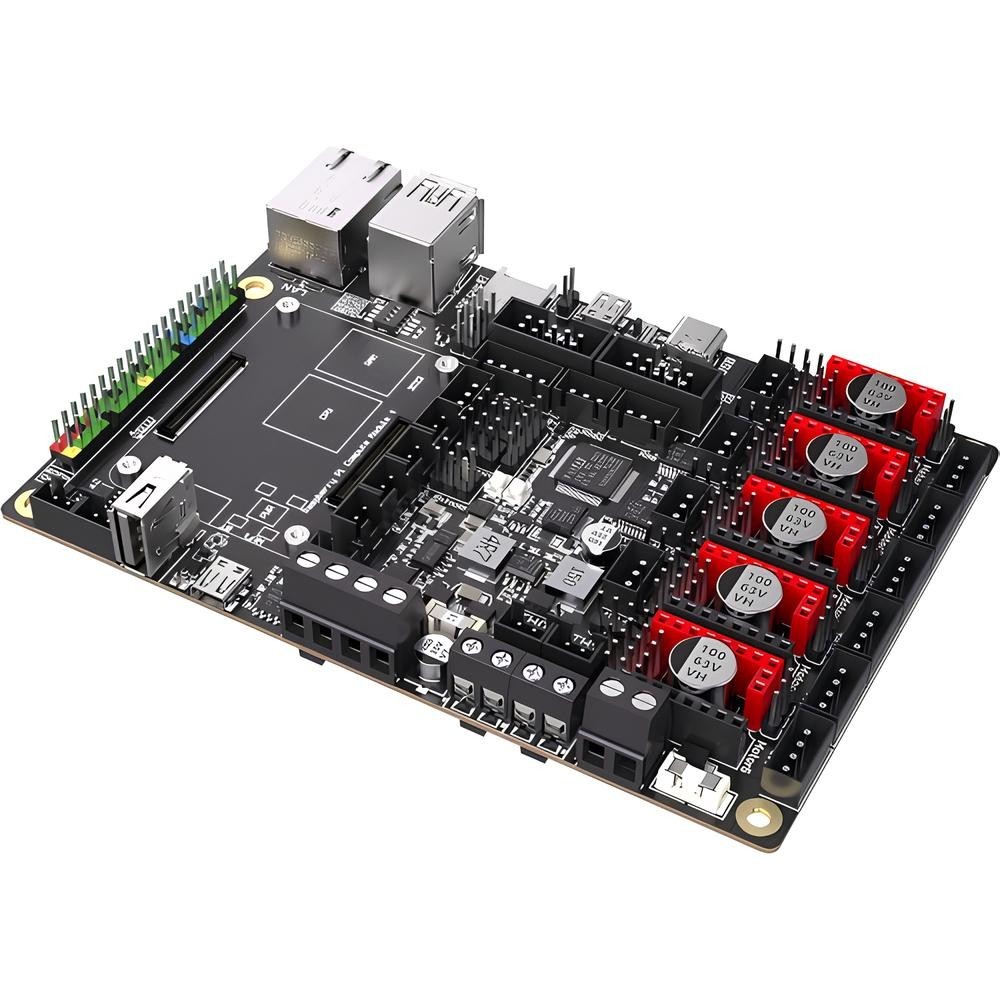

3D Bigtreetech Manta M5P V1.0 printer control plate does not work

Note !!! The product does not work !!!

The BTT MANTA M5P V1.0 control plate is a real technological predator designed for 3D print enthusiasts who want to transfer their projects to a higher level. This device has been designed specifically for the clipper hardware software, enabling significant increase in speed and 3D print quality while ensuring stability and reliability.

Key features:

1. Processor: Arm Cortex-M0 + STM32G0B1RET6, 32-bit 64 MHz frequencies, provides stable and fast data processing.
2. Power: Supports input voltages from 12 V to 24 V, so that this disc is versatile in different configurations.
3. Interfaces and connections:

• Drivers: Supports a wide range of drivers, including TMC2209, TMC5160 and many more to provide a quiet and efficient engine operation.
• Fan ports: the possibility of choosing a fan voltage (5 V, 12 V, 24 V) with support for three fans, including a fan that is always on to cool the processor.
• Expansion: The plate has extended ports to connect modules, such as Bltouch, RGB backlight, flange end sensors and supports the CAN bus to connect additional modules.

Features:

• Efuse Protection: The built-in Efuse protection ensures a quick shutdown in the case of overload and automatic restart after eliminating overload. This significantly reduces the risk of damage to the plate due to short circuits or overloads.
• Direct connection from Raspberry Pi CM4: thanks to special BTB connectors, Manta M5P makes a direct connection to Raspberry Pi CM4 or CB1, which simplifies integration and reduces the number of cables.

Advantages:

• High stability and reliability: Thanks to thought-out design and high-quality components, the MANTA M5P plate provides uninterrupted work even in the most demanding environments.
• Flexibility in use: a wide range of supported drivers and modules allows you to adjust the system to your needs.
• Clipper support: The disc is optimized for use with clipper firmware, which ensures high printing speed and better print quality.
