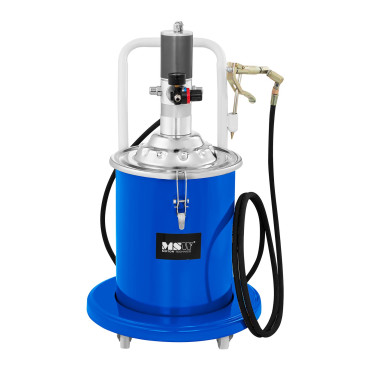

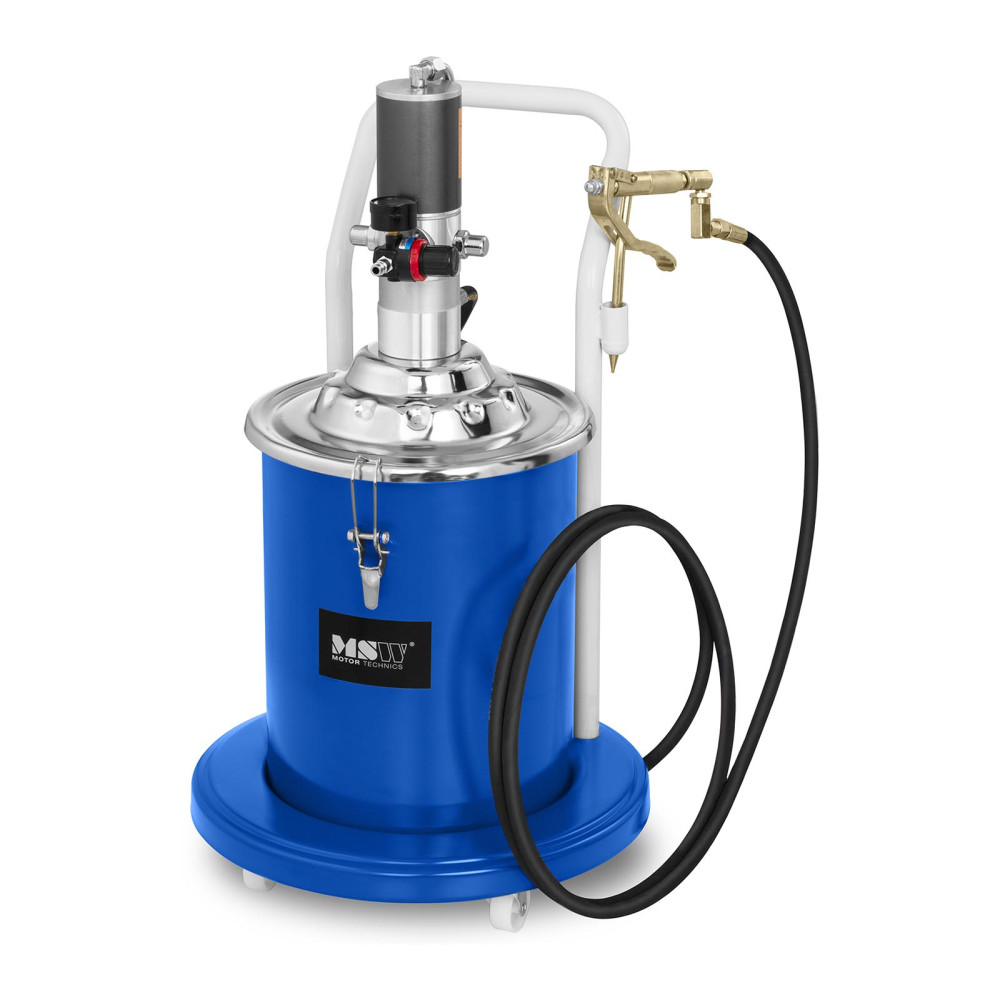

Lubricator. Pneumatic guide for machines Pro 50: 1 20 l set

Manufacturer number: MSW PRO-G 20
Pneumatic lubricator for brand machines MSW This device designed for car workshops, agriculture and industry. It allows self-irradiation of machines and devices equipped with a kalamitek lubrication systems. A simple and stable construction ensures comfortable work, and the execution of high-quality materials reliability.

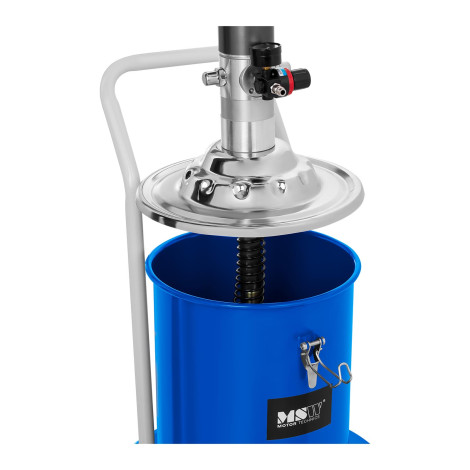

The PRO-G 20 model has been Equipped with a twenty-line grease container, which eliminates the need for frequent filling of the tank. In addition, thanks to the use of a injector that uses small amounts of compressed air as a drive and a pneumatic pump pressing the grease the device is able to offer Very high oil output pressure (300-400 bar).
The comfort of working with the device correspond to Four wheels, ergonomic handle and long transmission hose (4 m). This set, along with a small weight of lubricators, allows you to maneuver the device even on an uneven surface and a convenient work in almost all conditions and without the need to participate another person.
 Product features:

• - Performance - oil pressure within 300-400 bar,
• - Convenience - 20-liter grease container and long transmission hose (4 m)
• - Mobility - A small weight, four wheels and an ergonomic handle,
• - Strength - made of high strength materials.

Technical parameters:

• - Model - PRO-G 20
• - catalog number - 10060840
• - article - New
• - tank volume - 20 l
• - output pressure - 300-400 bar
• - Working pressure - 6-8 bar
• - Lubricity pump throughput - 0.85 l / min
• - Compression degree - 50: 1

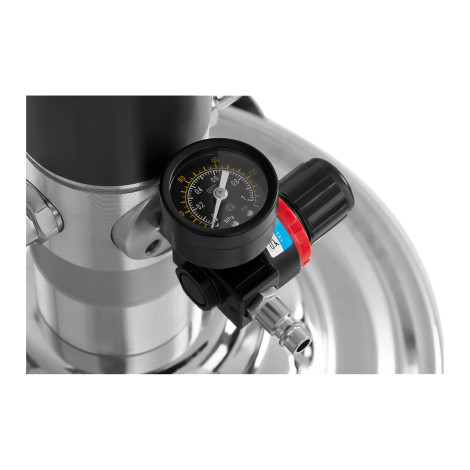

• - Manometer - So
• - Double-scale indicator - Yes, bar / psi
• - values on the indicator - From 0 to 150 psi / from 0 to 1 MPa
• - length of the transmission hose - 4 m
• - Dimensions (DXSXW) - 50 x 41 x 77 cm
• - weight - 13 kg
• - Dimensions of shipment (DXSXW) - 47 x 47 x 84 cm
• - shipping weight - 15.7 kg

Included:

• - Trigger for the dispensing gun
• - pistol nozzle

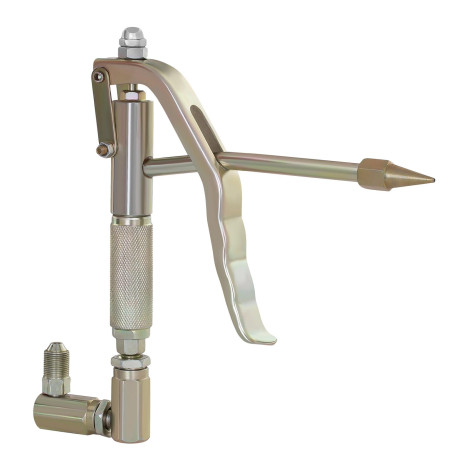

• - Dosing pistol
• - Transmission hose with 4 m long
• - Pump
• - Manometer and air supply connection
• - handle
• - fitting
• - lubricant container
• - Base of the device
• - Wheels - 4 pcs.
• - Air filter
• - Snake connection
• - shield
• - EN statement
