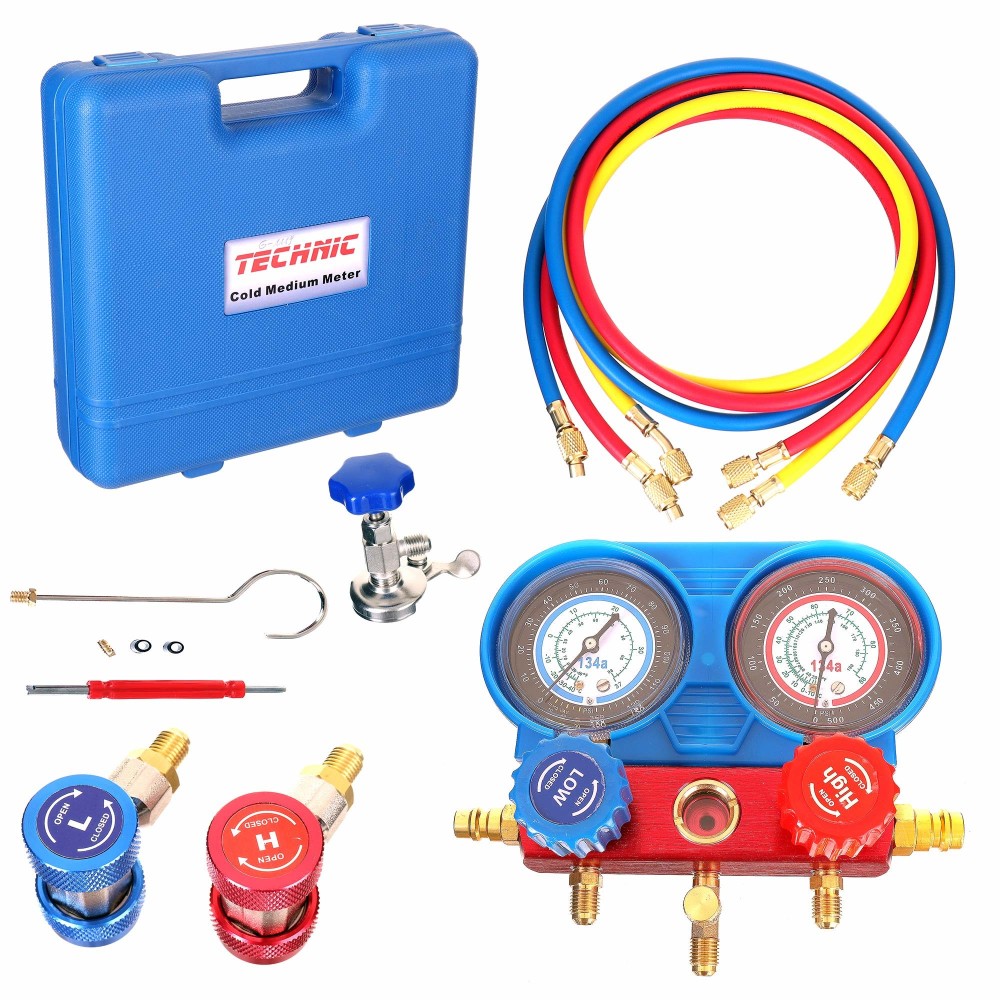

DN-G1119 air conditioning tester with speed. Suitcase Factor R134a

Air conditioning tester G1119 A set of manometers for automotive and stationary air conditioning on R134a, along with three color hoses with a length of 140cm and fast-connectors for car air conditioning.

The tester allows you to diagnose the potential fault of air conditioners by comparing the pressure of the high-pressure side and the pressure of the low-pressure side with the specification of the air conditioning system. AIR CONDITIONER TESTER, thanks to the yellow service wire, will also be used when emptying and filling air conditioning systems.

The air conditioning meter is used in supporting air conditioning systems, where the air conditioning wires are more than 12 atmospheres.

Equipment:

• A two-clock block with a sight glass
• Two ball valves
• Two manometers with a scale
• Three snakes

Technical data:

• A scale of a blue manometer: -40 to 37 oC (0 - 350 psi, in HG VAC 30-0)
• Scale of the red manometer: -10 to 88 oC (0-500 psi)
• Factors scale: R-134A,
• Purpose: service, filling and emptying stationary and car air conditioning.
• Hose length: 140cm
• V Vintage: 0 ~ 30 In / HG
