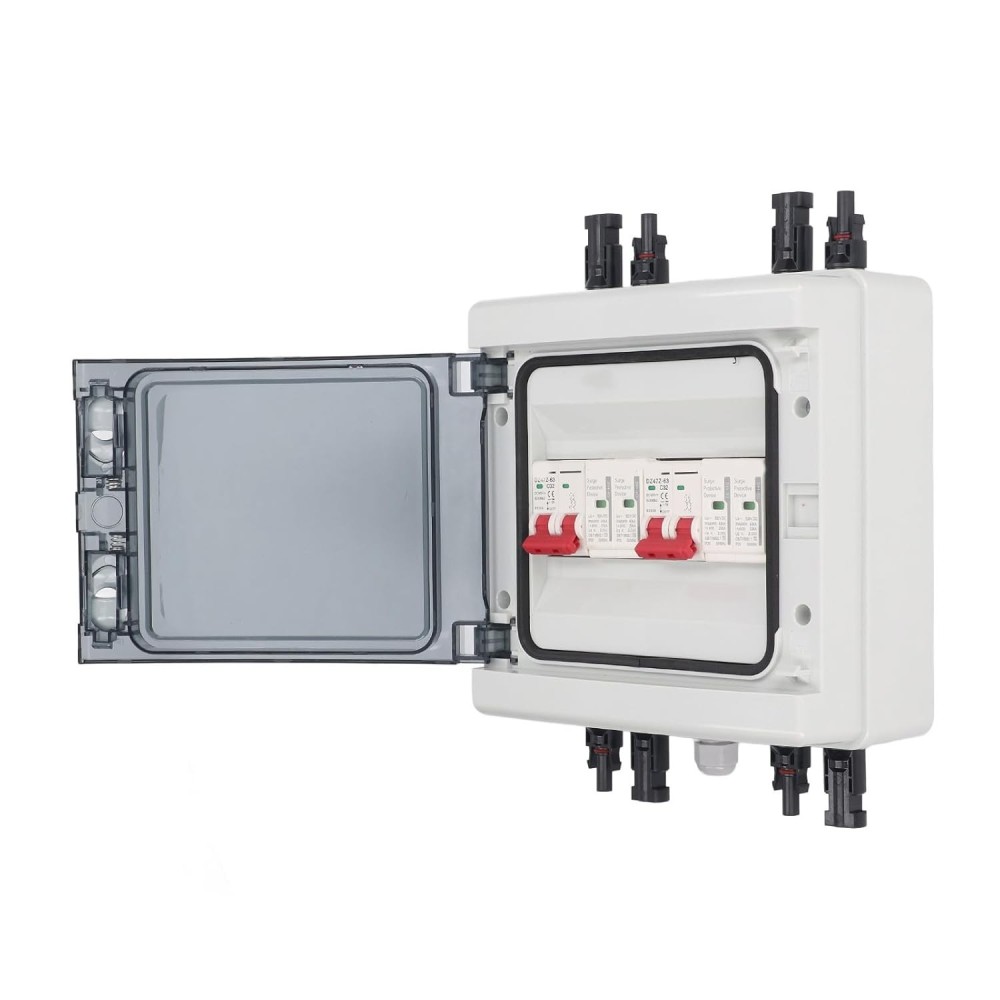

SEAFRONT, 2P 32A PV, IP65 automatic switch, Junction box

Surgeon box: made of fireproof plastic PC, solid and durable, waterproof and dustproof IP65, resistant to UV radiation, very safe and reliable.

Transparent window: A solid box is easy to assemble, and the transparent cover can check the state of the main switch and lightning protection. When the lightning light changes to red, it means that a lightning impact has been made and replace the lightning lightning module immediately.

Surge protection: DC 500 V 20-40 ka 2P, using standard lightning protection systems, silver contact, PC enclosure with reduced flammability IP65, a sufficient number of copper coils, thanks to which it is more suitable for production Components working in difficult conditions.

Easy installation: You can use solar connectors that can be connected faster and secure to solar panels, connect and use. You can also wire directly through waterproof connectors and terminals.

Wide application: Suitable for photovoltaic systems connected to the solar panel network and photovoltaic systems outside the network, solar energy production systems. Photovoltaic system, Solar Energy RV.

Spec:

• Type of article: Photovoltaic switch
• Material: Sumpful PC, Silver, Copper.
• Water resistance class: IP65
• Automatic switch DZ47Z-63
• Nominal current: 32a
• Rated voltage: DC500V
• ICU: 6KA
• Surge protection: SH-40
• IN: 20KA
• Imax: 40KA
• UC: DC500V
• Up: ≤ 2kv

How to use:

• Use the diagram in accordance with the wiring.

Packing list:

• 1 x PV switch
• 4 x screw
• 4 x wall plug
• 8 x connector (4 pcs. Male connector, 4 pcs. Female connector)
• 8 x connector core
• 1 x key to a photovoltaic cable
