Manufacturer's code:

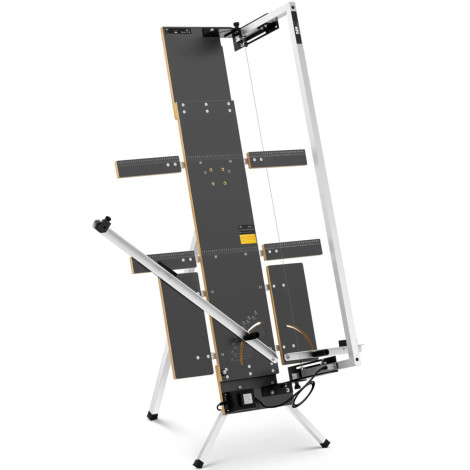

10062735Machine for cutting brand styrofoam MSW This is a device for machining such as styrofoam, styrodur or polystyrene with hot wire. It will work on the renovation and renovations of medium and large buildings. Allows cutting with millimeter precision. The device easily crosses even large boards with a length
up to 1300 mm and depth up to 330 mm. Side brackets prevent heavy insulating boards.
Feet They allow you to quickly set the machine by the wall or on the scaffolding. Working with the device is very simple. Just press the button and thanks to the power transformer
200w The razor will be ready for use in a few seconds. During cutting, the hot wire moves effortlessly along the rail lead through the insulating material. Thanks to this, simple,
Smooth and clean edges without burrow. Guides, scale and adjustable depth allow you to achieve millimeter accuracy. Transformer with a degree of protection
Ip68 There are waterproof. Thanks to a solid aluminum structure and coated plate, the machine is very light. Guillotine can easily be installed on the table. In the set there is
Five cutting wires Made of nickel-chrome-copper alloy. This special material is ideal for insulation processing, because it is not only particularly insensitive to corrosion, but also characterized by resistance to high temperatures. Only when the wire warms up, the edges of the styrofoam with the feet, which allows you to get precise and smooth cuts.
Product features: - - a styrofoam cutting machine for easy treatment with pure edges to a length of 1300 mm and a depth of 330 mm,
- - precision thanks to guides, scale and adjustable cutting depth,
- - resistance to weather conditions, IP68 protection degree,
- - narrow design and low weight allow for easy transport,
- - in a guillotine set, five cutting wires made of high quality nickel-copper-chromium alloy,
- - Side brackets prevent the sliding of large styrofoam plates from sliding down, and the stand allows you to easily set the machine.
Technical parameters: - - catalog number - 10062735
- - article - New
- - Model - MSW-Isu-Hgil 7
- - Material - Aluminum, Coated plate, Nickel-copper-chrome stop
- - Color - Silver metallic
- - angles [deg ] - 0-85
- - Transformer - 40 V / 200 W
- - Depth of cutting [mm] - 330
- - Protection class - Water resistance to IP68 with thermal fuse
- - power supply [V] - 230 V - 50/60 Hz
- - Maximum cut length - 1300 mm
- - Dimensions (DXSXW) - 145 x 155.5 x 183 cm
- - weight - 18.71 kg
- - Dimensions of shipment (DXSXW) - 171 x 45.3 x 16 cm
- - shipping weight - 22.29 kg
Included: - - Styrofoam cutting machine
- - 5 cutting wires
