Manufacturer's code:

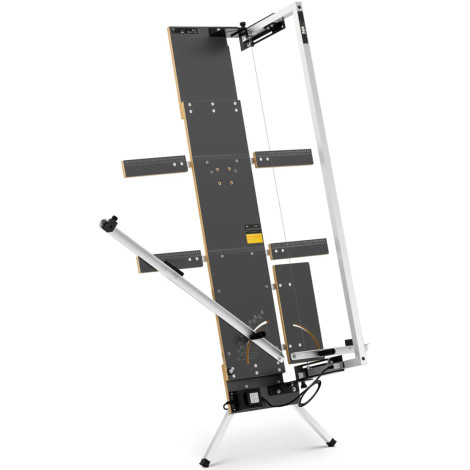

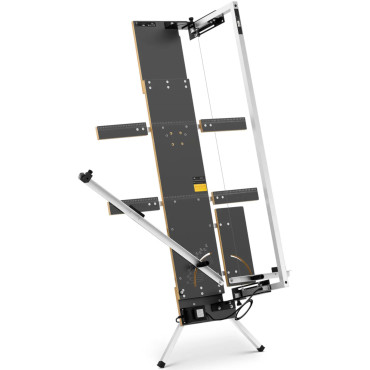

10062732Machine for cutting brand styrofoam MSW This optimal insulation machine is used by a hot wire that can be used for medium-sized renovations and large buildings. The model was developed for cutting of polystyrene, styrodur or polystyrene with millimeter precision.
With the help of an apparatus, you can easily cut even large boards up to 1300 mm and a depth of up to 330 mm. Side bracket preventing the sliding of large insulating plates. Work, even continuous, with a cutter is extremely simple.
Just press the button and thanks to the 200 transformer in the machine in the machine it will be ready for use in a few seconds. During cutting, the hot wire will move without effort along the rail guide through the insulating material. Thanks to this, you can get simple, smooth and clean edges without burrs. Guides, scale and adjustable depth will allow to reach millimeter accuracy.
The transformer with the degree of IP68 protection is waterproof. So it's not a shame or rain or moisture. Thanks to a solid design made of aluminum and coated plate, the machine is very light. Guillotine is easily installed on the table.
Resistant to weather conditions, easy to transport and configuration, the device is also ideal for mobile use on construction sites. The set also includes five cutting wires made from a nickel-chrome-copper alloy. This special material is ideal for processing of insulation, because it is insensitive to corrosion, but also characterized by resistance to high temperatures. Only when the wire warms up, the edges of the styrofoam with the feet, which allows you to get precise and smooth cuts.
Product features: - - a styrofoam cutting machine for easy treatment with pure edges to a length of 1300 mm and a depth of 330 mm,
- - thanks to guides, scale and adjustable cutting depth with a styrofoam cutter, accurate results can be obtained,
- - a styrofoam cutting device with an IP68 protection degree will result in adverse weather conditions,
- - thanks to a narrow construction and low weight, the styrofoam cutting device is easily transported,
- - in addition to the styrofoam guillotines, there are five cutting wires made of high quality nickel-copper-chrome alloy,
- - Side bracket preventing the sliding of large styrofoam plates.
Technical parameters: - - catalog number - 10062732
- - article - New
- - Material - Aluminum, Coated plate, Nickel-copper-chrome stop
- - Color - Silver metallic
- - angles [deg ] - 0-85
- - Transformer - 40 V / 200 W
- - Depth of cutting [mm] - 330
- - Protection class - Water resistance to IP68 with thermal fuse
- - power supply [V] - 230 V - 50/60 Hz
- - Maximum cut length - 1300 mm
- - Dimensions (DXSXW) - 80 x 145 x 184 cm
- - weight - 17.6 kg
- - Dimensions of shipment (DXSXW) - 45.2 x 170.5 x 16 cm
- - shipping weight - 20.55 kg

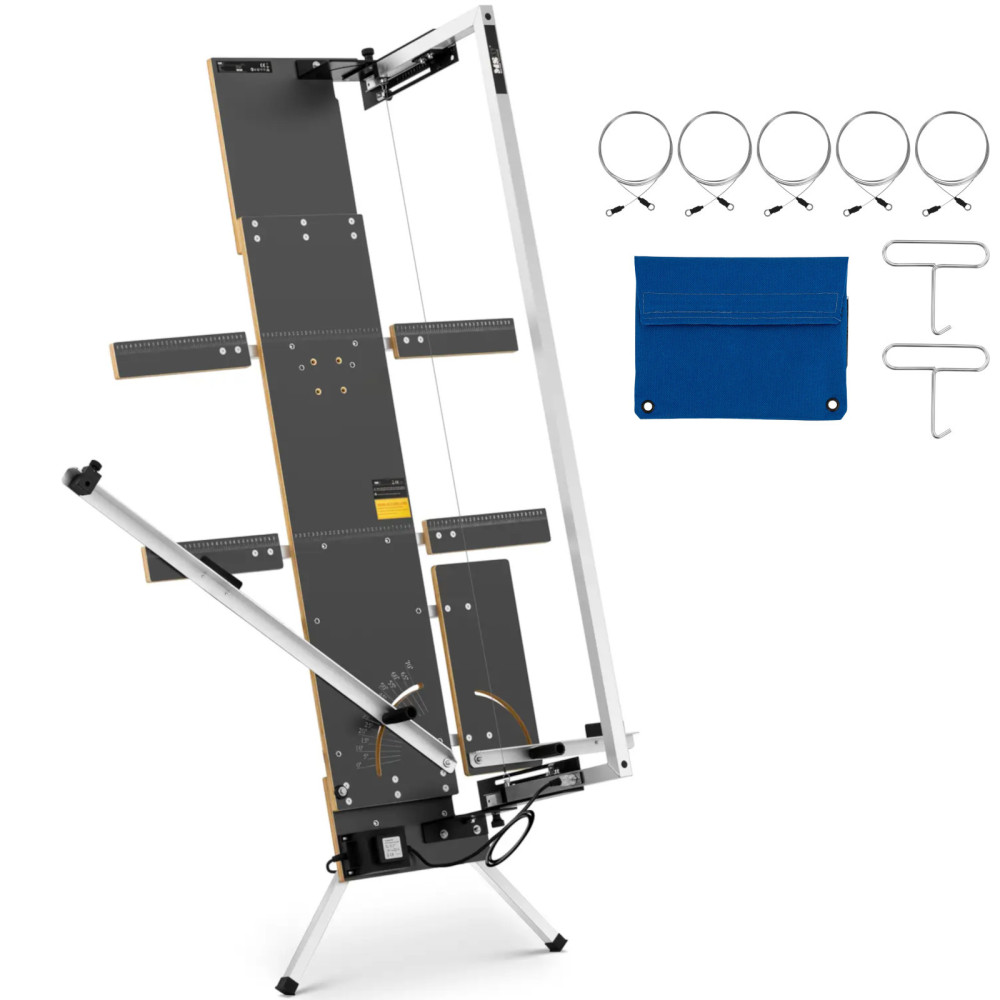

Included: - - Styrofoam cutting machine
- - 5 cutting wires
