Welding machine Migomat with a plasma cutter Tron 200 TIG MIG / MAG 200A Plasma 50A 230V

Manufacturer's code: 10021430
Stamos multifunction welder Welbach Allows you to weld a technique MIG / MAG, TIG, or MMA. The machine with a modern IGBT inverter also works as a plasma cutter. Work parameters are set on a transparent, digital panel with two LED screens. It allows you to determine the technique, welding current and time before the gas flow and after it. The panel will also allow you to select pre-set parameters that will achieve the best results. The device has a synergy function in which after changing one welding parameter, the others are adjusted accordingly. For welding method MiG / mag Spools with a diameter are used up to 200 mmto ensure a long working time. The feeder is intended for wires with a diameter 0.8 - 1.2 mm. Speed is adjustable in the range 2-15 m / min. The multifunction welder allows welding method TIG DC and getting high-quality welds in different positions. Thanks to the high-frequency evaporation from the very beginning, a stable arc and weld with high power is obtained up to 200 a. Welding current set below 110 It allows you to work without interruptions. For processing thin sheets from 0.5 mm, turn on Pulse function And connect almost all alumid metals, such as steel, stainless steel, copper or nickel. Elements can be combined in different positions, whether it vertically, horizontally or over. The plasma burner easily completely metals up to 15 mm thick at a maximum current of 50 A. Plasma bow is generated by compressed air. It cools the burner during cutting and leaves a clean edge. As in the case of welding methods in a gas shield, there are also a 2-tea or 4-tea mode. The pilot arch is washed with high frequency. Even without gas when welding electrodes. Welding the wrapped electrode (MMA) allows you to work outside and with strong wind. The method works without additional gas. The multifunction welder provides a very stable current - ideal for good results. VDR function Provides greater safety during MMA welding, especially in a humid environment. Hot start function It gets an increased welding current for a short time after starting work. In this way, it is stable and clean.
Product features:

• - Plasma cutting function and MIG / MAG / MAG, TIG and MMA methods,
• - legible, digital control panel with 2 LED displays,
• - optimal welding results thanks to pre-set programs and synergy functions,
• - current up to 200 A to 5 mm welding thickness and metal cutting up to 15 mm at 50 A current,
• - Welding an electrode with VRD and Hot Start functions.

Technical parameters:

• - catalog number - 10021430
• - article - New
• - Model - Tron 200 one
• - Material - Stainless steel, aluminum, carbon steel
• - compliance with the standard - En60974-1
• - Air operating pressure [bar] - 4 - 5
• - Cooling - Fan
• - Air consumption [l/min] - 80-160
• - Cycle of work [%] - Cutting / MIG / TIG: 30 MMA: 20
• - cutting current [A] - 15-50
• - Cooling the burner - Gas
• - Color - White
• - efficiency [%] - 80
• - MMA electrode diameter [mm] - 1.6-3.2
• - electrode diameter (TIG) [mm] - 1.6 - 3.2
• - entrance power [kVA] - 9,6
• - housing material - Spcc
• - grounding wire [m] - 3
• - Insulation class - F
• - Hot Start - So
• - IEC protective class - Ip21s
• - Maximum cutting thickness [mm] - 15
• - Maximum entrance current [A] - Cutting: 38 MMA: 32 TIG: 28 MIG: 37
• - Maximum entrance current [A] - Cutting: 8.6 MMA: 9.6 TIG: 6.2 MIG: 8.2
• - TIG sterile voltage [V] - 62
• - MIG / MAG cable [m] - 3
• - Minimal welding current [A] - MIG: 40
• - Power cord [m] - 2
• - Power factor - 0,73
• - Maximum welded thickness [mm] - 0.5 - 5
• - maximum welding current [A] - MIG: 200
• - Rated entrance current [A] - Cutting: 21 MMA: 18 TIG: 15 MIG: 20
• - Plasma cable [m] - 5
• - Think of the idle of CUT [V] - 280
• - ignition TIG - Hf
• - Tension [V] - 230
• - MMA cable [m] - 3
• - MMA welding current [A] - 30-160
• - ignition Plasma - Hf
• - MMA idling voltage [V] - 62
• - TIG welding current [A] - 10-200
• - wire speed [m/min] - 2-15
• - Welding current at 100% of the work cycle [A] - Cutting: 27 MMA: 88 TIG: 110 MIG: 110
• - Welding current at 60% of the cycle of work [A] - Cutting: 35 MMA: 114 TIG: 142 MIG: 142
• - wire diameter [mm] - 0.8 / 1.0 / 1.2
• - TIG cable [m] - 4
• - Cycle of work [%] - 60
• - Dimensions (DXSXW) - 54 x 23 x 41 cm
• - weight - 26.1 kg
• - Dimensions of shipment (DXSXW) - 65 x 50 x 33 cm
• - shipping weight - 28.2 kg

Included:

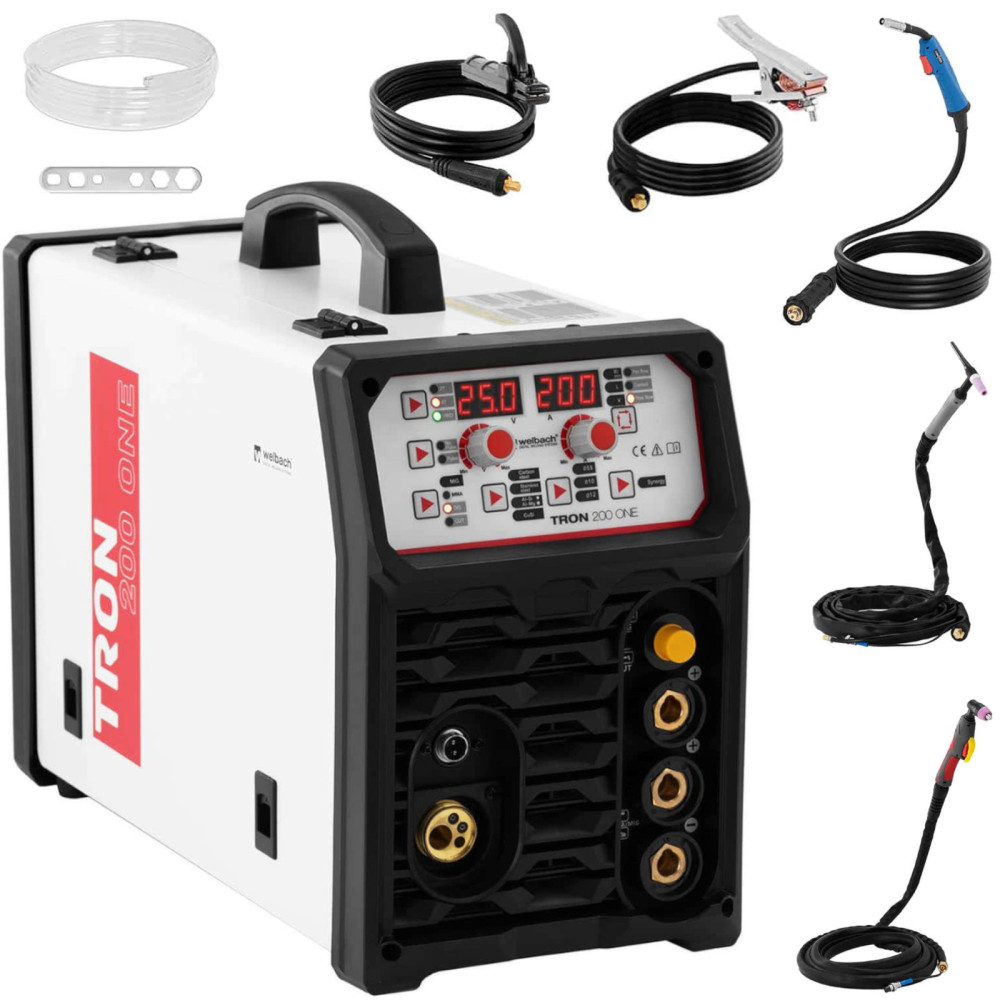

• - Multifunctional Tron 200 One Welding machine
• - SG-55 plasma burner with a wire (5 m)
• - MIG 15ak burner with wires (3 m)
• - TIG WP26 burner with wires (4 m)
• - electrode handle with a wire (3 m)
• - Earthing clamp with a wire (3 m)
• - Gas cable (4 m)
• - User manual
