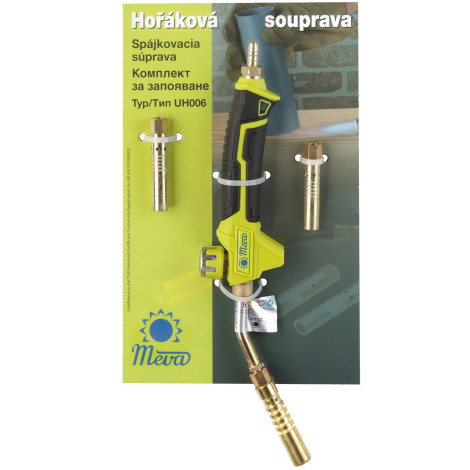

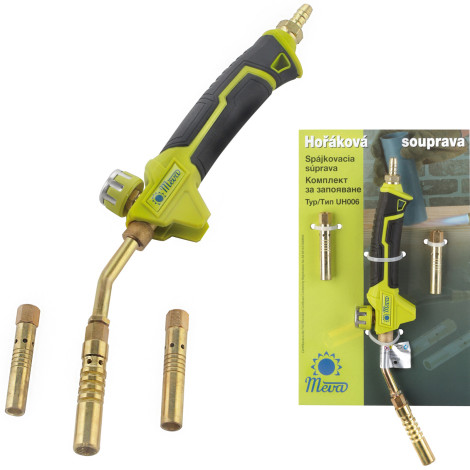

Gas burner for tin soldering. LPG Hard Feb LPG set 3 nozzles 1.4 - 2.1 kW

€28.14
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Product code: 1010659

High quality product Czech leader in the production of the company's gas equipment and accessories MEVA Existing from 1898. Extremely Durable and effective gas burner for hard-boiled and soft. It will also work when heating different materials or removal of paints. The burner can be powered by G30 gas, propane-butane from the standard LPG cylinder. The gas supply hose is mounted using clamping bands. Solder burner with a power of 2.1 kW It is equipped with a convenient handle with a knob used to adjust the gas flow.
Features and functions of the construction of a gas burner:
  • - high power effectively warms or suppress the material,
  • - a smoothly adjustable flame,
  • - Easy and economical to use
  • - The contoured handle and a small weight increase the comfort of work.

Technical parameters:
  • - Fuel source: 2 or 10 kg LPG cylinder
  • - Fuel: G30 (propane, butane or mixtures thereof)
  • - Recommended working pressure of burners: 1 ÷ 4 bar
  • - Connection to gas cylinders - two options:
    - Using a hose and clamping bands: the end of the hose connection length 28mm / Wed. 8mm
    - using G 3/8 "L connector

Wednce. 13 mm
  • - power consumption (at pressure) 2 ÷ 3 bar): 1.4 kW
  • - consumption (at pressure) 2 ÷ 3 bar): 100 g / h
  • - nozzle diameter (designation): Wed. 0.15 mm (No. 15)
  • - Minimum room volume: 15 m3

Wednce. 14 mm
  • - power consumption (at pressure) 2 ÷ 3 bar): 1.7 kW
  • - consumption (at pressure) 2 ÷ 3 bar): 120 g / h
  • - nozzle diameter (designation): Wed. 0.20 mm (No. 20)
  • - Minimum room volume: 17 m3

Wednce. 20 mm
  • - power consumption (at pressure) 2 ÷ 3 bar): 2.1 kW
  • - consumption (at pressure) 2 ÷ 3 bar): 150 g / h
  • - nozzle diameter (designation): Wed. 0.30 mm (No. 30)
  • - Minimum room volume: 21 m3

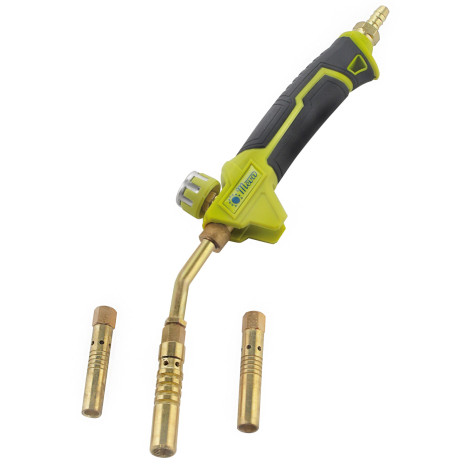

Included:
  • - Handle with adjustable valve (with connecting spindle)
  • - 3 burners (Wed. 13/14 / 20 mm)
MEVA
1010659
10 Items

Data sheet

Kod producenta
1010659
