Manufacturer's code:

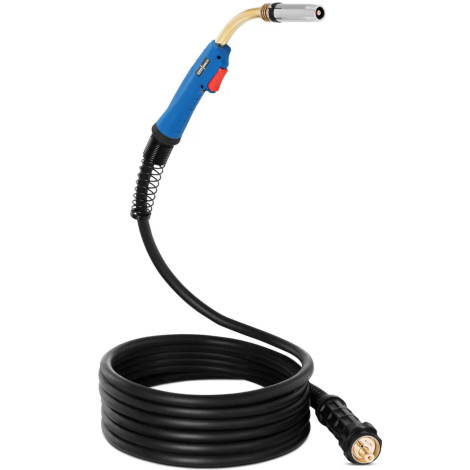

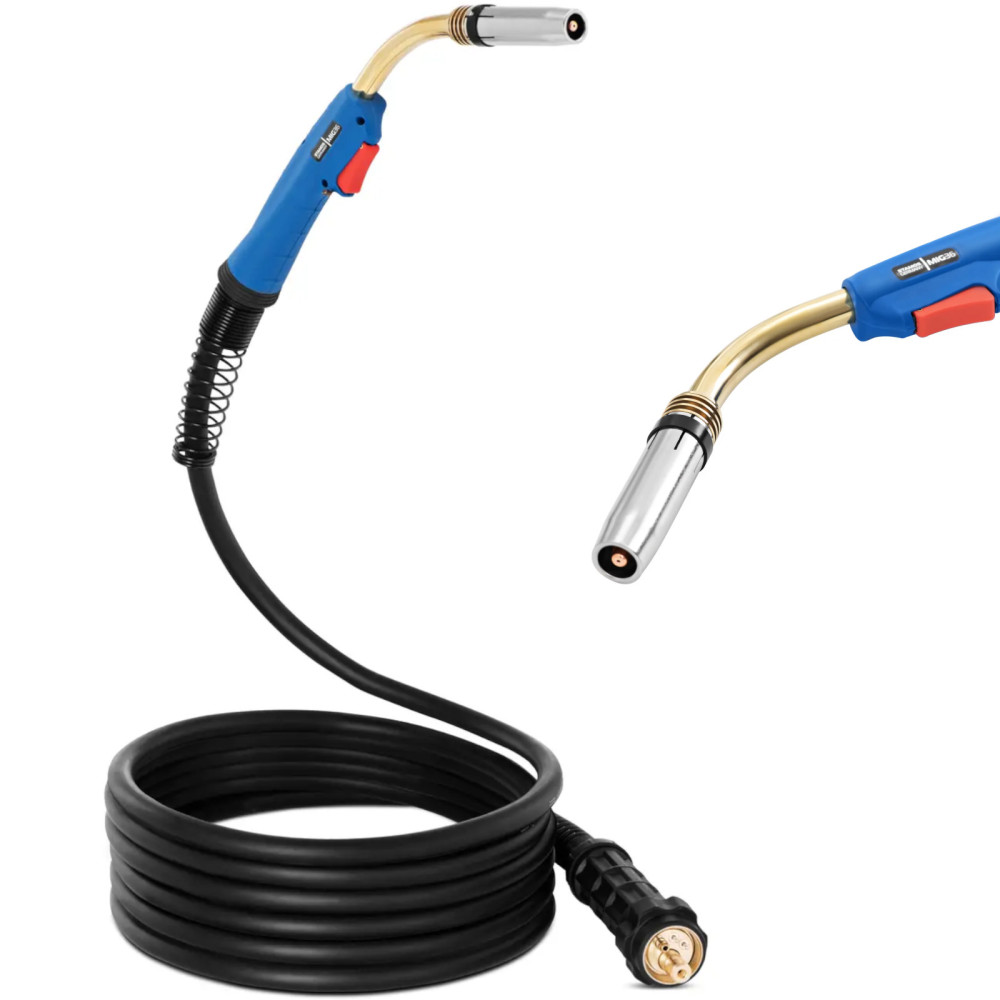

10021312Welding holder for Migmat brand Stamos Germany Thanks to simple and precise operation, it allows you to get high-quality welding welds without effort. The device provides even administration of wire and extraordinary quality weld during MIG / MAG welding. Welding handle tolerates the intensity to
300 for
CO2 or 340 protective gas For mixed gas and impresses a 35% operating cycle. The torch tension is
113 V. It allows you to effectively perform most welding work and obtain optimal welds. MIG / MAG cable should be connected to the welder using a tried and tested Euro plug. The accessory thanks to 5 m long ensures the freedom of movement necessary for precise work. High-quality burner components are optimally matched, thanks to which excellent results are always achieved. MIG / MAG holder is probably in your hand and the protective casing perfectly toler even hard work. When the gas flow 10-20 l / min, the burner is reliably cooled and creates a stable arc that provides high quality welds.
Product features: - - high quality MIG36 welding handle for MIG / MAG welding,
- - the working cycle at maximum power is 35%,
- - ideal for welding work up to 340 and with CO2 and 300 A with a mixed shielding gas,
- - gas flow for welding 10-20 l / min and cooling the burner,
- - 5 m long wire provides comfort and freedom of movement.
Technical parameters: - - catalog number - 10021312
- - article - New
- - Model - Swt36mig5
- - size [mm] - 5 m x 35 mm²
- - Welding method - MiG / mag
- - Rated working cycle [%] - 35
- - shock voltage [V] - 60-70
- - wire diameter [mm] - 1.2-1.6
- - Rated voltage [V] - 113
- - shielding gas flow [l/min] - 10-20
- - Coverage gas type - CO2 / Mix
- - Rated entrance current [A] - 340 A CO2 / 300 A Mix
- - Dimensions (DXSXW) - 500 x 3.5 x 5 cm
- - weight - 4.4 kg
- - Dimensions of shipment (DXSXW) - 49.5 x 38 x 7.5 cm
- - shipping weight - 4.8 kg
Included: - - Welding handle
- - User manual
