Screen Curtain Protective Welding with frame on wheels 240 x 180 cm - black

€111.15
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10021146

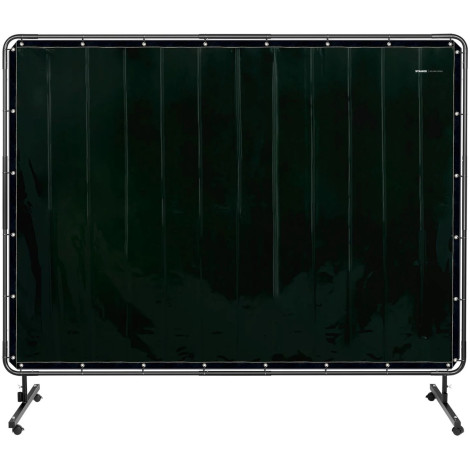

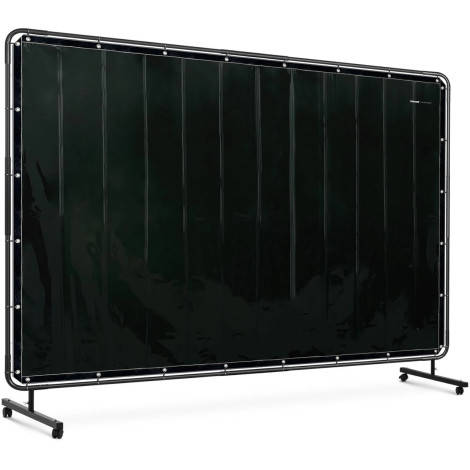

Welding curtain The Stamos Welding Group brand allows you to protect against UV radiation, sparks, an electric arc or metal splashes. It will work in workshops, repair plants or on construction sites. The screen was made of vinyl (PVC) with a thickness 0.4 mmwhich is non-flammable and resistant to UV rays. There are on the entire circuit mounting mesh. Large dimensions 240 x 180 cm ensure effective protection. Mobility curtain provides 4 twisting wheels (2 with brakes). The design is convenient in disassembly and re-folding.
Product features:
  • - vinyl with a thickness of 0.4 mm resistant to UV and flammable rays,
  • - a large area with dimensions 240 x 180 cm on a strong frame,
  • - frame on wheels, 2 brakes,

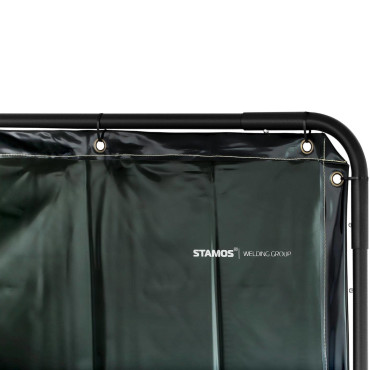

  • - eyelets around the circuit.

Technical parameters:
  • - Model - Sws02n
  • - catalog number - 10021146
  • - article - New
  • - Material - Plastic, steel
  • - Color - Black
  • - Screen size [mm] - 2390 x 1750
  • - Spectral transfer [%] - <0.002 / <3
  • - MMA - So
  • - TIG - So
  • - MIG / MAG - So
  • - Hazard level - 0,6
  • - Light permeability [%] - 0,93
  • - Hazard level after illumination - 0,59
  • - light permeability after exposure [%] - 0,63
  • - relative change in light transmission [%] - 29,6
  • - Dimensions (DXSXW) [cm] - 66 x 240 x 196
  • - weight [kg] - 7,7
  • - Dimensions of shipment (DXSXW) [cm] - 24 x 123.5 x 8
  • - shipping weight [kg] - 8,75

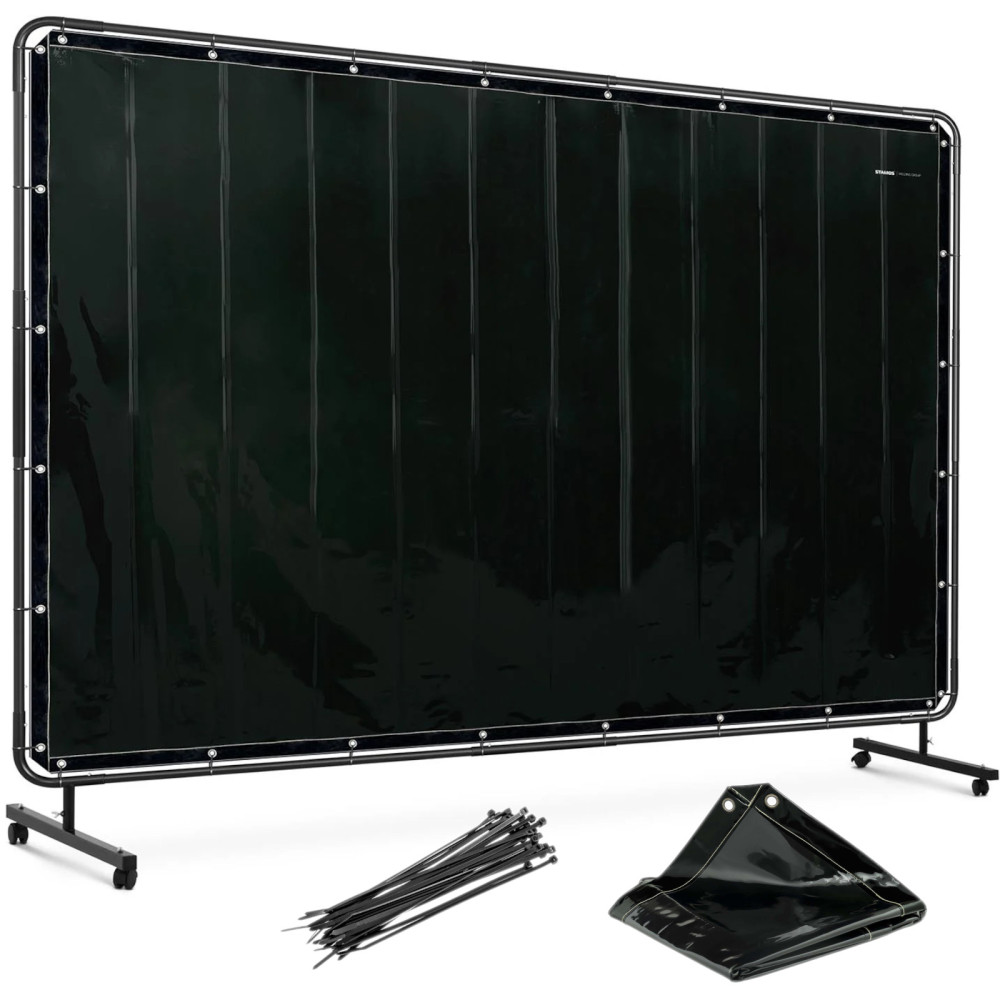

Included:

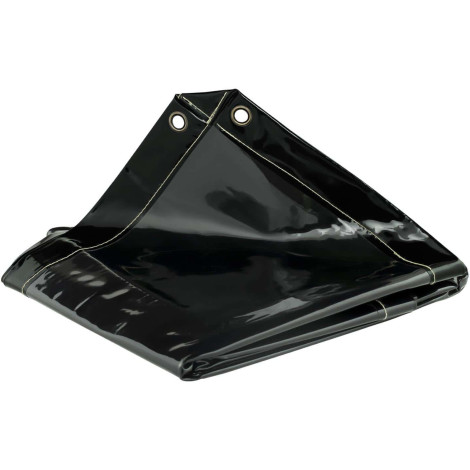

  • - Welding Screen

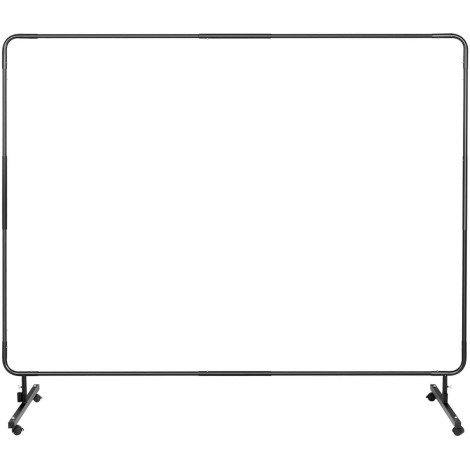

  • - Round tubes - 12 pcs.
  • - Square tubes - 2 pcs.
  • - fittings - 2 pcs.
  • - corner fittings - 4 pcs.
  • - Wheels - 4 pcs.
  • - Metal rings - 31 pcs.

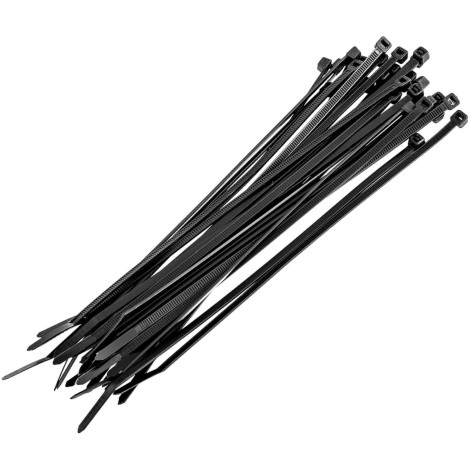

  • - Clamping bands - 32 pcs
  • - Instructions
