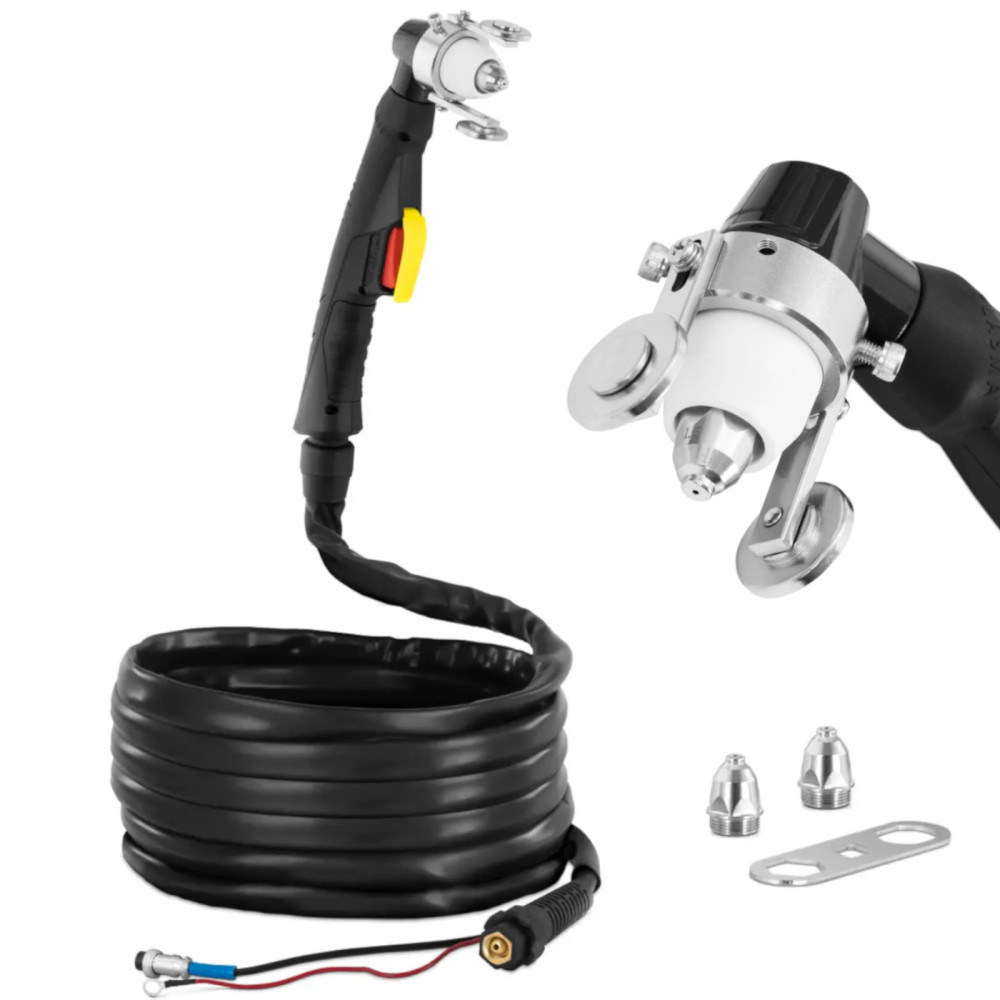

Plasma cutting burner 5M x 10mm2 100 A

Manufacturer's code: 10021322
Burner brand Stamos Germany It allows precise and easily cut different metals. Perfectly lies in your hand and provides optimal performance. It allows you to discover the potential hiding in a plasma cutter. The accessory can be used to work with current on intensity up to 100 a. It also impresses a 60% working cycle. The plasma burner rated voltage is 500 V. Allows you to effectively cut metals and obtain optimal results. The plasma burner is probably in the hand and the protective casing is even suitable for demanding work. When passing 220 l / min, the burner is reliably cooled and produces a stable plasma arc that provides optimal metal cutting. The wire has a length of 5 m. It is equipped with a gas connector with M16x1,5 thread.
Product features:

• - high quality metal cutting with P80 plasma burner,
• - 60% operating cycle with maximum power,
• - ideal for cutting plasma at 100 A current,
• - gas supply 220 l / min for cutting and cooling the burner,
• - 5 m long wire provides freedom of movement.

Technical parameters:

• - catalog number - 10021322
• - article - New
• - Model - Spt10p805
• - ignition - Pilot arch
• - size [mm] - 5 m x 10 mm²
• - Welding method - Plasma cutting
• - Snake connection - M16
• - Rated working cycle [%] - 60
• - shock voltage [V] - 8000
• - Rated voltage [V] - 500
• - shielding gas flow [l/min] - 220
• - Coverage gas type - Air / Argon
• - Rated entrance current [A] - 100
• - Dimensions (DXSXW) - 500 x 3.5 x 5 cm
• - weight - 2.3 kg
• - Dimensions of shipment (DXSXW) - 36.5 x 31 x 7.5 cm
• - shipping weight - 2.8 kg

Included:

• - plasma burner
• - No plug in the set
