Manufacturer's code:

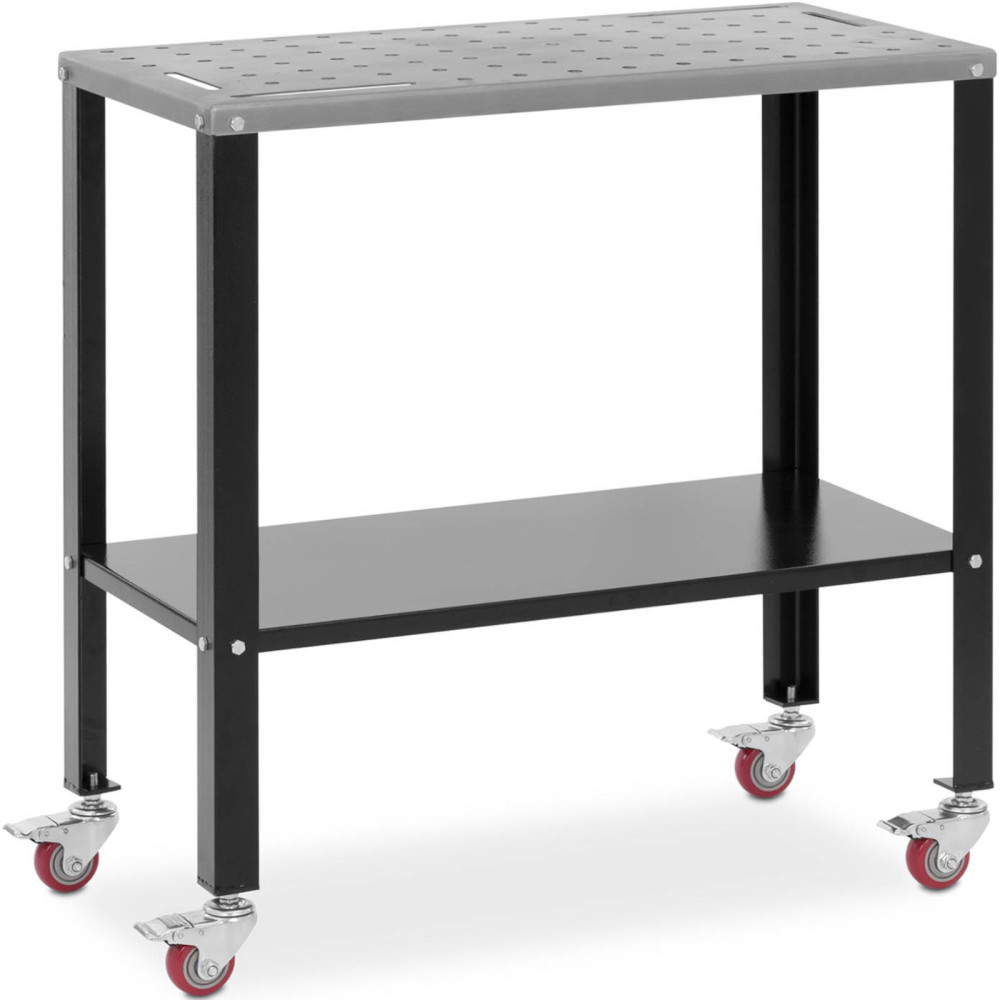

10021463Welding table
Stamos It will allow you to raise workpieces to the working height. Stable equipment lifting even heavy metal parts. There is a lot of space on the counter to place them comfortably and put the welder if necessary. A perforated steel plate was embedded on four strong legs with dimensions
50 x 50 mm. Underneath there is a shelf on which accessories can be placed such as terminals or electrodes. Durable table made of solid carbon steel. No no vibration. The openings in the counter allow us to attach and precisely align the processed items by means of terminals. Use welding magnets to attach the pieces of metal that are placed on the counter. Thanks to the working surface with dimensions

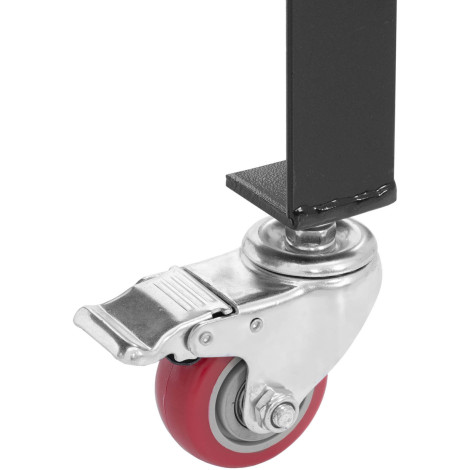

91.3 x 46 cm There is also enough space for large items on the table. Large 3 "wheels allow you to move the table, and the four brakes will provide optimal stability.
Product features: - - a solid, stable design also maintains heavy workpieces with a total load of 544 kg,
- - 50 x 50 mm legs ensure stability,
- - mobile and easy to transport thanks to four wheels with brakes,

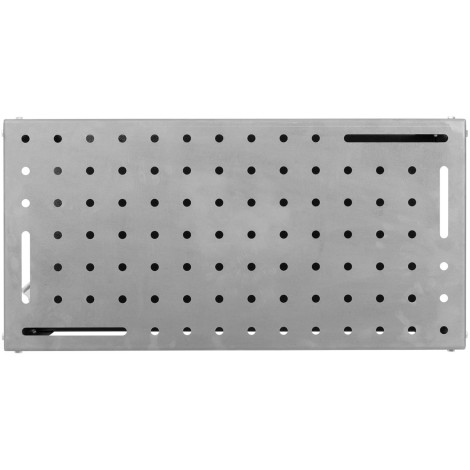

- - practical, evenly arranged holes in the counter make it easier to attach objects,
- - A lasting 91.3 x 46 cm table top with a 3 mm table thickness will end up even large loads.
Technical parameters: - - catalog number - 10021463
- - article - New
- - Model - SWG-table915
- - Material - Carbon steel
- - diameter [cm] - 1.6
- - Hole diameter [mm] - 16
- - Maximum load [kg] - 544
- - pipe thickness [mm] - 4
- - for pipes with a diameter [mm] - 50 x 50
- - wheel dimensions ["] - 3
- - Cover of the table [mm] - 3
- - leg diameter [mm] - 50 x 50
- - Dimensions of the working surface [cm] - 91.3 x 46

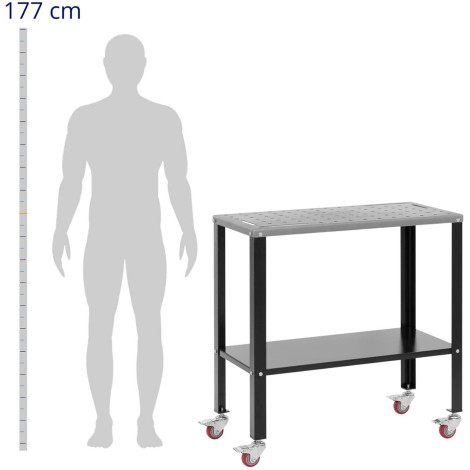

- - Dimensions (DXSXW) - 91 x 46 x 94 cm
- - weight - 28.3 kg
- - Dimensions of shipment (DXSXW) - 95 x 50 x 7.3 cm
- - shipping weight - 30 kg
Included: - - SWG-Table915 welding table
- - Perforated plate
- - shelf
- - 4 legs
- - 4 wheels
- - Mounting accessories (16 screws, 16 screws, 16 washers, 16 elastic washers)
- - User manual
