Welding handle TIG LIFT FLEX 4M Valve Flexible Burner Plug 13mm Write

TIG Lift SR-17V 4M welding holder - 35-50 plug

A version with a flexible head that can be freely bent.

TIG LIFT handle for welding MMA or MIG / MAG devices through a thrusting of the TIG Lift arc - 50 plug

▶ ️ length 4m

▶ ️ Set of accessories in the set

• Equipped with valve placed on the handle for gas control.
• The handle has a rubber cover, protecting the wires before writing. Fixing to welding machines on Big plug (13 mm diameter), whereas the gas cable has a plug-in plug-in Type 21.

Current cable (current vein) is made of copper, which translates into greater durability and to an increased working cycle compared to the wires made of aluminum coated with copper in CCA technology.

In the handle, it was used Flex flex burnerwhich allows you to work in hard-to-reach places.

The set contains all the elements needed to start work,

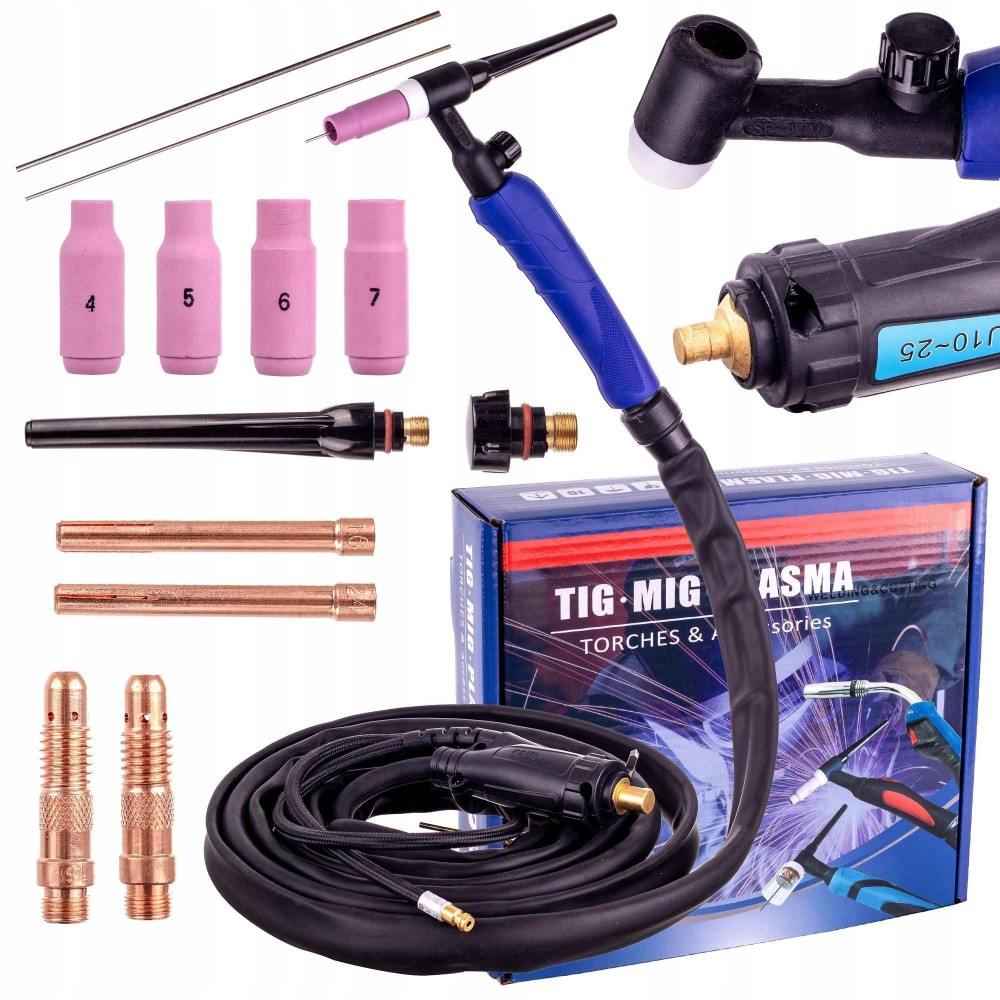

The kit includes:

• TIG SR-17V welding holder - length 4m
• 2x clamping sleeves
• 2x Wolfram Gold (1.6mm and 2.4mm) electrodes
• 2x Current Connector
• 1x short cork
• 1x long plug
• 4x ceramic gas nozzle (various sizes)

Connecting the TIG holder on MMA and MIG / MAG devices:

• Connect the TIG holder to the negative pole (-)
• We connect the mass cable plug to the positive pole (+)
• The gas hose must be connected directly to the reducer by using a quick coupler or a clamping band.
• The handle does not have a control plug

Technical data:

• Length: 4 m
• Completion of the gas hose: quick coupler type 21
• Current plug: Type 50 (Diameter 13 mm)
• Current load / cycle: DC 140 A / 60%
• Diameter of used tungsten electrodes: 1.0 - 2.4 mm
• Weight with packaging: 1.8 kg
