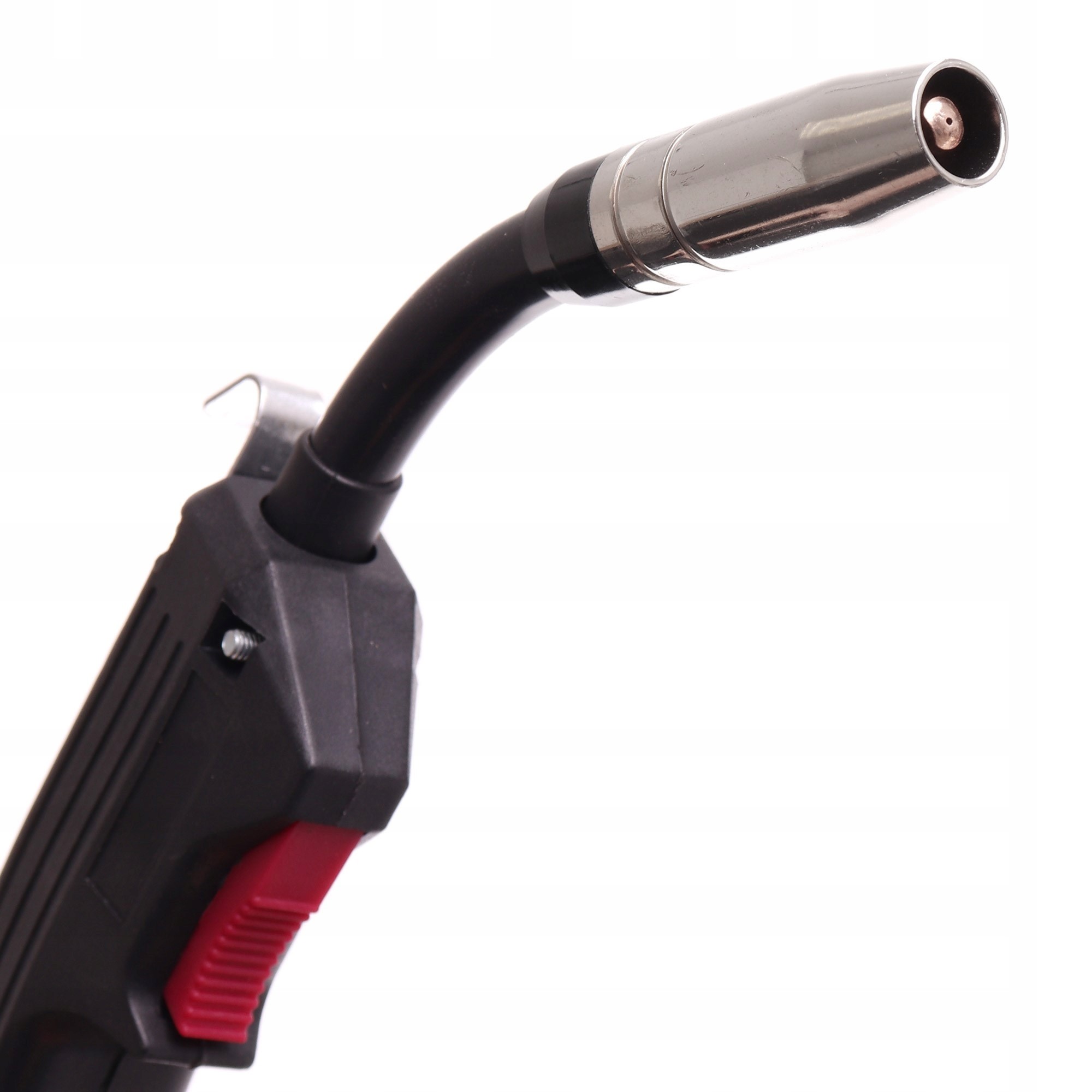

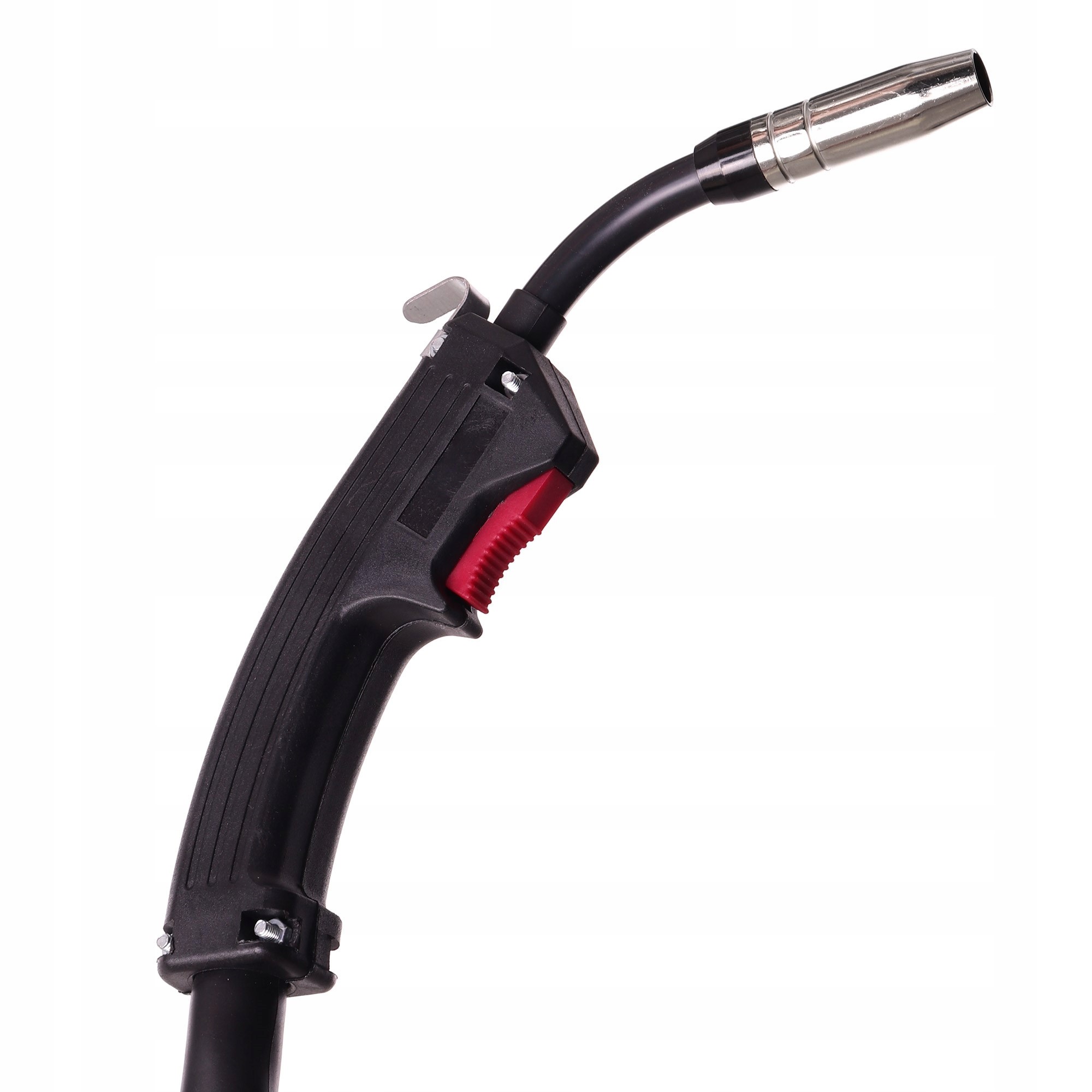

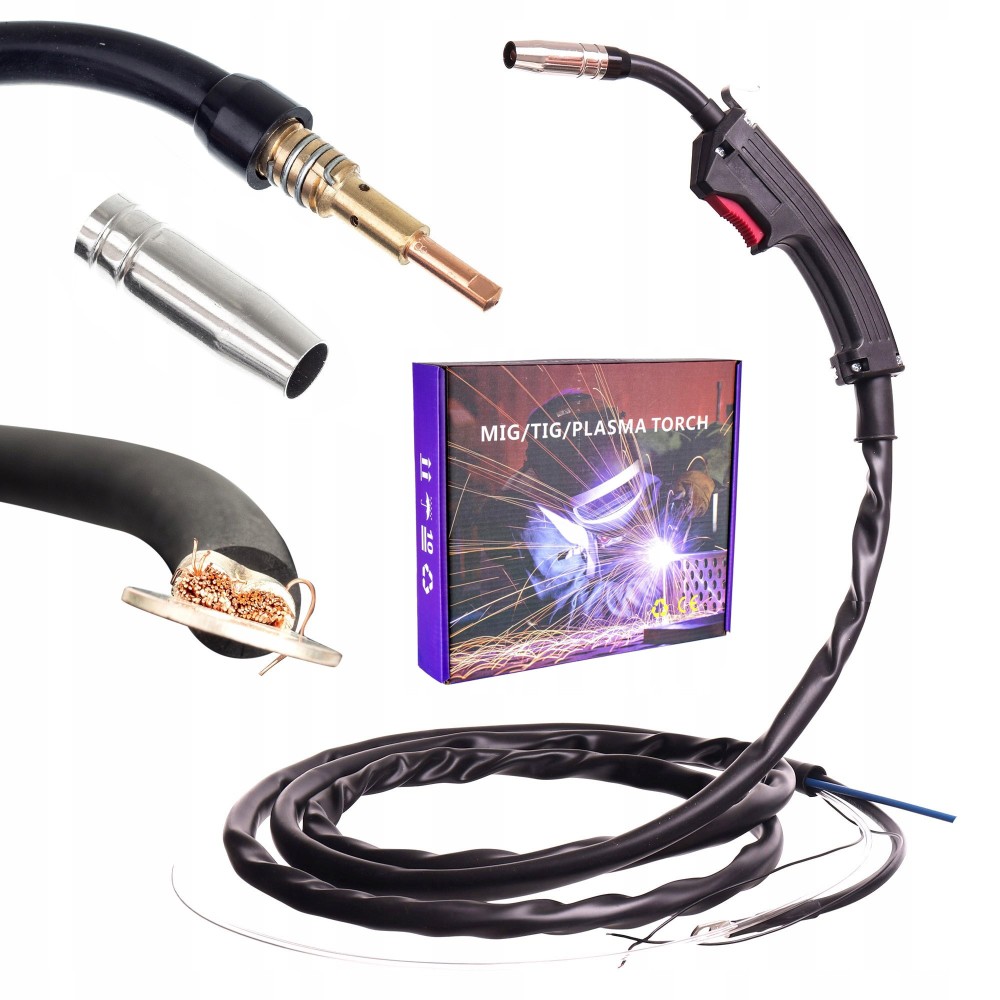

Welding handle MK-14 TW14 3M with EINHELL SGA Migomat Mig MAG

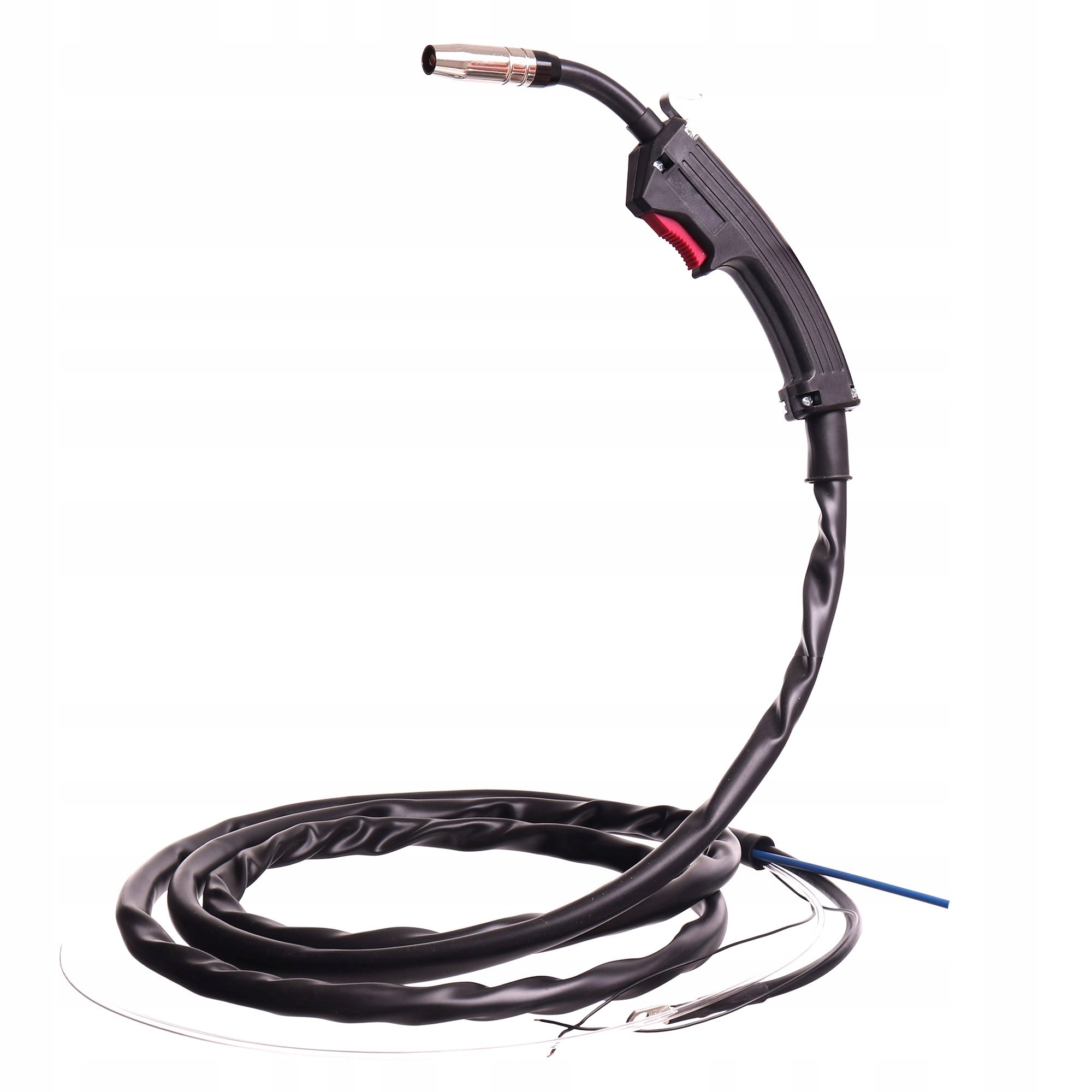

Welding handle complete TW14 type - length 3m

• The handle is used in MIG / MAG welding semi-automatic semi-trailers without a euro socket that is not equipped with a shielding gas electrical electrode
• Designed for manual MIG and MAG MAG Welding in the gas wire and a self-welded wire
• Equipped with a steel wire guide which is more durable than teflon
• Voltage wires made of copper
• Connection inside the welding device as in Welding Semi-automates of Einhell 130, 145, 170, BT-GW 150 BASS POLSKA 150, 170 DEKATECH MIG 155 PROFIMIG 160, 161, 180 Telwin. Directly to welding machine for the wire feeder. An example of assembly in the pictures below
• You can adapt to other welding semi-trailers with a similar connection of the handle in the wire feeder. The handle has a gas valve in a handle.

Technical data:

• Holder with a length: 3m
• Wire diameter: 0.6 - 1.0mm (in the set current tip 0.8mm)

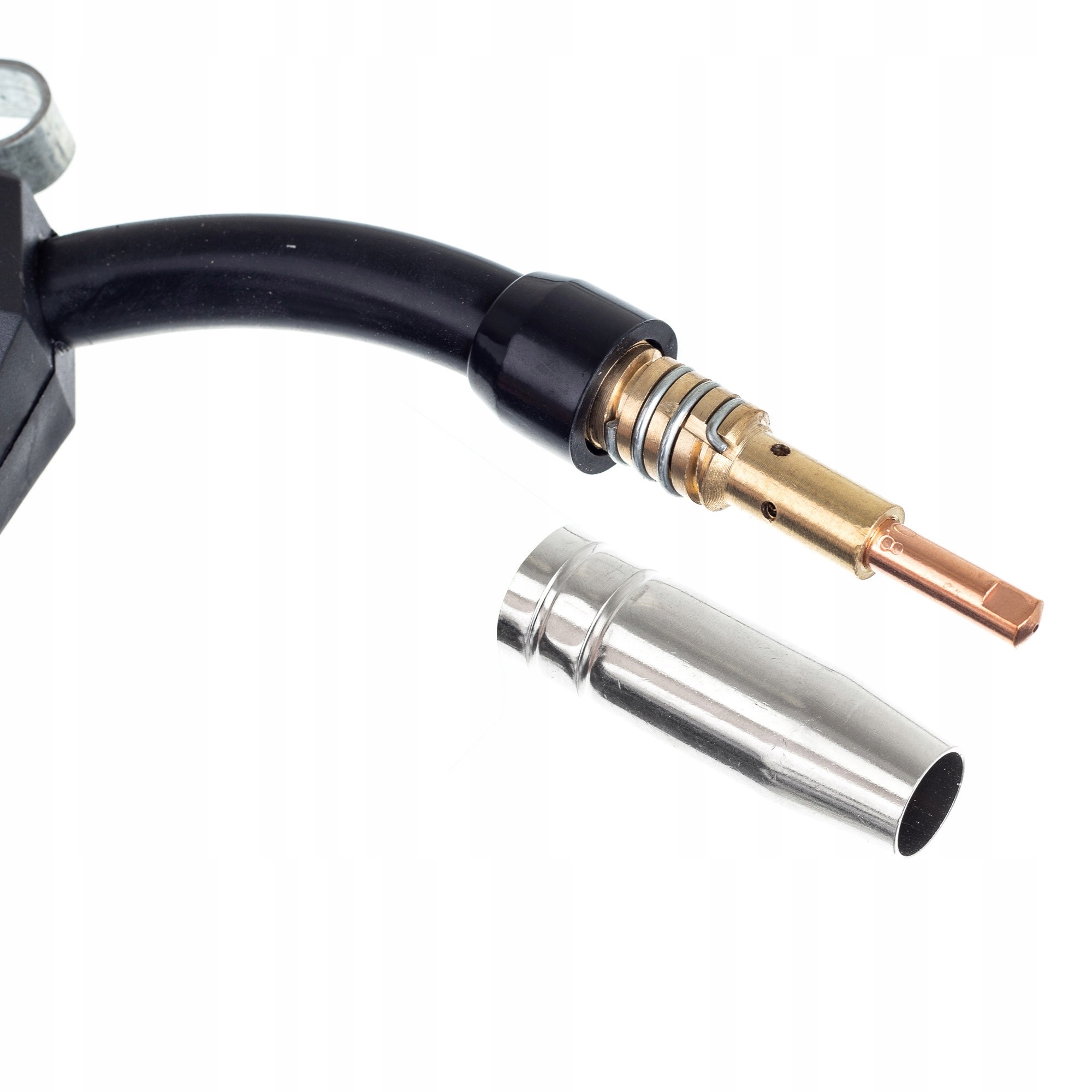

• Gas nozzle, TW14 / MB15 tip
• Current load: 140a
• Refrigeration: shield
• Execution: Standard Binzel MB14 / 15

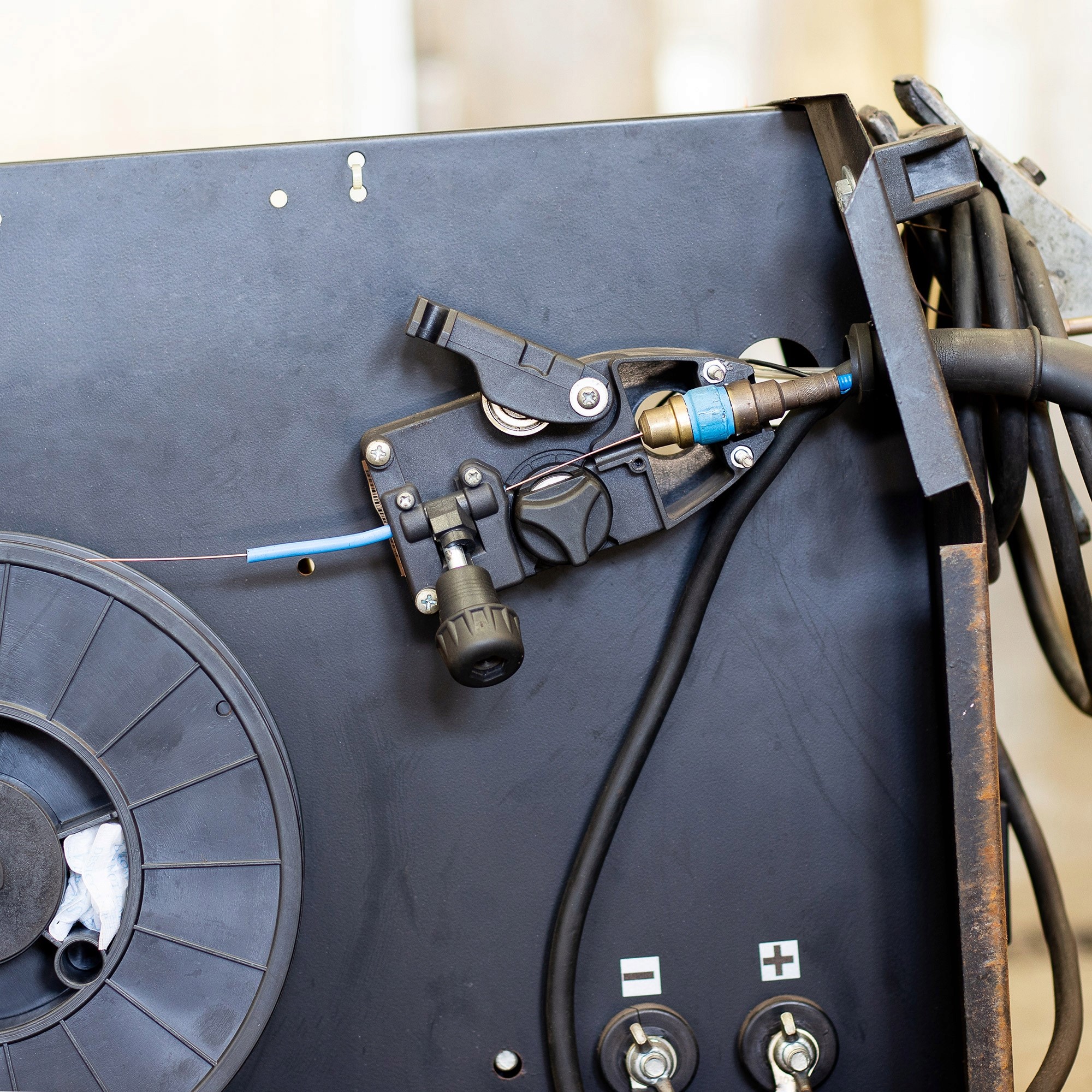

Assembly example
