Manufacturer's code:

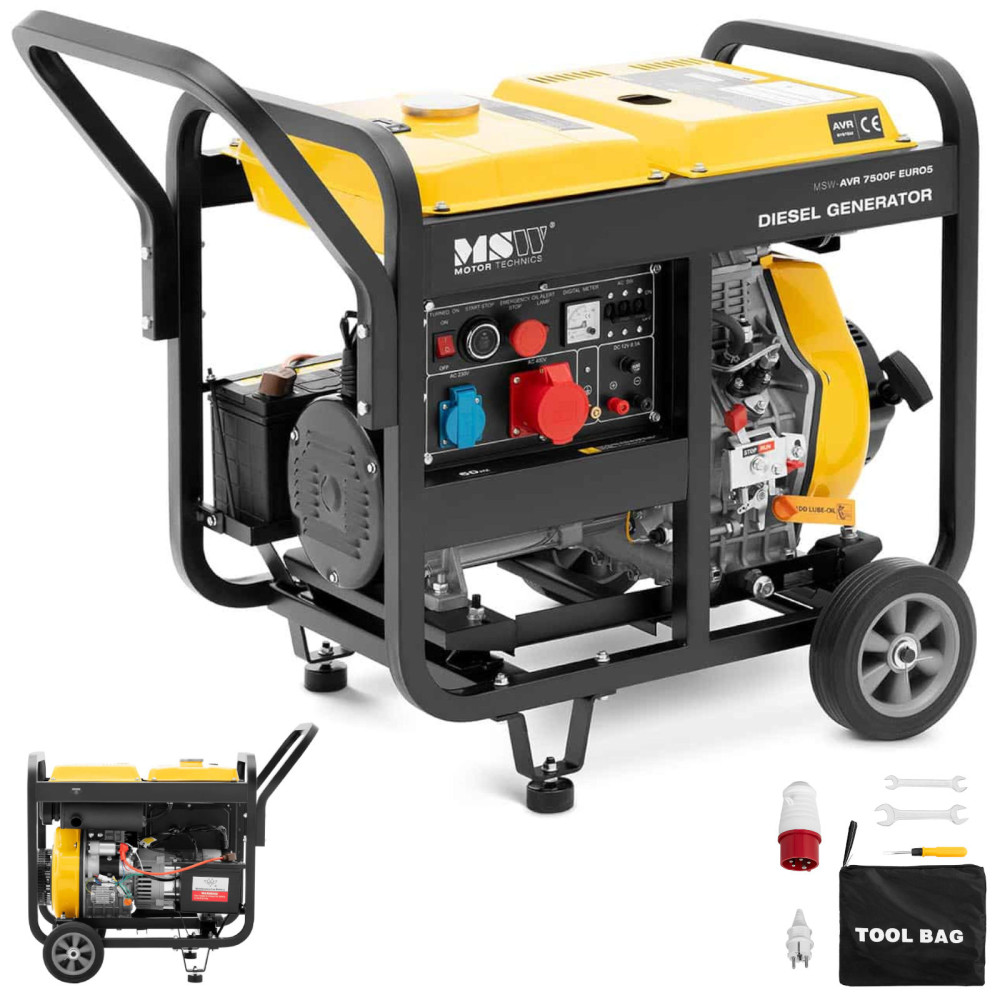

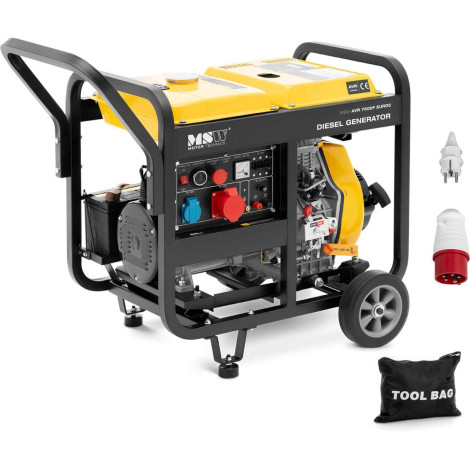

10062301Brand Current Generator MSW Provides electric energies in the event of a network failure. The device consumes only
12.5 l fuel for 5.7 hours. The power of the aggregate is
2500/7500 W. Three sockets (
230/400 V and 12 V) Allows to allow several different machines even parallel. Maximum power of the slot
230 V is 2,500 W, A slot
400 V - 7500 W. The generator is activated using

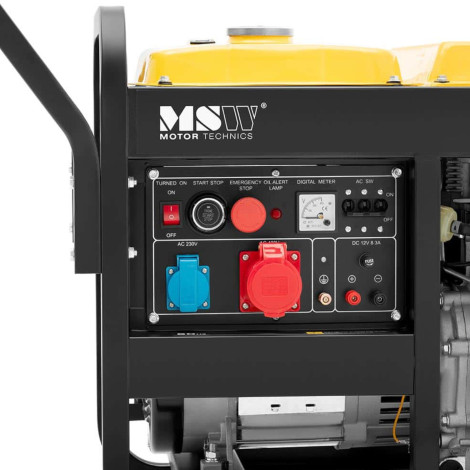

Electric or manual starter. A legible display shows settings in real time. The device volume is from
78 to 96 dB. Air cooling protects the engine from overheating. Overload protection prevents engine damage if overheated. Protection
Ip23 Allows you to protect the equipment from water spraying at an angle up to 60Deg. The aggregate was also protected against solid bodies up to 12.5 mm. The device has an AVR voltage controller, an emergency stop and low oil pressure sensor.
Product features: - - maximum night 2500/7500 W or 8.75 kVA,
- - up to 5.7 hours working on a full tank,
- - three 230/400 V AC and 12 V DC slots for simultaneous handling of various machines,
- - high quality materials and execution,
- - Air cooling, overload protection, IP23 protection class.
Technical parameters: - - catalog number - 10062301
- - article - New
- - Model - MSW-AVR 7500F EURO5
- - noise level [dB] - 78
- - Material - Aluminum, aluminum alloy
- - 12 V output - So

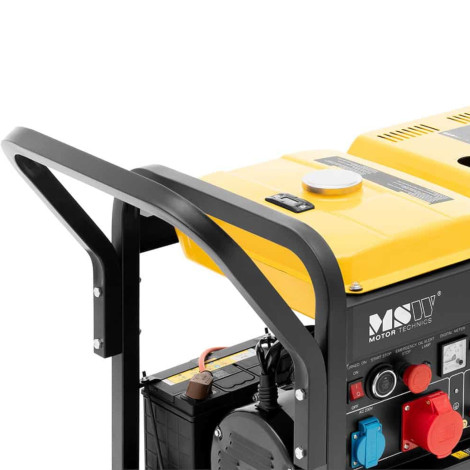

- - Handles for carrying - So
- - continuous power - 8,75
- - Diameter Cylinder X SUW [mm] - 95x75
- - jumping volume [cm³] - 531
- - Emergency switch - So
- - engine model - 195f
- - engine speed [obr./min] - 3000
- - Ignition system - Samowzbudzenie
- - IP protection degree - Ip23
- - Fuel consumption [l/h] - 2
- - fuel type - Diesel
- - frequency [Hz] - 50
- - Fuel tank capacity [l] - 12,5
- - Rated output current [A] - 8.3
- - Rated output power [W] - 99.6
- - overload protection - So
- - oil tank capacity [l] - 1,65
- - working time with a full tank [h] - 5.7
- - Engine - Synchronous work AC
- - 50 Hz rated power [kVA] - 8.75
- - Power factor - 1
- - Rope length [m] - 1.7
- - maximum power [W] - 2500/7500
- - Rated output voltage [V] - 12
- - Pulse width modulation - So
- - engine oil type - SAE 10W30 (above the degree of CD)
- - start - Manual or electric
- - acoustic power level [dB] - 78
- - acoustic pressure level [dB] - 96
- - Fuel consumption [g/kWh] - ≤280
- - voltage regulator - So
- - Work temperature range [deg C] - -10 - 40
- - Tension [V] - 230/400

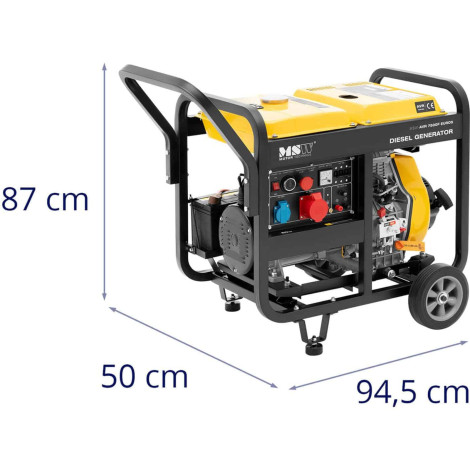

- - Dimensions (DXSXW) - 94.5 x 50 x 87 cm
- - weight - 123.6 kg
- - Dimensions of shipment (DXSXW) - 76 x 53 x 76 cm
- - shipping weight - 135.4 kg

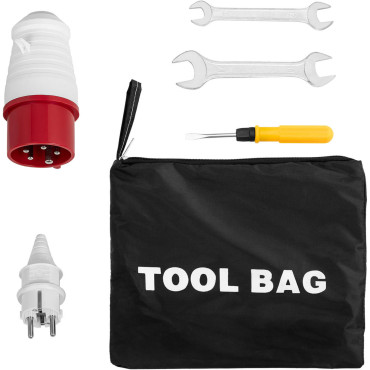

Included:
