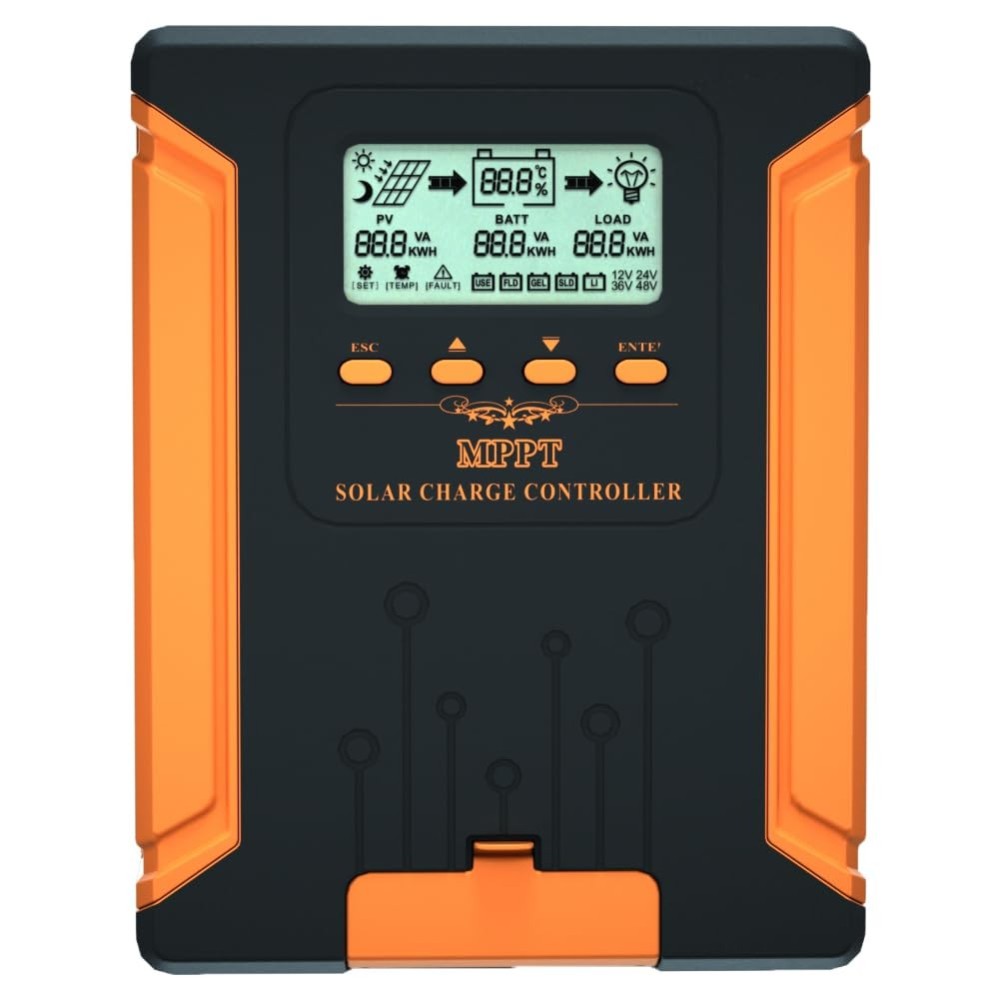

Solamr 60A MPPT Charging Regulator 12V / 24V / 36V / 48V for CM-60A batteries

Description of the CM-60A solar charging controller

CM-60A solar charging controller is an advanced device designed for maximum performance and reliability. Equipped with an advanced MPPT control algorithm, minimizes power losses and loss time, which translates into effective energy management. Thanks to the use of high quality components, the maximum conversion efficiency achieves impressive 98%, which allows optimal use of solar energy.

The controller supports the RS485 protocol, which allows easy communication in different situations. A built-in overheating protection mechanism and an excellent electronic protection function guarantee safety during use. The temperature compensation function automatically adjusts the loading and discharging parameters, which contributes to extending battery life.

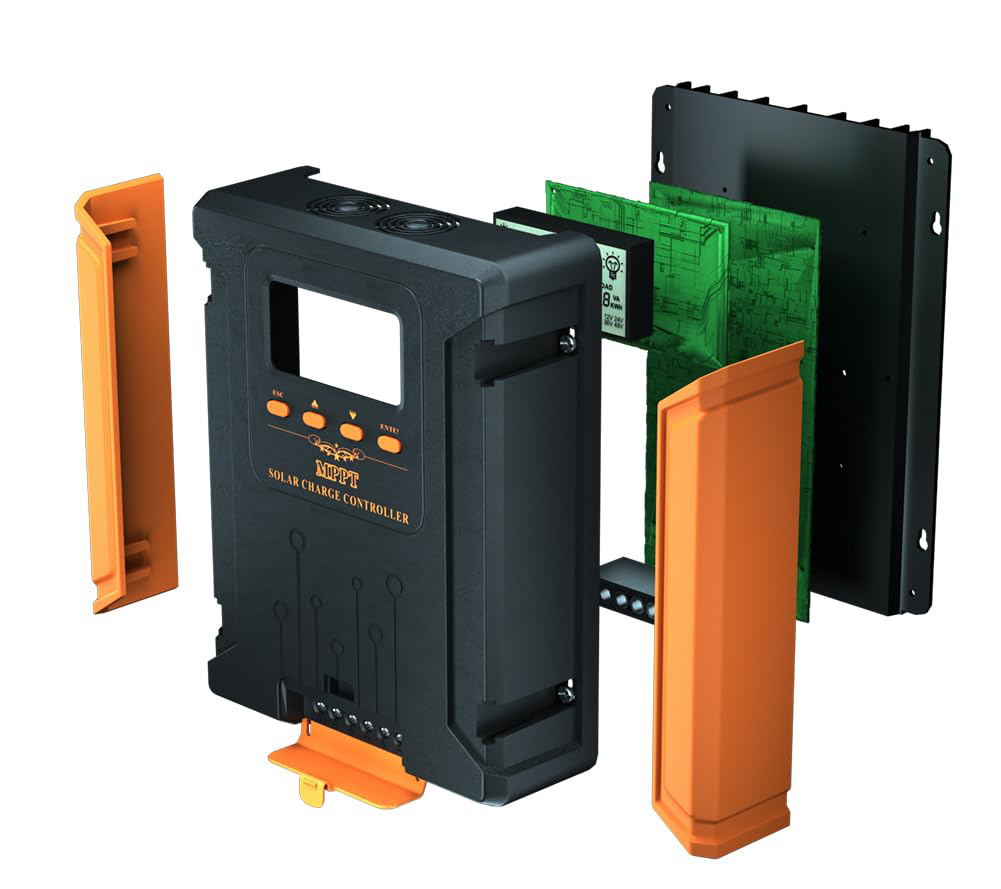

The metal housing of the device provides better heat dissipation, which further increases its reliability. The controller also has a lithium battery charge at 0 V voltage, which makes it a versatile solution for a variety of applications.

Specifications:

• Model: CM-60A
• Rated charging current: 60A
• Nominal system voltage: 12V / 24V / 36V / 48V DC AUTO
• Maximum solar panel input voltage: 180V (25 ℃), 150V (-25 ℃)
• Maximum photovoltaic power input: 720W (12V) / 1440W (24V) / 2160W (36V) / 2880W (48V)
• Temperature compensation coefficient: -2MV / ℃ / 2V (default)
• Work environment: -10 ℃ ~ + 65 ℃

Packing list:

• 1 x Solar Charging Controller
• 1 x User's Manual

The CM-60A controller is an excellent choice for those seeking an effective and reliable solar energy management solution, ideal for both home and professional applications.
