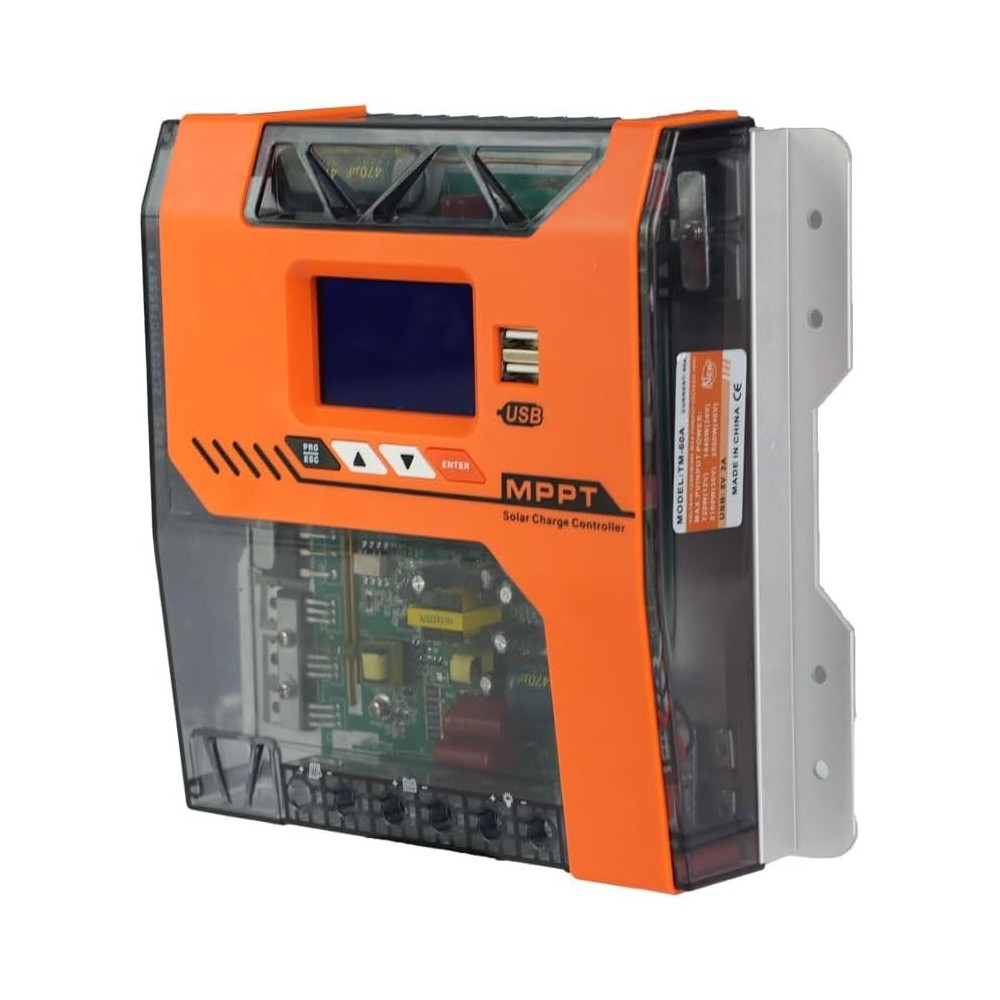

Solar panel controller Y & H, 12V 24V 36V 48V, 60A

The Y & H solar charging controller uses advanced MPPT technology to track the maximum power point, reaching tracking efficiency not less than 99.5%. It is suitable for acid-lead, gel, lithium and other types. 100% MPPT technology.

Solar controller MPPT 60A: At the 12V battery, the maximum solar panel input power is 720W; For 24V battery, the power is 1440W; For the 36V battery, the maximum panel input power is 2100W; A for the 48V battery, the power is 2800W.

The 60A charging controller automatically detects 12V / 24V / 36V / 48V voltage.

The nominal adjustment current of the controller is 60A, and the maximum charging conversion efficiency can reach 97%.

Solar controller 60A has an excellent heat dissipation system and various load control modes: 24-hour operating mode, light control mode and light and time control mode.
