Pump for the malicious liquid with a hose meter 35-45l / min 550 in 230 V

€372.82
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10060826

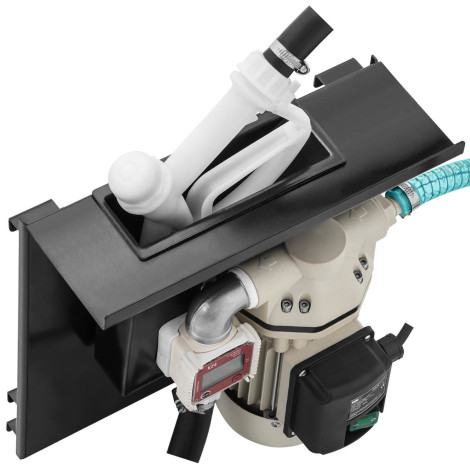

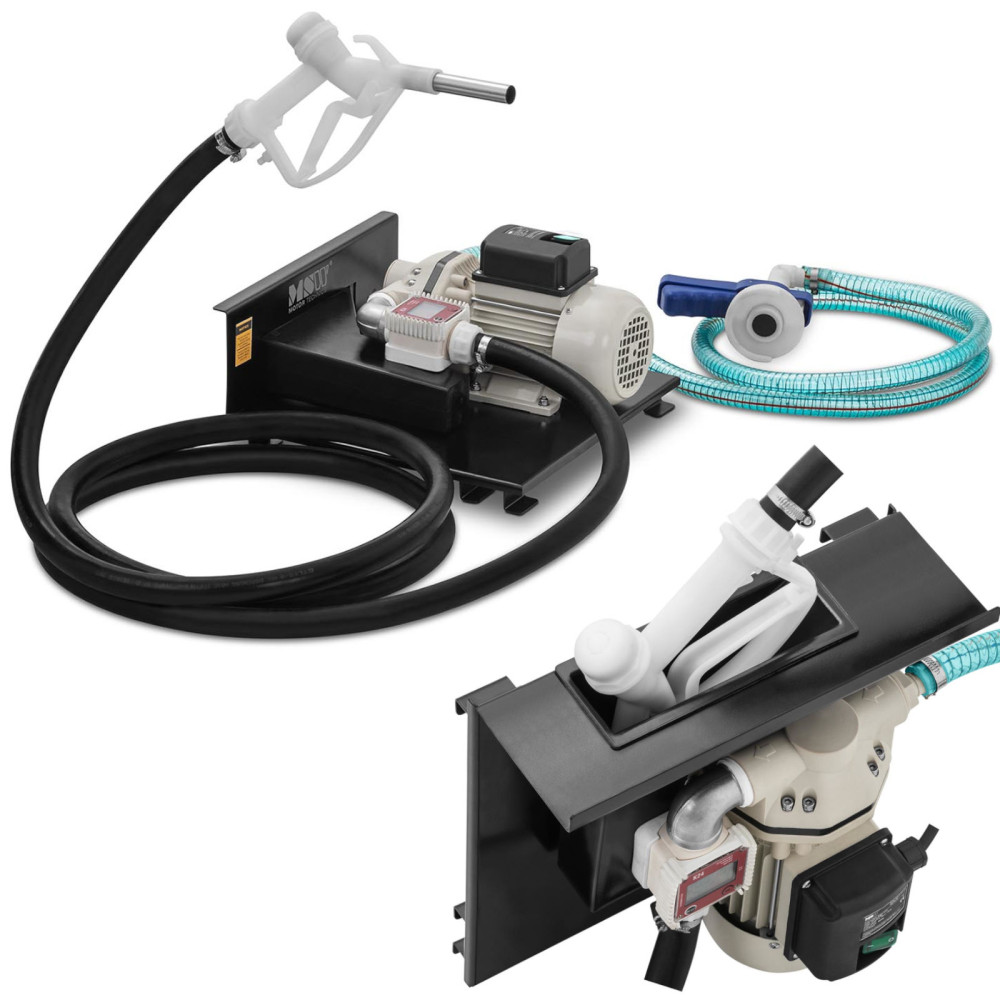

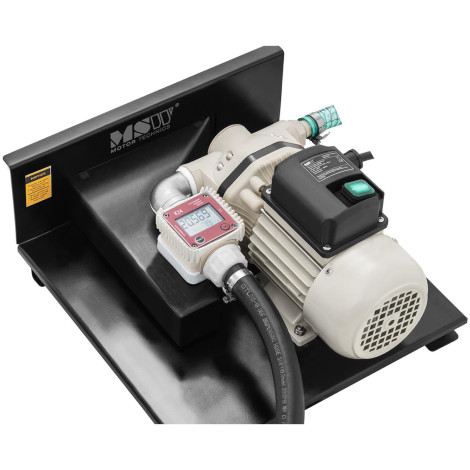

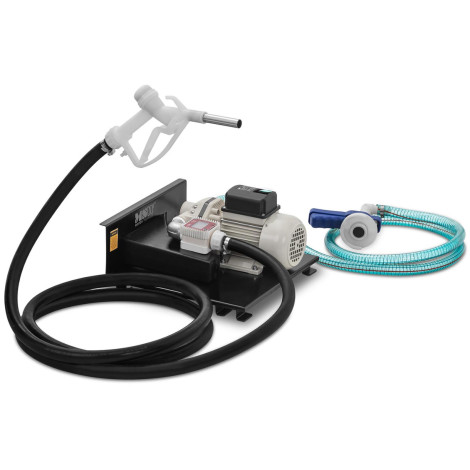

Brand membrane pump MSW Designed for fast and safe pumping harmful liquid Such as urea.
The pump is equipped with Two snakes and nozzles By means of which it is controlled by pumping. It is connected to the dosing hose digital counter. The pump is mounted on a frame made of stainless steel, having tank holder IBC and Tote. The self-priming pump can be installed above the tank from which the liquid is to be charged. The suction force is 3M. Built-in Pressure switch It starts and stops automatically as soon as the power valve is open. The flow rate is 35-45 l / min. at a pressure of 5 bar. In addition to urea, the pump can also be used for other liquids, such as urea solutions (DEF or SUS 32), alcohol, ethanol, ammonia, windscreen washer fluid, organic acids and other non-flammable substances. The construction of the urea pump is particularly durable and can not be damaged if it will work dry for a long time.
Product features:
  • - Accessories - a complete set with a bracket, snakes and nozzles,
  • - Power - self-priming pump, flow 45l / min at a pressure of 5 bar,
  • - Versatility - to urea and other substances,
  • - Precision - counter for control of the intake liquid,
  • - Easy installation - Steel bracket for assembly on IBC and Tote containers.

Technical parameters:
  • - Model - MSW-Aop40s
  • - catalog number - 10060826
  • - article - New
  • - pressure - 5 bar
  • - Inlet dimensions - 20 mm
  • - Departure dimensions - 20 mm
  • - tension - 230 V
  • - power - 550 W
  • - Material - Metal
  • - housing material - EPDM
  • - Working temperature - -20 - 40Deg C
  • - rotational speed - 2800 rpm
  • - Maximum suction - 3 m
  • - Flow speed - 35 - 45 l / min
  • - Power cord - 1.9 m (including junction part)
  • - Bracket thickness - 1.9 mm
  • - bracket material - Stainless steel
  • - Suction hose length - 2 m
  • - length of the outlet hose - 4.1 m
  • - nozzle type - Manual pp nozzle to urea
  • - suction hose material - EPDM
  • - Suction hose diameter - 20 mm
  • - Dimensions (DXSXW) - 37 x 35 x 21 cm
  • - weight - 11.50 kg
  • - Dimensions of shipment (DXSXW) - 42,50 x 36 x 33 cm
  • - shipping weight - 12.30 kg

Included:
  • - Urea pump MSW-Aop40s
  • - Digital Counter
  • - stainless steel frame with a bracket
  • - 3 clamps
  • - Suction hose
  • - dosing hose
  • - Fuel nozzle
  • - suction head
  • - User manual
