Manufacturer number:

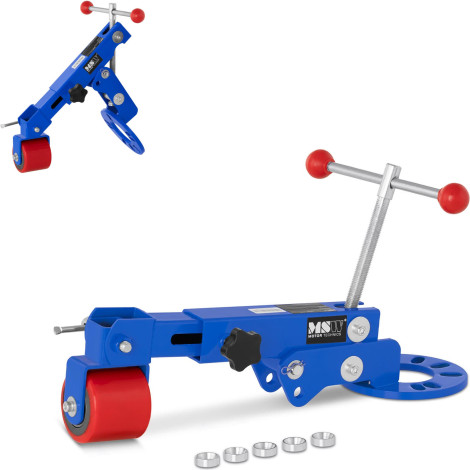

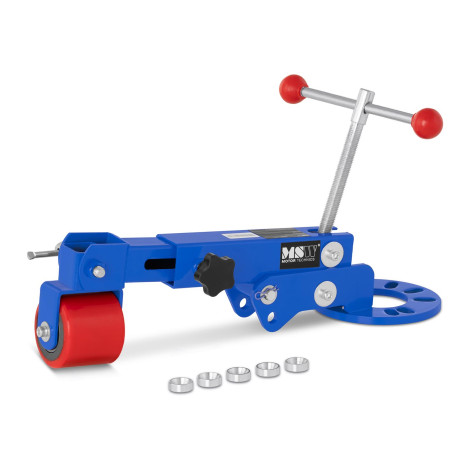

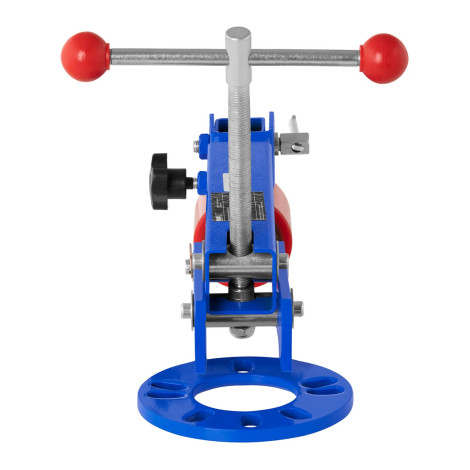

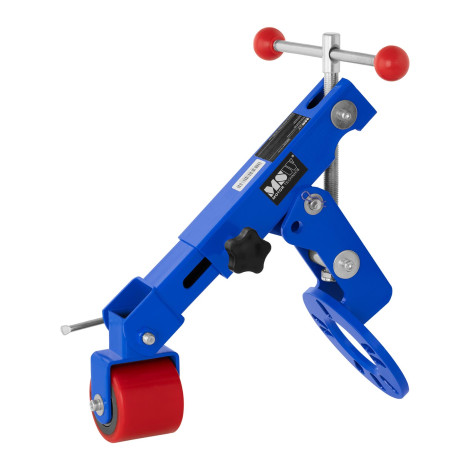

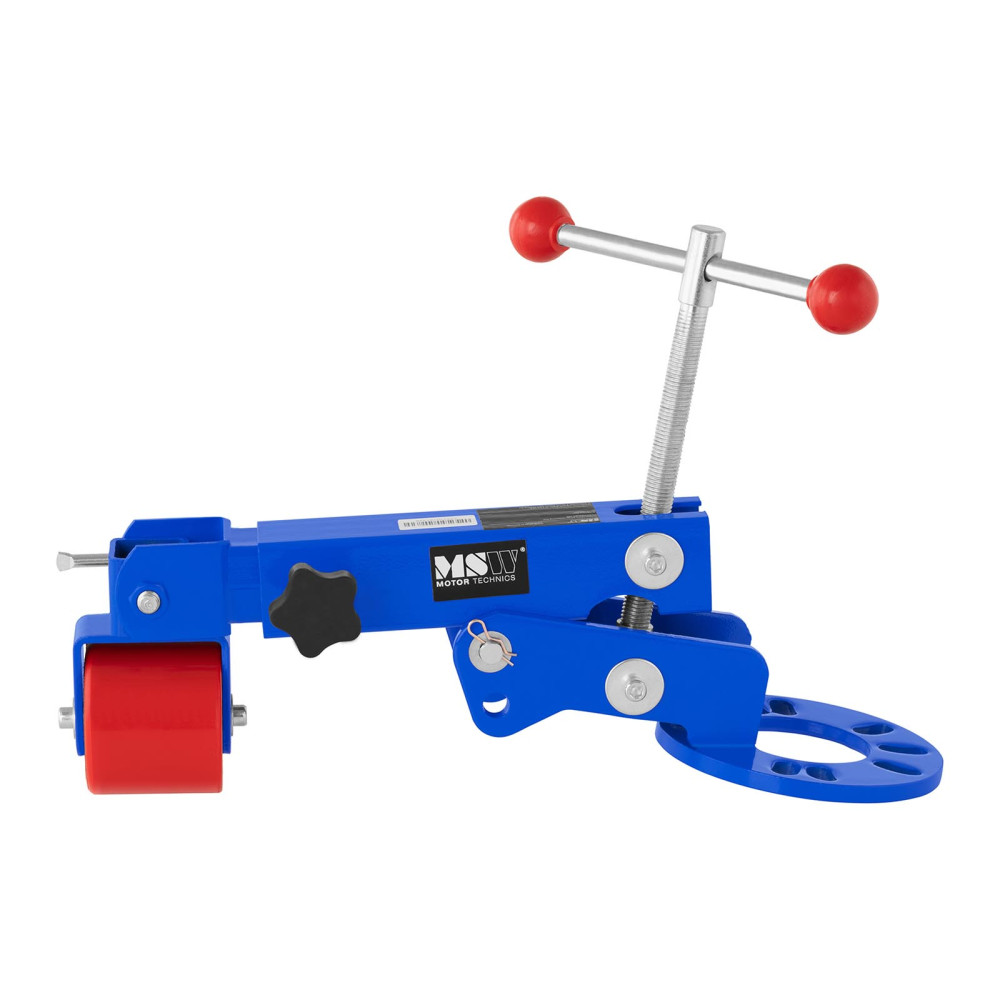

MSW 10060939 Roll to repair the edge and expanding the wheel arch MSW This is a versatile tool that
It will work in every sheet metal and car service workshop. The convenience and stability of work corresponds to the possibility of installing the device in the place. Model MSW-BG-655 has been
Adapted to the Piast with 4 or 5 screws in a spacing of 90-120 mmWhich, which will be used in all popular vehicles. Device strength is due to the use of proven solutions and high quality stainless steel. This material is characterized by high resistance to corrosion and mechanical damage. A wide adjustment range allows you to adjust the device to the currently performed operation.

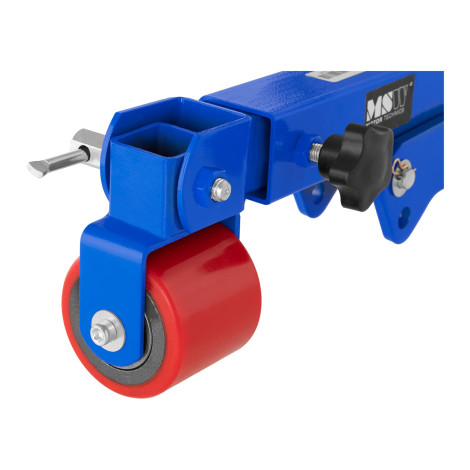

The built-in lever allows easy adjustment of the pressure force, and the fender edge forming roller moves smoothly in the range of 180DEG. In addition, using a precision knob, the boom frame can be shortened and extended in the range of 52-66 cm.
Product features: - - Versatility - they will work in most personal and delivery cars,
- - Strength - high quality of used materials and implementation ensures the reliability of the device,
- - Precision - adjustment of the length of the boom arm and pressure force,
- - Convenience - the lever and knobs facilitate construction regulations,
- - Stability - Installation with 4 or 5 screws.
Technical parameters: - - Model - MSW-Bg-655
- - catalog number - 10060939
- - article - New
- - Inner diameter - 74 mm
- - outer diameter - 150 mm
- - maximum length - 570 mm
- - minimum length - 370 mm
- - Regulation range - 140 mm
- - User manual - So
- - Dimensions (DXSXW) - 58.5 x 23.5 x 27 cm
- - weight - 6.5 kg
- - Dimensions of shipment (DXSXW) - 45 x 28.5 x 15 cm
- - shipping weight - 7.05 kg
Included: - - Roll for wheel arches
- - M10x60 adjustment screw
- - 50x50x230 rotary arm
- - M12x70 locking screw
- - M12 counter nut
- - M12 socket nut
- - M8x16 screw - 2 pcs.
- - M16x1,5x250 driving screw
- - EN statement
