Dual

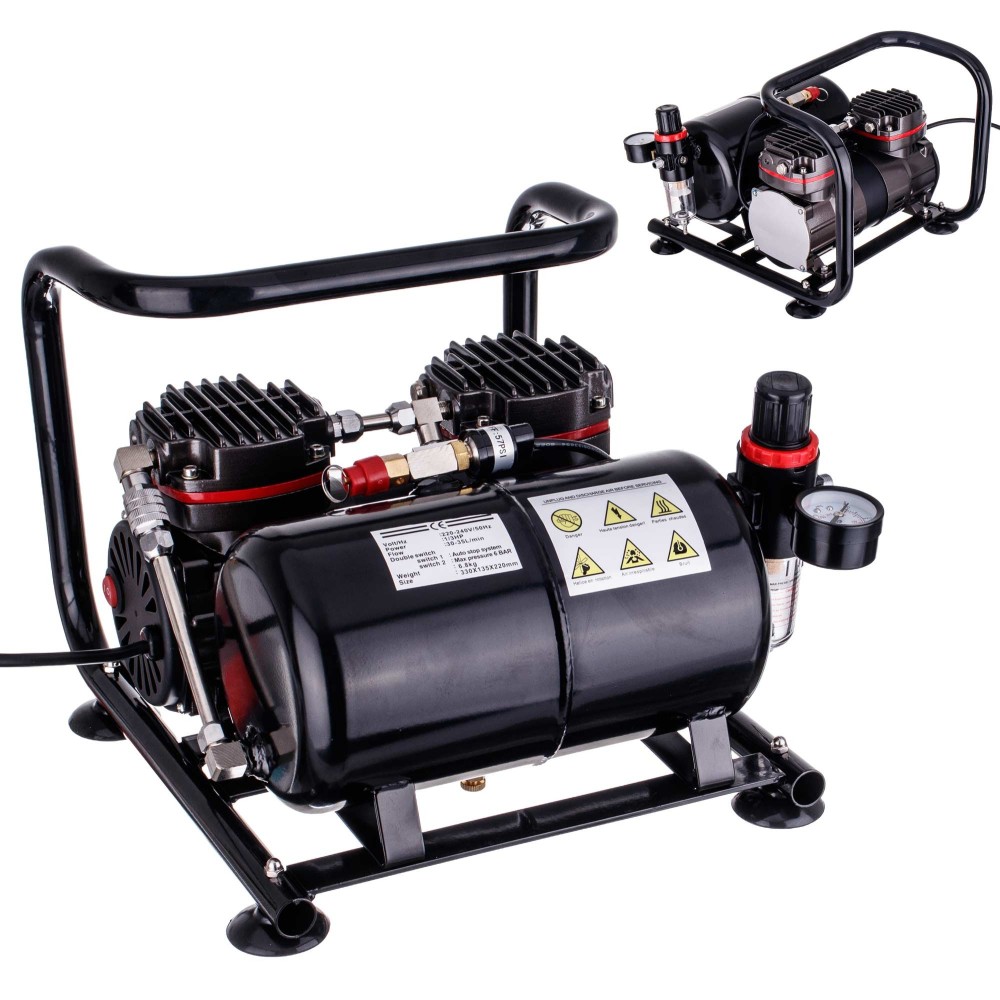

TC-90F with 3L capacity cylinder

▶ ️ Max 6 bar

▶ ️ max 35 l / min

Professional compressor, very good quality at a great price!

Two pistons provide high performance!

Ideal for:

✅ Painting models

✅ Applying graphics on ceramics and glass

✅ Body painting - body painting

✅ Applying graphics on shirts

✅ Decorating cars and motorcycles

The main advantages of the compressor:

• WARTY Cylinder: The 3L tank allows for smooth and efficient operation without air-pulsing
• Reducer with lock and filter: Allows precise pressure setting. The lock prevents accidental turning of the knob. The filter catches moisture from the air extending the service life and increasing the quality of the applied paint coating
• Auto Start / Stop: The compressor will turn off after shooting to 4 bar and turn on again when the pressure drops to 3 bar
• Silent job: Provides work comfort
• Cooling and thermo-fuse: The compressor design ensures the best heat dissipation. In the case of overheating, thermo-switch will turn off the compressor

• Two pistons: A very efficient design, two pistons ensure the most popular work with Each Aerograph - there is no meaning of the nozzle size. The compressor about this performance will handle each equipment.
• Rubber feet: They maintain the device stable in place, affect the reduction of vibrations and sound attenuation
• Handle: Metal and folding, enables safe and convenient transfer of the set

✅ Two modes of operation:

Auto Start / Stop - In position number 1, a very useful feature will be launched by which we not only save electricity and extend the life of the compressor, but above all increases the comfort of work. The compressor turns on when the pressure drops to 3 bar However, turns off when to 4 bar will increase.

In position number two compressor works in continuous mode (no auto alloy) and take pressure up to 6 bar.

Standard connection thread

The compressor has a standard 1/8 "hose connection thread - about 9.5mm measured outside. This allows you to connect most of the hoses and accessories available on the Polish market.

Piston type - oil-free

Provides efficiency and high work culture. Due to its structure, it does not require supplementing oil in a system which makes it virtually maintenance-free.

It should only be remembered about cyclic water from the tank - water condensing from the bottle is a completely normal case when working with compressed air. Dropping water is convenient and fast with one valve in the bottle.

Technical data

• Power: 1 / 3HP - ~ 250W
• Supply voltage: 230
• Tank capacity: 3l
• Auto Start / Stop: 3/4 bars
• Performance: 30-35 l / min
• Accessory connection thread: 1/8 "- 9.5mm measured outside
• Type: piston, oil-free
• Water drain from the tank: manual
• Water drain from the filter: manual
