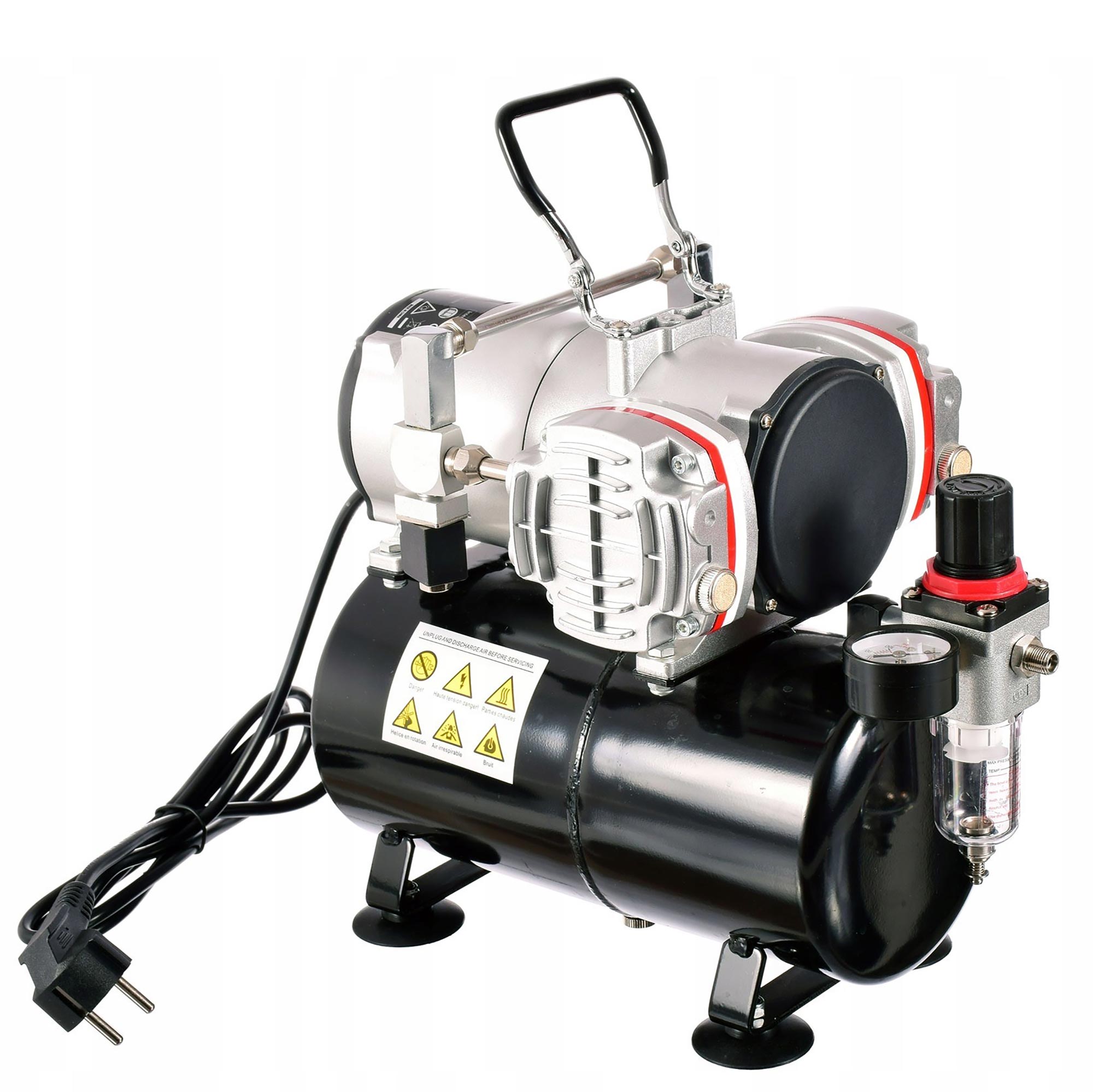

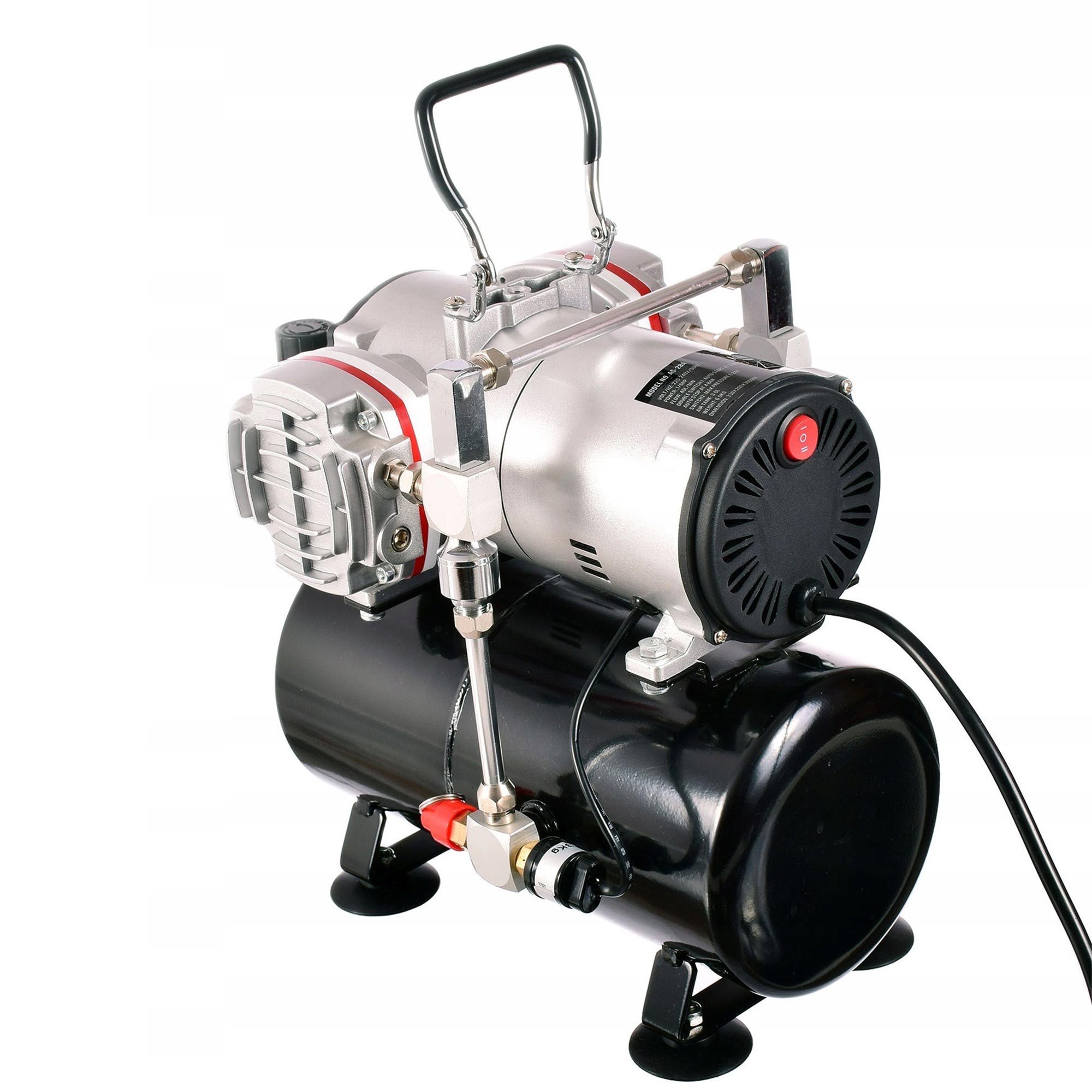

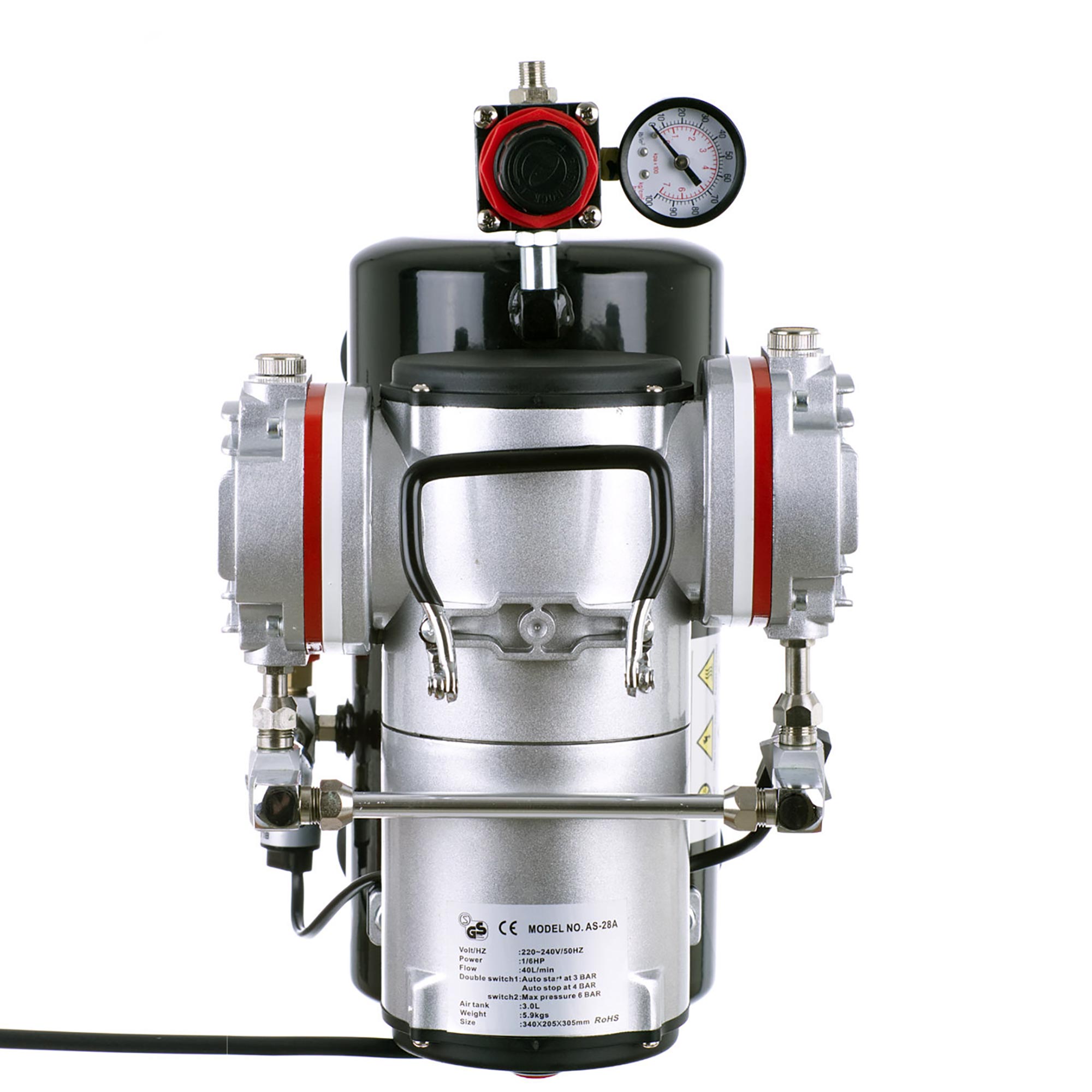

Double-piston airbrisor Large Performance 3L AUTO STOP

Double-piston spray compressor with 3L AS-28A bottle

A datut-piston compressor with high pressure (up to 6 bar) and efficiency (46 l / min) . Thanks to the metal housing, the compressor is very durable and resistant to mechanical damage. Equipped with a reducer with a readable pressure gauge, which has a clear scale presented in two units. Powered compressor The 230V network voltage is resistant to Pierce 220-240V .

It has a compensatory cylinder and two pistons. The compressor is characterized by a silent operation, it is dampened. Unlike other compressors, a very long period of time can work without interruption. It is widely used in modeling, varnishing, vulcanization, computer and electronic servings and wherever compressed air is needed.

Technical data:

• Supply voltage: 230V;
• Power: 1 / 6HP, 125W
• Auto Start: 3Bar (switch I)
• Auto Stop: 4Bar (switch I)
• Max pressure: 6 bar (Switch II)
• Air flow: 40-46l / min!
• Expansion tank: 3l
• Weight: 5,9kg
• Dimensions: 340x205x305mm
• Power cord: 1.65m with earthing
• Pump speed: 1450/1700 rpm
• Safety valve: 6bar

• Praca- The compressor cooperates with 2,2mm nozzles with 2,2mm and mini pistols with nozzles up to 0.8mm. Thanks to the high efficiency and begged cylinder design (cooling), you can paint all the time without interruptions.
• Control and security A set of air preparation integrated with a compressor gives you the ability to fully control pressure and dry air on the output.
• Auto Start / Stop- In position number 1 is started a very useful feature that does not only save electricity and extend the compressor life, but above all increases comfort pracy.Kompresor It turns on when the pressure drops to 3 bar and turn off when it will increase to 4 bar. In the number two compressor, the pressure is reached up to a 6 bar.
• Noise, thermo-fuse- In compared to other compressors with similar AS28A parameters, it is definitely more quiet. In addition, this compressor is equipped with a thermo-switch that prevents the piston.
• Chłodzenie- The entire housing is designed to remove the heat outside the compressor. A well-shaped switch is on when the compressor is turned on.

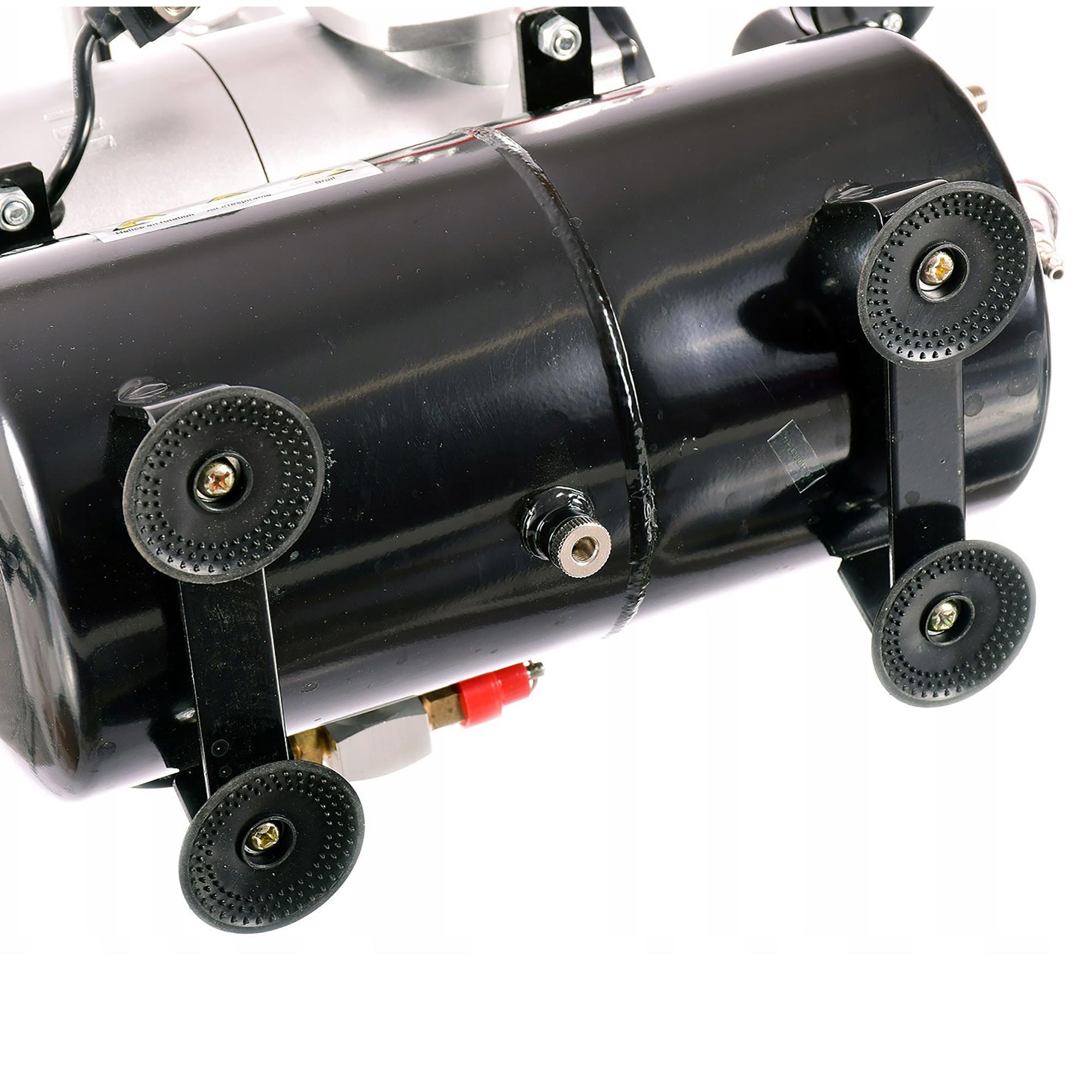

• Rubber legs- They play a fundamental role in this compressor. Their shape and implementation material affects the suppression of vibrations caused by the piston. Also increase the adhesion of the compressor to the substrate.
• Uchwyt- It gives you the ability to transfer the compressor even during short breaks at work, when the cylinder takes on high temperatures
