Manufacturer's code:

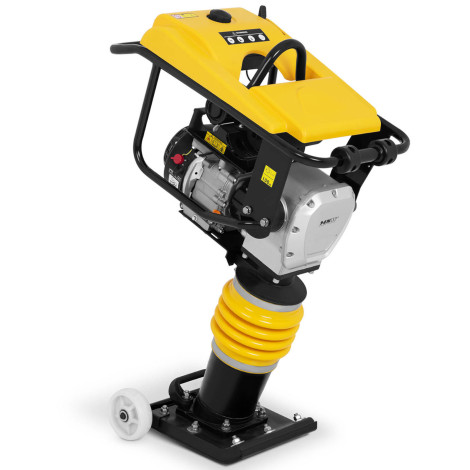

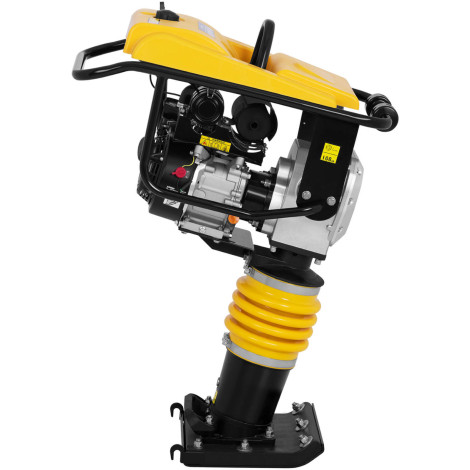

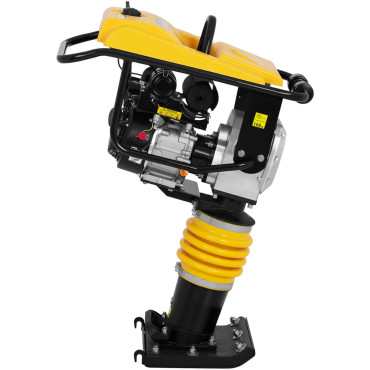

10060981German brand compactor MSW It will work perfectly for whipping soil or sand, asphalt the small surfaces and for pavement works.

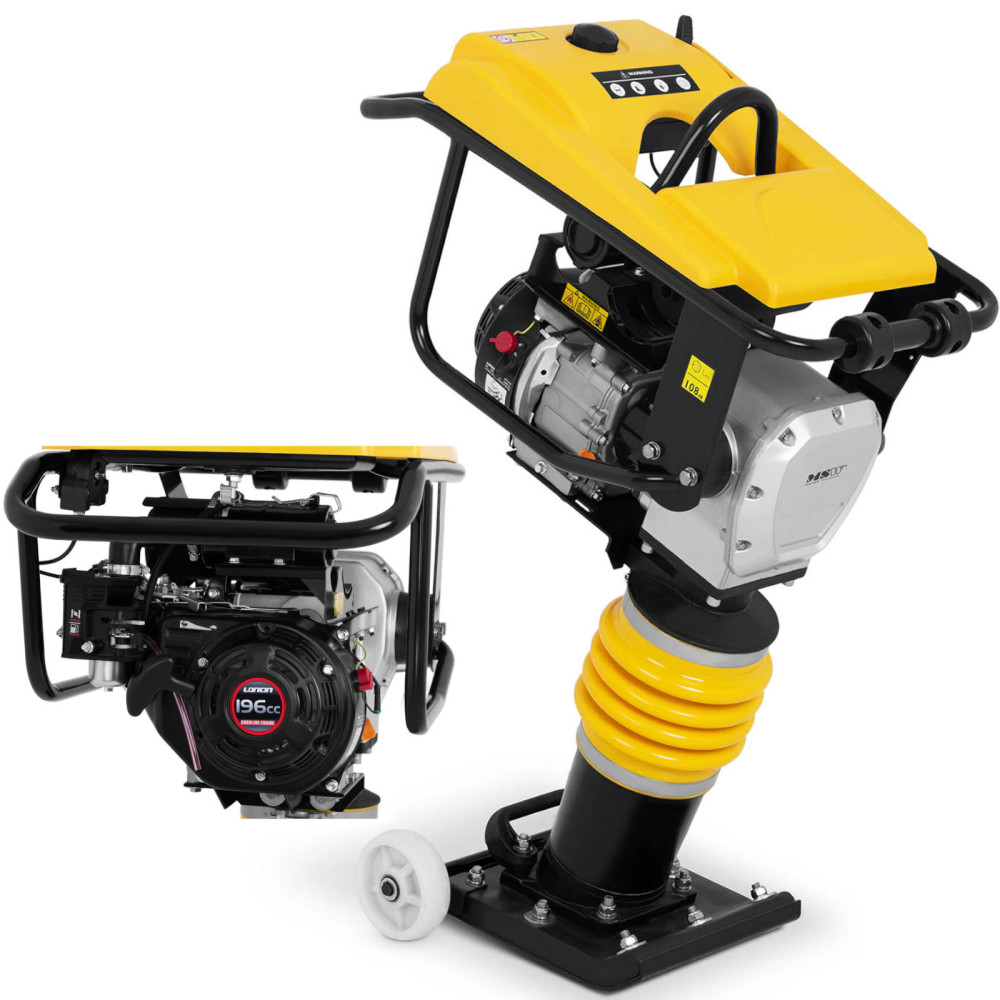

Jumper has an efficient four-stroke OHV motor
Power 4.8 km, producing strength
10 KN the
450-650 VPM. The compactor has a solid frame with a reduced vibration level. The lasting cover protects the engine against possible damage and also reduces noise. Thanks to two circles, the movement of the machine is facilitated.
Product features: - - Power - 4.8 kW engine, force 10 KN at 450-650 VPM,
- - Safety - the permanent cover eliminates potential engine damage and reduces noise,
- - Stability - strong frame reducing vibrations,
- - Balance - strong impact, low noise and vibration,
- - Mobility - Wheels allow easy maneuvering and transport.
Technical parameters: - - Model - MSW-Tram10
- - catalog number - 10060983
- - article - New

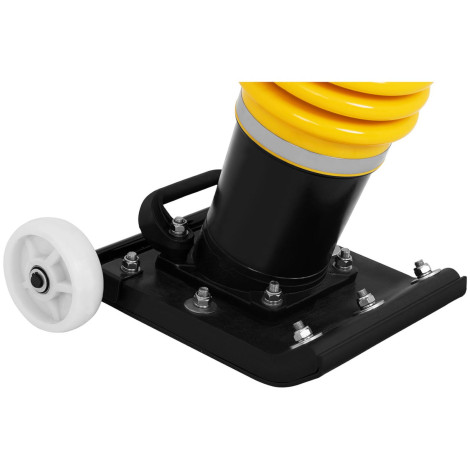

- - Disc size - 34.5 x 28.5 cm
- - Centrifugal force - 10 KN
- - power - 4.8 kW
- - frequency - 450-650 VPM

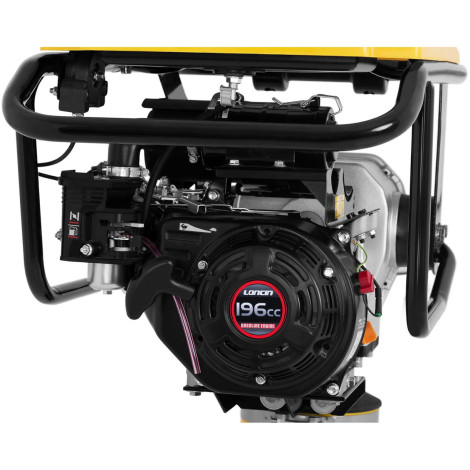

- - Engine - 1-cylinder, 4-stroke, gas, air-cooled, OHV
- - idle speed - 1930 rpm
- - maximum speed - 4050 rpm
- - rated speed - 3600 rpm
- - jump height - 650 mm
- - Vibration frequency - 10.7 Hz
- - noise level - 108 dB
- - engine oil type - 10w-30 / 10w-40
- - oil tank capacity - 0.6 l
- - Fuel tank capacity - 2.8 l
- - Dimensions (DXSXW) - 77 x 44.5 x 107 cm
- - weight - 78 kg
- - Dimensions of shipment (DXSXW) - 76 x 46.5 x 118.5 cm
- - shipping weight - 90 kg
Included: - - ground compactor
- - Wheels - 2 pcs.
- - engine cover
- - EN statement
