Vibrator Concrete compactor length 5m bulb 40cm x 34mm 2000W

€806.27
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062104

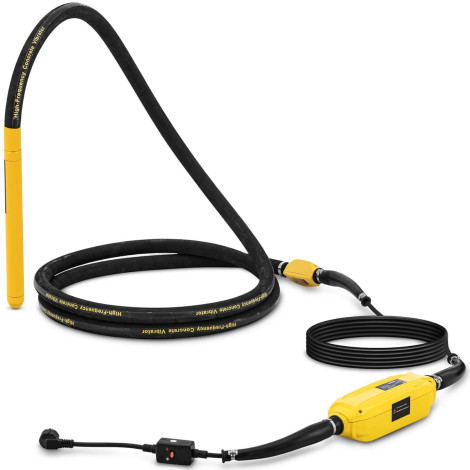

Vibrator for concrete with integrated brand frequency converter MSWThis is the perfect solution for professional compaction of concrete. Power engine 2000 in Generates strong vibrations 12,000 / min frequency 200 Hz. Buffer 40 x 34.5 mm It removes even very small air bubbles. Thanks to the integrated converter, the construction vibrator is connected directly to the power supply Ac And immediately starts work, which is especially practical. The concrete vibrator has a hose with a length 5 m and cable with a length 15 m. Both enable a wide range of applications with maximum freedom of movement. Working with the device is particularly delicate thanks to the engine built into a body of a bulwash, which moves vibrations directly to concrete. Workload and strength required when using the equipment has been reduced to a minimum. The concrete vibrator has a degree of protection Ipx8 (water resistance) for vibrating bulbs and Ipx5 (Protection against water splashes) for the inverter, as well as protection against engine overheating. Solid construction and high quality of workmanship makes the equipment easy to maintain and very durable.
Product features:
  • - Equipment at the output power of 2000 W and vibration frequencies 200 Hz reaches the number of vibrations 12,000 per minute,

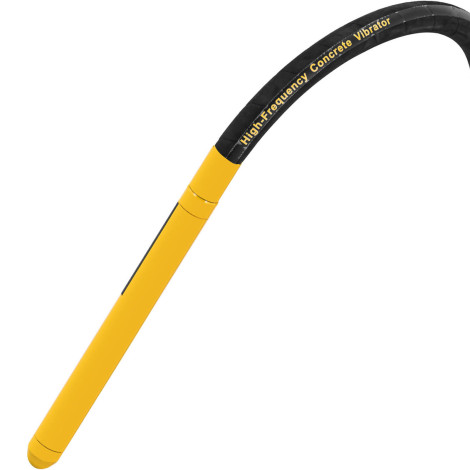

  • - a large bule of 40 x 34.5 mm removes even very small air bubbles,
  • - Thanks to the inverter, the AC power can be directly connected directly
  • - low-lifing with a motor in the body of bulwage for delicate and energy-saving work,
  • - Security with IPX8 protection classes for the Body and IPX5 body for the inverter and overheating protection.

Technical parameters:
  • - catalog number - 10062104
  • - article - New
  • - Model - MSW-Hfcv-40-C.
  • - Material - Stainless steel, rubber, copper
  • - Cable length [m] - 15
  • - frequency [Hz] - 50
  • - Permidity [kN] - 3.2
  • - IP protection degree - IPX8 (Bulwy) / IPX5 (inverter)
  • - Hose length [m] - 5
  • - Rated rotational speed [obr./min] - 12,000
  • - Tension [V] - 230
  • - power [W] - 2000
  • - Corps of Culture [mm] - 40 x 34.5
  • - Vibration frequency [Hz] - 200
  • - Dimensions (DXSXW) - 10 x 200 x 10 cm
  • - weight - 14.1 kg
  • - Dimensions of shipment (DXSXW) - 58 x 21 x 60 cm
  • - shipping weight - 15.7 kg

Included:
  • - concrete vibrator
  • - User manual
MSW
1019819
24 Items

Data sheet

Kod producenta
1019819
