Manufacturer's code:

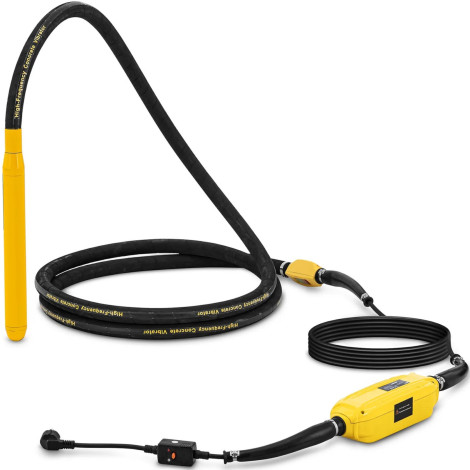

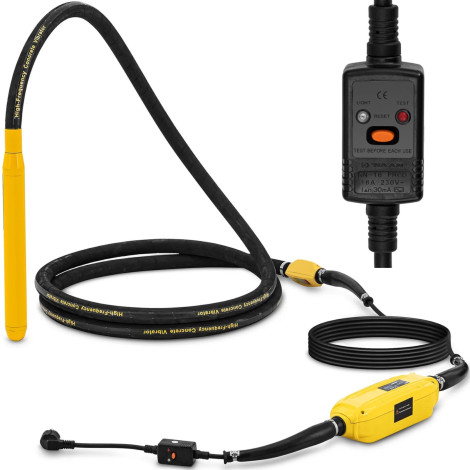

10062105Vibrator for concrete with integrated brand frequency converter
MSWThis is the perfect solution for professional compaction of concrete. Power engine
1500 W Generates strong vibrations
12,000 / min frequency
200 Hz. Buffer
490 x 50 mm It removes even very small air bubbles. Thanks to the integrated converter, the construction vibrator is connected directly to the power supply
Ac And immediately starts work, which is especially practical. The concrete vibrator has a hose with a length
5 m and cable with a length
15 m. Both enable a wide range of applications with maximum freedom of movement. Working with the device is particularly delicate thanks to the engine built into a body of a bulwash, which moves vibrations directly to concrete. Workload and strength required when using the equipment has been reduced to a minimum. The concrete vibrator has a degree of protection
Ipx8 (water resistance) for vibrating bulbs and
Ipx5 (Protection against water splashes) for the inverter, as well as protection against engine overheating. Solid construction and high quality of workmanship makes the equipment easy to maintain and very durable.
Product features: - - Equipment at the output power of 1500 W and vibration frequencies 200 Hz reaches the number of vibrations 12,000 per minute,

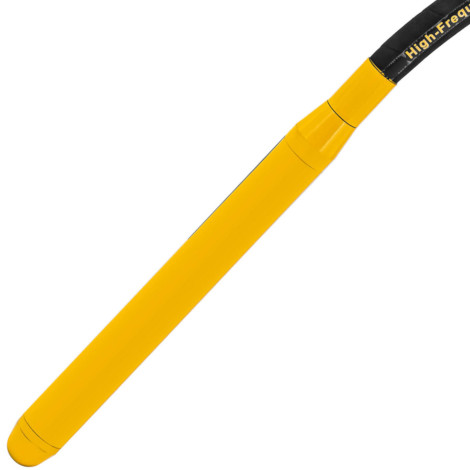

- - Big Bace 490 x 50 mm Removes even very small air bubbles,

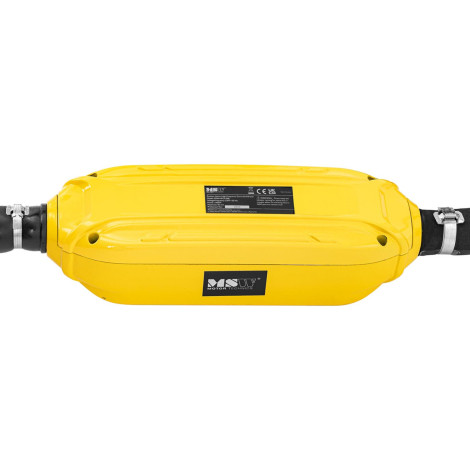

- - Thanks to the inverter, the AC power can be directly connected directly
- - low-lifing with a motor in the body of bulwage for delicate and energy-saving work,
- - Security with IPX8 protection classes for the Body and IPX5 body for the inverter and overheating protection.
Technical parameters: - - catalog number - 10062105
- - article - New
- - Model - MSW-Hfcv-50-C.
- - Material - Stainless steel, rubber, copper
- - Tension [V] - 230
- - IP protection degree - Ipx8
- - power [W] - 1500
- - Corps of Culture [mm] - 490 x 50
- - Rated rotational speed [obr./min] - 12,000
- - Cable length [m] - 15
- - Permidity [kN] - 5
- - Hose length [m] - 5
- - Vibration frequency [Hz] - 200
- - Dimensions (DXSXW) - 10 x 10 x 550 cm
- - weight - 17.65 kg
- - Dimensions of shipment (DXSXW) - 60 x 58 x 21 cm
- - shipping weight - 19.4 kg
Included: - - concrete vibrator
- - User manual
