Manufacturer's code:

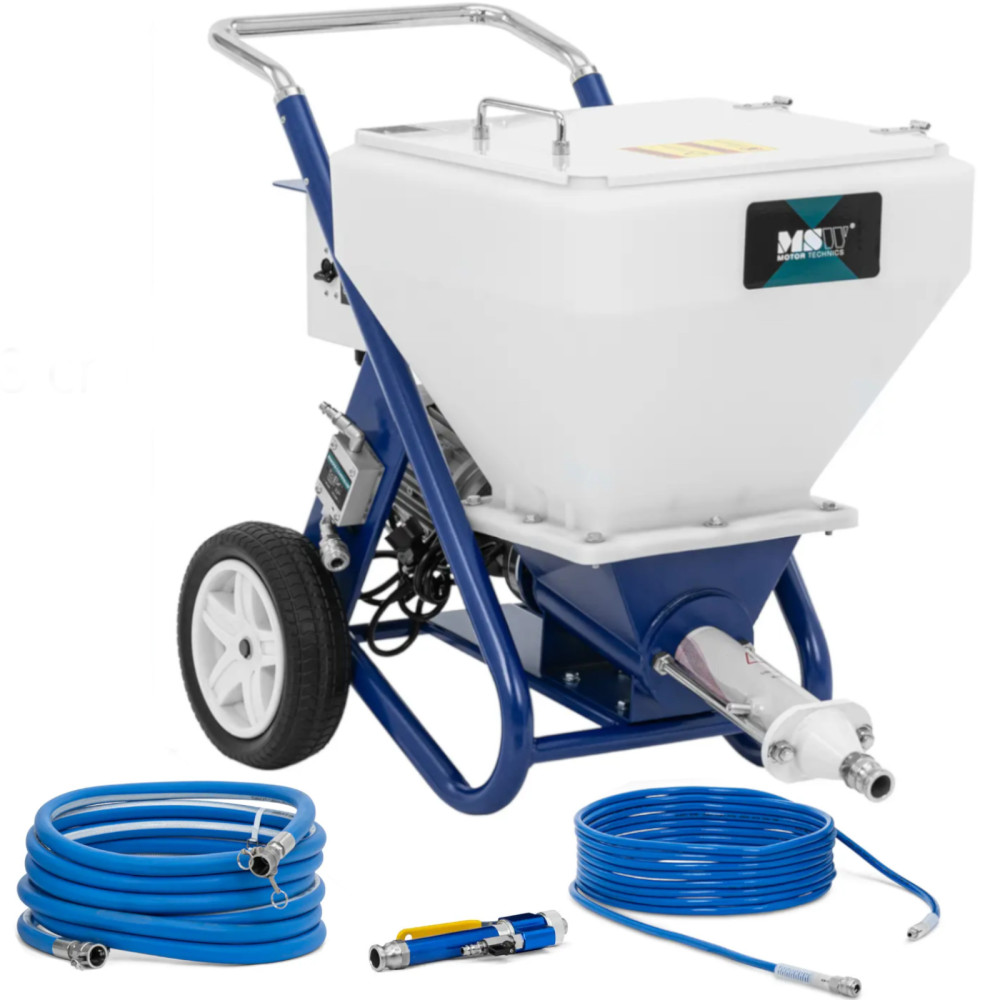

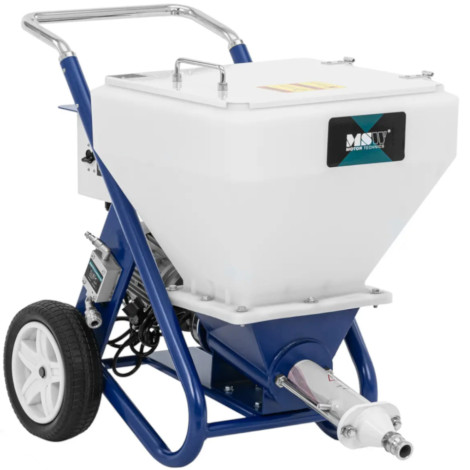

10062634Brand plastering aggregate MSW It will allow without effort to put a water plaster on the wall on a plaster, lime or cement. The rotor on the device provides an ideal consistency that applies to the wall under a working pressure up to 20 bar. In this way, the mortar will remain on a vertical surface and will create a equal layer that is enough to smooth. Service plastering machines is extremely easy and will provide maximum freedom of movement. Connect it to the compressor and set the input pressure using the air reducer.
The direction of rotation and rotor speed is referred to on a readable control panel depending on the type of material and the amount of water used to obtain the mass. The device will reach the best results with a material with granularity to 6 mm. Snake for the treatment has a length of 7.5 m, so you can easily guide the spray gun during the application. Depending on the type of mass, a suitable nozzle should be selected.
Note: A air compressor is needed to operate the machine.
Depending on the material, a compressor with a power from 3 to 7.5 km is recommended. The plaster container has a capacity of 40 liters. This means that with a plastering unit, even large surfaces at a flow of 15 l / min without long breaks can be covered with a plastering aggregate. The container cover will ensure cleanliness during operation.
Thanks to two circles, you can easily transport the machine to place. Compact dimensions of the aggregate are ideal for use on scaffoldings. This means that it also allows you to reach the higher parts of the walls. After completing the work, the device should be cleaned with water and attached cleaning balls.
Product features: - - at the working pressure of 20 bar, the plastering unit will evenly distribute on the wall to 15 l / min mortar, plaster or cement,
- - dry material such as plaster or lime with granularity up to 6 mm should be mixed with the addition of water in the machine to obtain the right weight,
- - 40 L tank allows for a seamless operation on large surfaces using a plastering aggregate,
- - thanks to a 7.5-meter hose and easy to use a spray gun, the plastering machine will provide optimal freedom of movement during operation,
- - Two wheels make it easier to transport the aggregate whose compact shape and dimensions will fit on the scaffolding.
Technical parameters: - - catalog number - 10062634
- - article - New
- - Model - MSW-Pu-20
- - Power type - Network
- - Material - Rubber, PP, iron
- - Color - Blue, white
- - Tension [V] - 230
- - IP protection degree - Ip54
- - power [W] - 2200
- - Working pressure [bar] - 20
- - Maximum working pressure [psi] - 290
- - speed of rotation [obr./min] - Engine: 0 - 2500 Roter: 0 - 160
- - IEC protective class - And
- - Power cord - 2.5 m
- - Hose length - 750 cm
- - flow - 15 l / min
- - air pressure - 10 bar
- - Pumping height - 15 m
- - maximum capacity - 40 L
- - Number of wheels - 2
- - Diameter of wheels - 200 mm
- - length of the compressed air wire [m] - 10
- - Dimensions (DXSXW) - 96 x 53 x 88 cm
- - weight - 50 kg
- - Dimensions of shipment (DXSXW) - 90 x 55 x 84 cm
- - shipping weight - 70 kg
Included: - - plastering aggregate
- - Mixing pump
- - Spray gun
- - 4 metal spray nozzles
- - 6 cleaning balls
- - Sealing tape
- - EU compressed air adapter
- - A snake for mortar (7.5 m)
- - Compressed air hose (10 m)
