Fan ventilation set. Carbon filter 50 cm. Wed door pipe. 102 mm 10 m

Manufacturer's code: 10090336

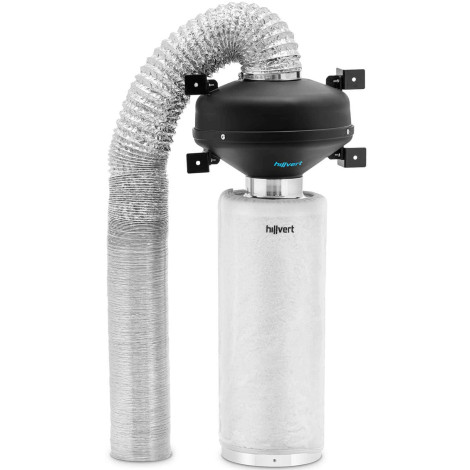

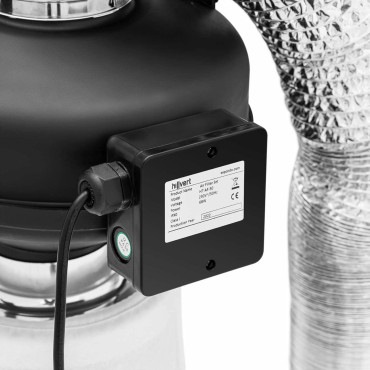

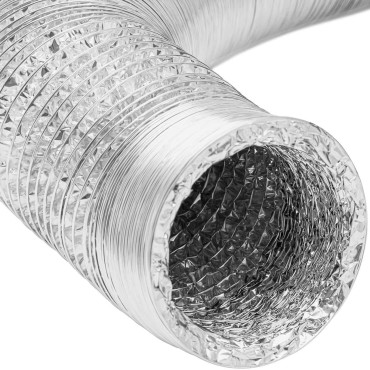

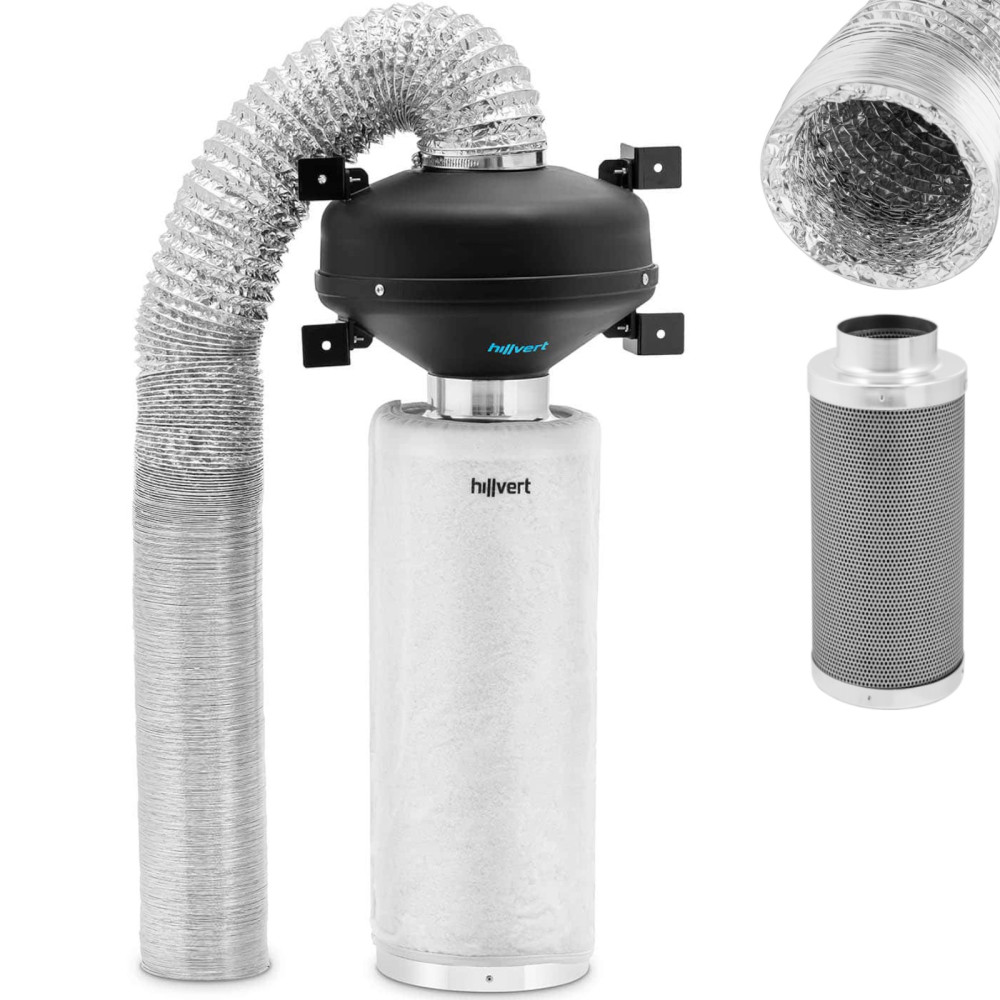

Hilvert ventilation set It consists of products with numbers: 10090335, 10090329 and 10090327. Channel fan It is quiet, very efficient and reliably pulls up to 249.6 m3 of air per hour. The device operates at constant pressure and with 60 W power. It has a 98.5 mm outlet. Ventilation pipe It is easily stretchable to 1000 cm, the spiral is on both sides covered with aluminum, which makes the pipe resistant to corrosion, reliably discharges a steam and used air. The pipe is very flexible, its diameter is 100 mm. Filter with activated coal It binds all kinds of undesirable molecules, regardless of whether it is smoke, vapors, gasoline, chemicals, pesticides or animal smells. The porous surface works like a sponge, binding every form of particles.
Product features:

• - the kit consists of a channel fan, ventilation pipe and a carbon filter,
• - suitable for air conditioning, ventilation systems, Growboxes and many others,
• - a fan and a carbon filter with a large air flow,
• - made of durable materials,
• - The complete set makes it easy to assemble and installation.

Technical parameters:

• - catalog number - 10090336
• - article - New
• - Model - Ht-af-50
• - Tension [V] - 230
• - Material - ABS, PA
• - current [A] - 0,23
• - Air flow [m³/h] - 249,6
• - Hose length [cm] - 1000
• - Hole diameter [mm] - 102
• - power [W] - 60
• - outlet diameter [mm] - 98,5
• - Filter type - Filter with activated coal
• - operating temperature range [deg C] - 85
• - Dimensions (DXSXW) [cm] - 32 x 32 x 70
• - weight [kg] - 6,9
• - Dimensions of shipment (DXSXW) [cm] - 84 x 35 x 35
• - shipping weight [kg] - 9,8

Included:

• - Active coal filter
• - channel fan
• - ventilation pipe
