Aerial heat exchanger recuperator 70 m2 210 m3 / h

Manufacturer's code: 10062647

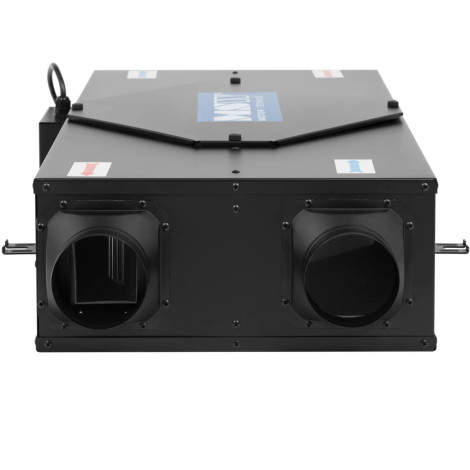

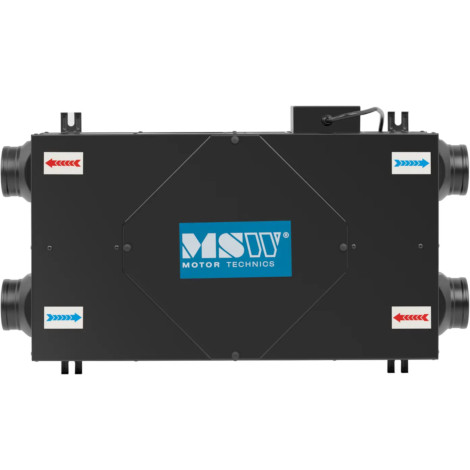

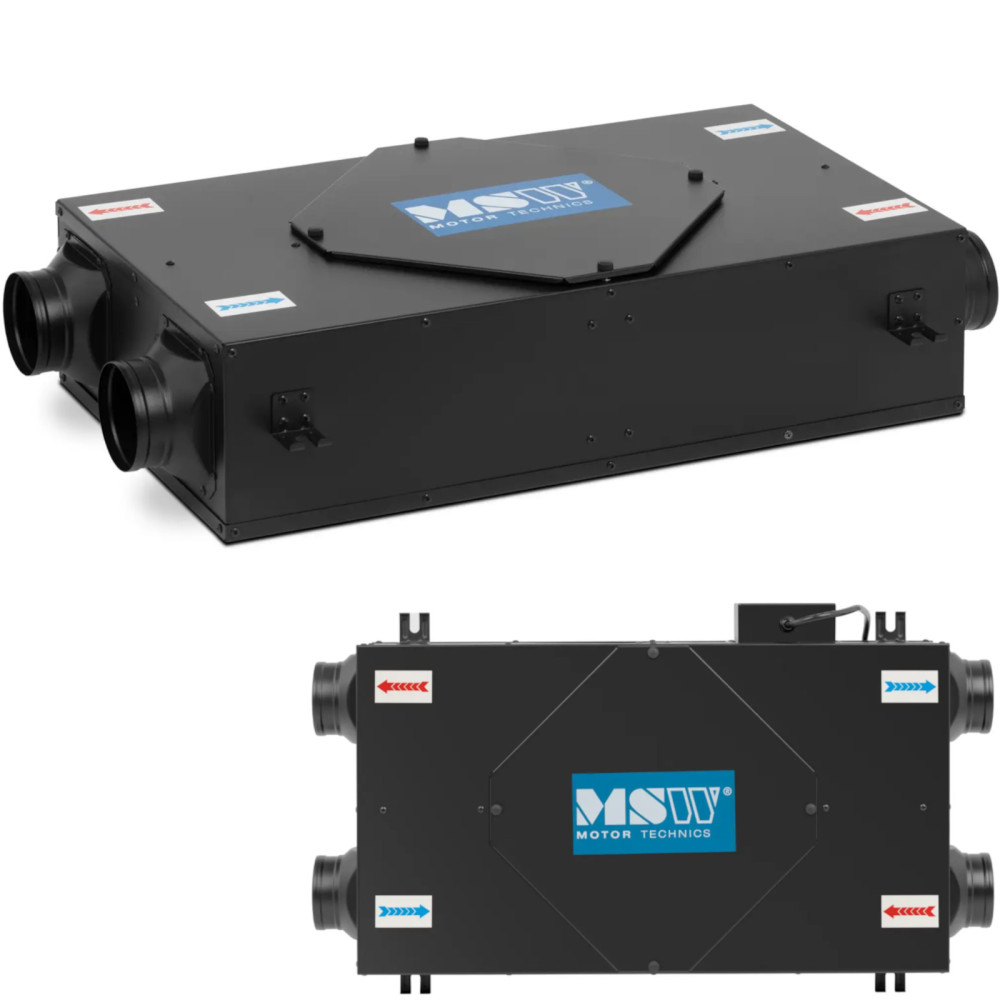

Aerial heat exchanger MSW It will allow you to warm fresh and usually cooler air from the outside using the air-exhaust air. As a result, less heats, saving energy and spending less money. A very compact cross heat exchanger will delight not only with its effective parameters, but also your design. The heart of the exchanger is a graphene module through which two streams are carried out. The structure of a modern system will allow for optimal heat exchange up to 65%. In addition, the air flow through two filters that will provide a clean and pleasant microclimate. Inlets and outlets have a diameter of 146 mm, which will guarantee the optimal flow through the heat exchanger. An air exchanger can be used in 70 m² rooms and a height of up to 3 m. Depending on the situation with the knob, you can easily select one of three levels: 210, 175 and 160 m³ / h. This will ensure even ventilation and optimal heat exchange and moisture on the device. The durable fan motor with heat recovery works with the copper maintenance of a high reliability coil. The heat exchanger is also equipped with overheating protection. Foam panels inside the housing effectively mutely generated noise.
Product features:

• - aerial heat exchanger will use air from outside air from external efficacy, 65%,

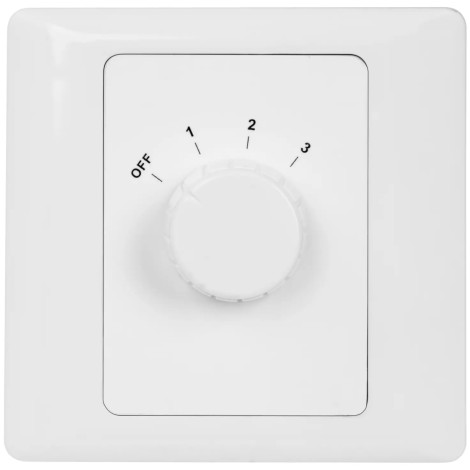

• - the operation of the heat exchanger fan can be set in three degrees 210, 175 and 160 m³ / h,
• - the most modern graphene module in the air exchanger will provide optimal heat transfer and moisture,
• - a permanent motor with a copper coil of AC current and protection against overheating will take care of reliable operation,
• - Two air filters and exhausted in heat exchanger will increase air quality and provide its seamless exchange.

Technical parameters:

• - catalog number - 10062647
• - article - New
• - Model - MSW-Hqair10s
• - frequency [Hz] - 50
• - Material - Powder-painted steel
• - Color - Black
• - Tension [V] - 230
• - IP protection degree - Ipx2
• - Air flow [m³/h] - 210/175 / 160
• - power [W] - 150
• - internal / outer diameter - 146 mm
• - Power cord - 130 cm
• - Maximum pressure - 348 PA
• - Coverage area - 70 m²
• - noise level - 60 dB
• - Thermal protection - So
• - Dimensions (DXSXW) - 86 x 50 x 20 cm
• - weight - 18.7 kg
• - Dimensions of shipment (DXSXW) - 91 x 55 x 25.5 cm
• - shipping weight - 20.89 kg

Included:

• - Aerial heat exchanger
• - Heat exchanger assembly
• - 2 filters
