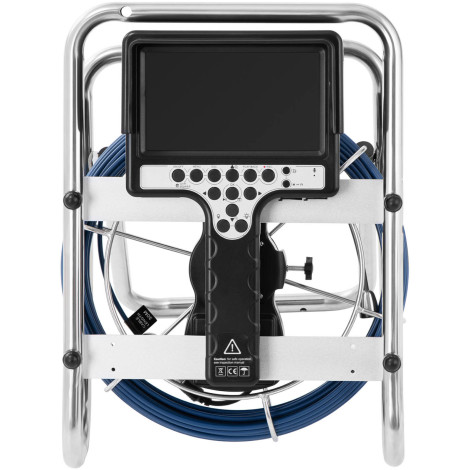

Endoscope Diagnostic Camera Inspection 12 LED LCD 7 inches SD 30 m

€1,433.91
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10030899

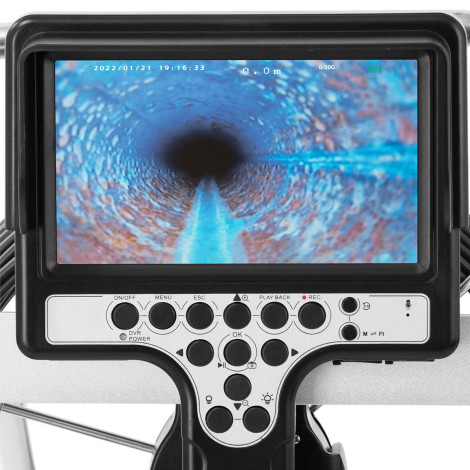

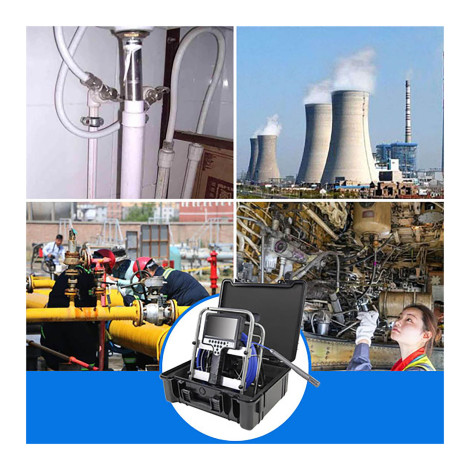

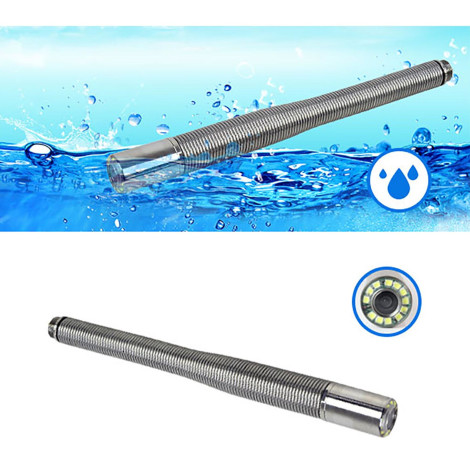

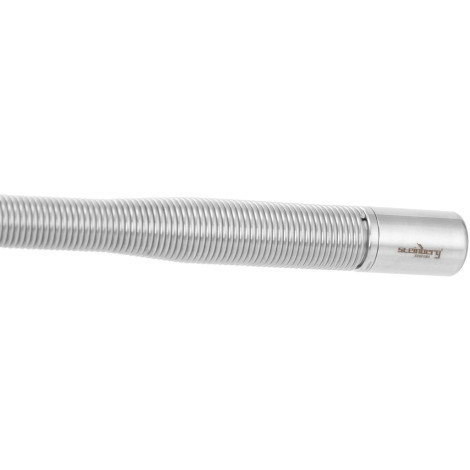

Brand Inspection Camera Steinberg Systems It allows you to invest even hard visible or available jobs and malfunctions. Allows you to check wires, pipes or outflows as well as slots or cavities during renovation works. A flexible probe and an ergonomic handle make it ideal for various applications. Camera head It is introduced into a pipe using a 30M length probe made of fiberglass. Two pruder leading with different sizes adjust the camera to the pipe diameter. The head and probe are waterproof (Ip68) And therefore can also be used in a humid environment. The flexible camera head can Rotate about 90Deg and has a viewing angle of 105deg . 12 LEDs Provides appropriate light. Sapphire lens is suitable for difficult conditions and provides sharp images on the monitor LCD. Ezmult-zoom Digital and independent image alignment show all details. Camera control takes place using a check box. In addition to browsing, you can also record audio and video and images that will provide you with valuable information when analyzing cracks or congestion. The camera is equipped with a nest USB, and SD cards. The 8 GB SDHC card has been included in the delivery range. Cordless power supply allows you to use equipment anywhere without an external power source. The set includes a transport case.
Product features:
  • - Large camera 23 x 240 mm with a resolution of 720 x 576 px and a 7-inch color iPS display
  • - 12 LEDs,
  • - a 30 m length probe,
  • - the ability to record video and audio recordings and images,

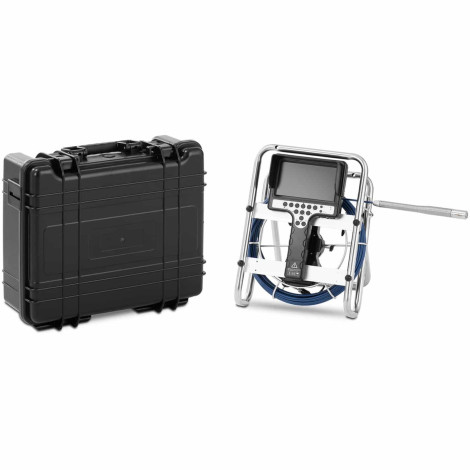

  • - Transport suitcase included.

Technical parameters:
  • - catalog number - 10030899
  • - article - New
  • - Model - SBS-Ec-300c
  • - Material - Housing: stainless steel (SS 304) / Cable: Glass Fiber / Cable Reel: Stainless Steel / USB Connector: Plastic (ABS)
  • - Number of LEDs - 12
  • - power source - 12V (control box) Charger: input: AC 100-240 V ~ 50/60 Hz, Output: DC 12.6 V / 1000 MA
  • - battery - 4400 mAh, 12.6 V
  • - battery power - So
  • - viewing angle [deg ] - 105
  • - Case included - So
  • - Digital enlargement - x 8
  • - Automatic shutdown - So
  • - Head rotation degree [deg ] - 90
  • - housing material - Plastic
  • - LED lamp - So
  • - Lens type - Sapphire glass
  • - head diameter [mm] - 23 x 240
  • - Display - LCD
  • - Type of photosensitive matrix - CMOS
  • - Memory - 8 GB SDHC card
  • - length of the probe boom [mm] - 30
  • - Sensor size [''] - 1/4
  • - video and photo files format - AVI, JPG
  • - IP protection class - Ip68
  • - transmission signal - Cable
  • - USB port - So
  • - Display type - 7-inch IPS display
  • - Dimensions (DXSXW) - 50 x 20 x 45 cm
  • - weight - 10 kg
  • - Dimensions of shipment (DXSXW) - 51.5 x 21 x 46 cm
  • - shipping weight - 11.62 kg

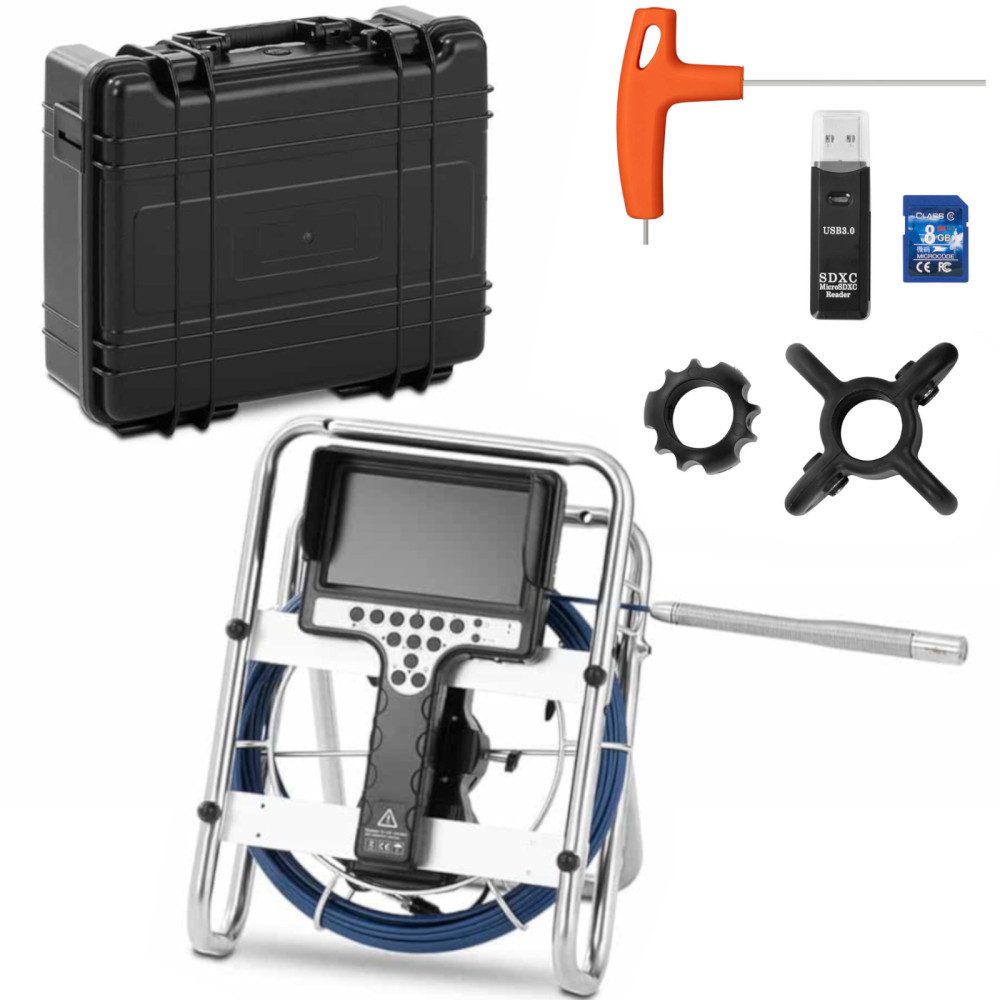

Included:
  • - Inspection camera
  • - Monitor
  • - probe
  • - camera head
  • - 2 rubber rings
  • - skids (40/80 mm)
  • - Screwdriver
  • - SD card
  • - USB reader
  • - Batteries
  • - Charger
  • - Sunshade
  • - rail
  • - suitcase
  • - User manual
