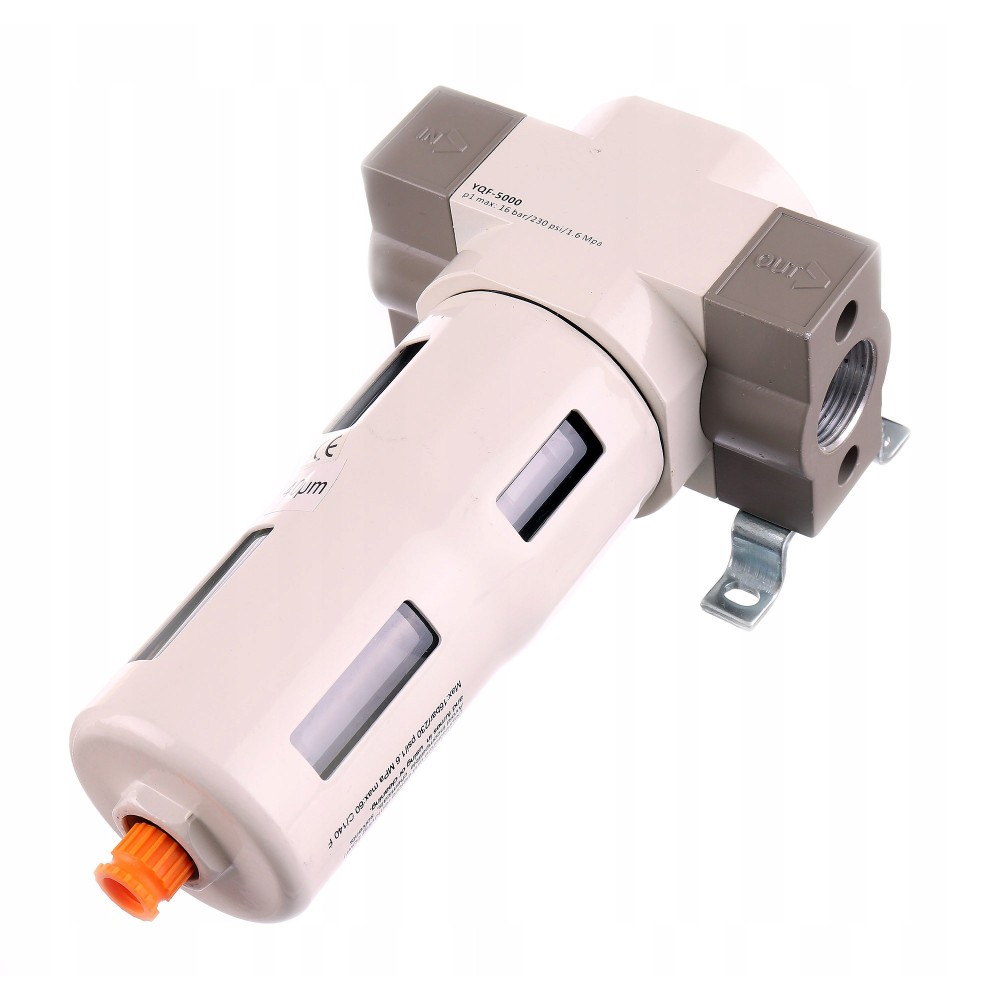

Air-drainer

✅ 3/4 "threads

✅ Maximum pressure 16 bar - maximum bandwidth 8500 l / min

✅ YQ-WHITE PRO series

Technical data:

• Height: 220mm
• Threads: 3/4 "
• Working pressure: 0.5-12 bar
• Maximum pressure: 16 bar
• Filtration: 40 microns
• Maximum bandwidth: at 7-mic bars 8500 l / min | at 12,000 bars 7000 l / min
• Minimum airflow: 10 l / min
• Tank capacity: 80 ml
• Working temperature: 0-60 ° C
• Manometer connection thread: 1/4 "

• One of the best made filters available on the Polish market! It cleans the air from all contaminants including water and oils.
• It is an indispensable element of each pneumatic installation. Using this filter, you can prevent, inter alia; Rusting tools, drains when painting paint guns, snake damage, etc.

Additional information:

• The filter does not require additional fasteners, maintains on a nipple or a connector that will be attached to the compressor. It has also been equipped with handles that can be screwed into the wall.
• Emptying water consists in unscrewing the valve placed at the bottom of the filter. It is equipped with a metal tank cover.
• The device body is made of aluminum so that it can withstand up to 16 bar!
