YQFC4010-04 filter 1/2 "40um air + reduktor + Naolejacz (-)

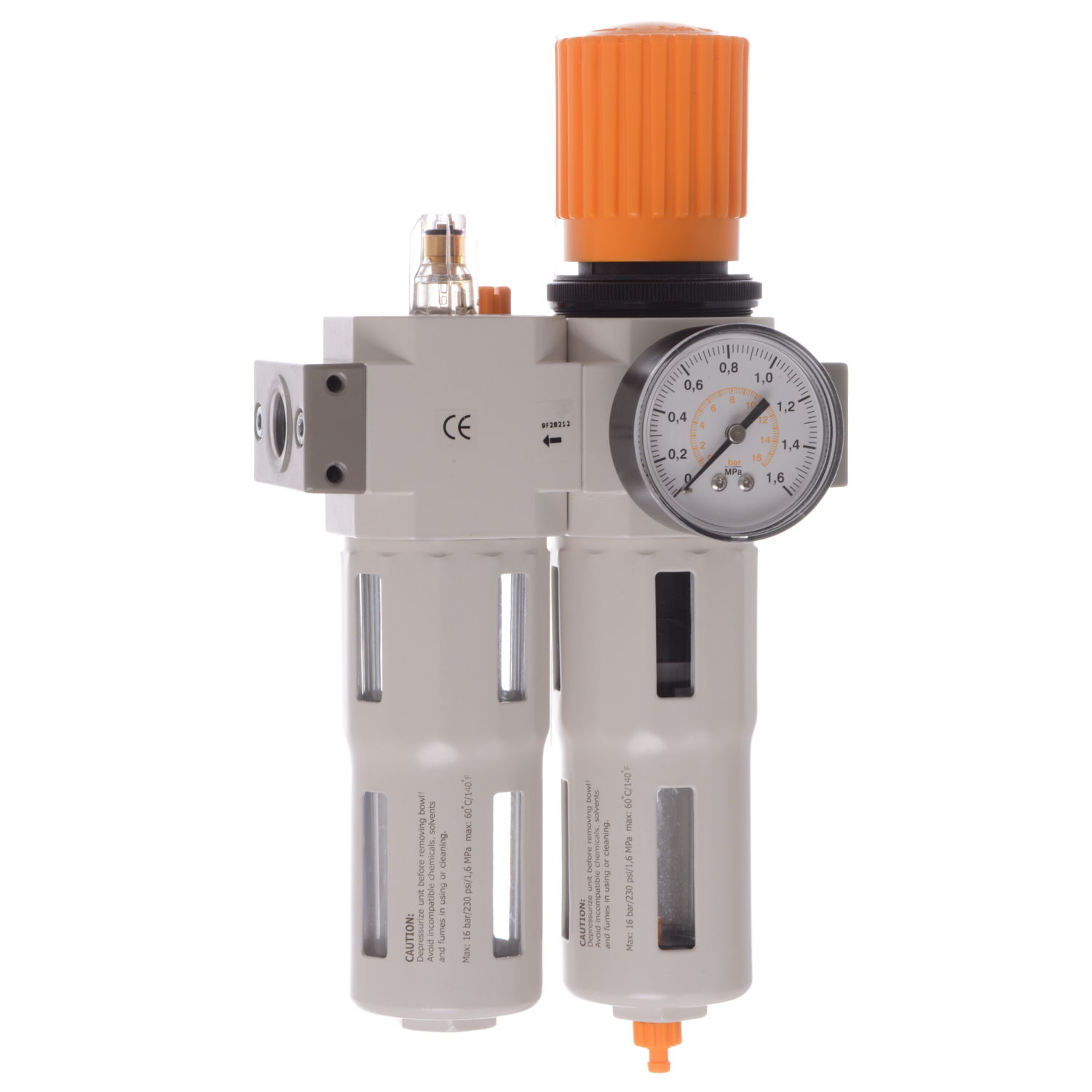

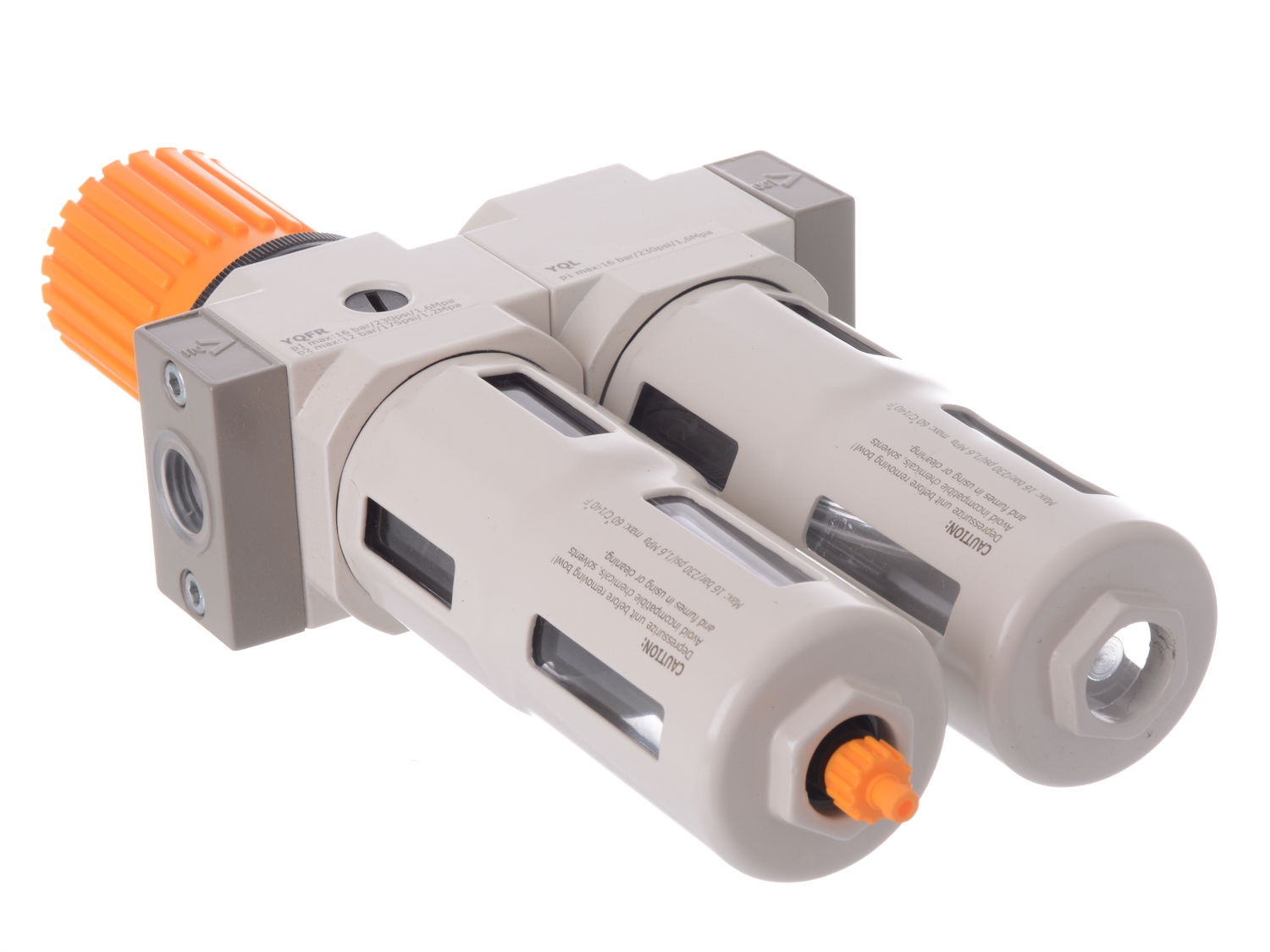

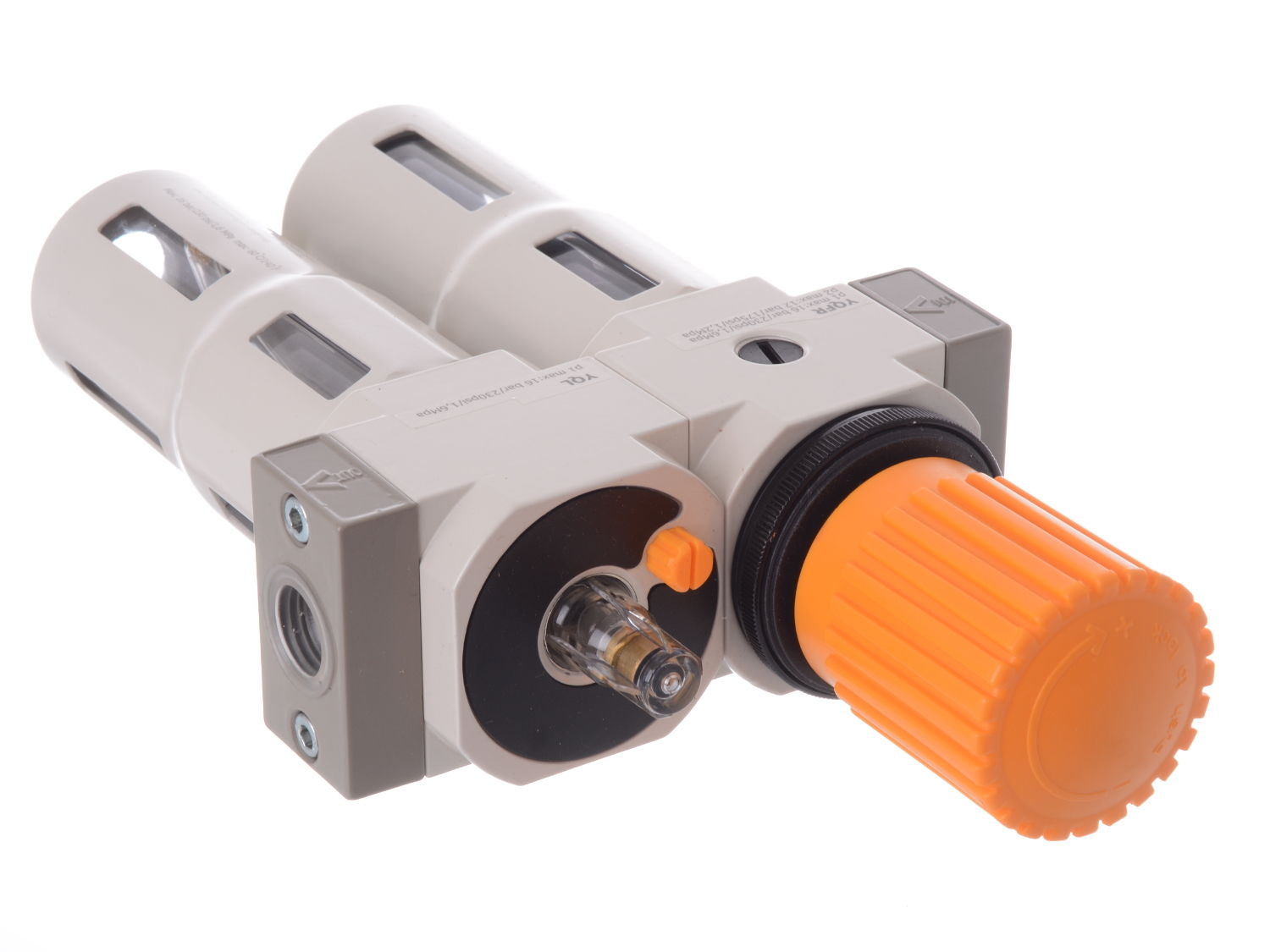

Complete block of air preparation - YQFC4010-04

The reducer filter cleans the air from all contaminants including water and oils.

Then the integrated impact, automatically dispenses pneumatic tools. It is equipped with the adjustment of the amount of oil fed. The minimum pressure at which the oil is dispensed is 1.5 bar.

The kit is an indispensable element of each pneumatic installation where pneumatic tools requiring oil fog lubrication are used.

The filter does not require additional fasteners, maintains on a nipple or a connector that will be attached to the compressor. It has also been equipped with handles that can be screwed into the wall. Emptying water consists in unscrewing the valve placed at the bottom of the filter. It is equipped with a metal tank cover.

The reducer is a precise and massive and a manometer clearly described with scale in bars or mega-pascular.

Technical data:

• Height: 265mm
• Width: 145mm
• Filtration: 0.04 mm
• Threads: 1/2 "(about 19 mm inside)
• Working pressure / maximum: 0-10 bar / 16 bar
• Maximum flow: 4000 l / min
• Tank capacity approximately 100 ml
• Regulatory range: 0-16 bar
• Mass: 1.9 kg
