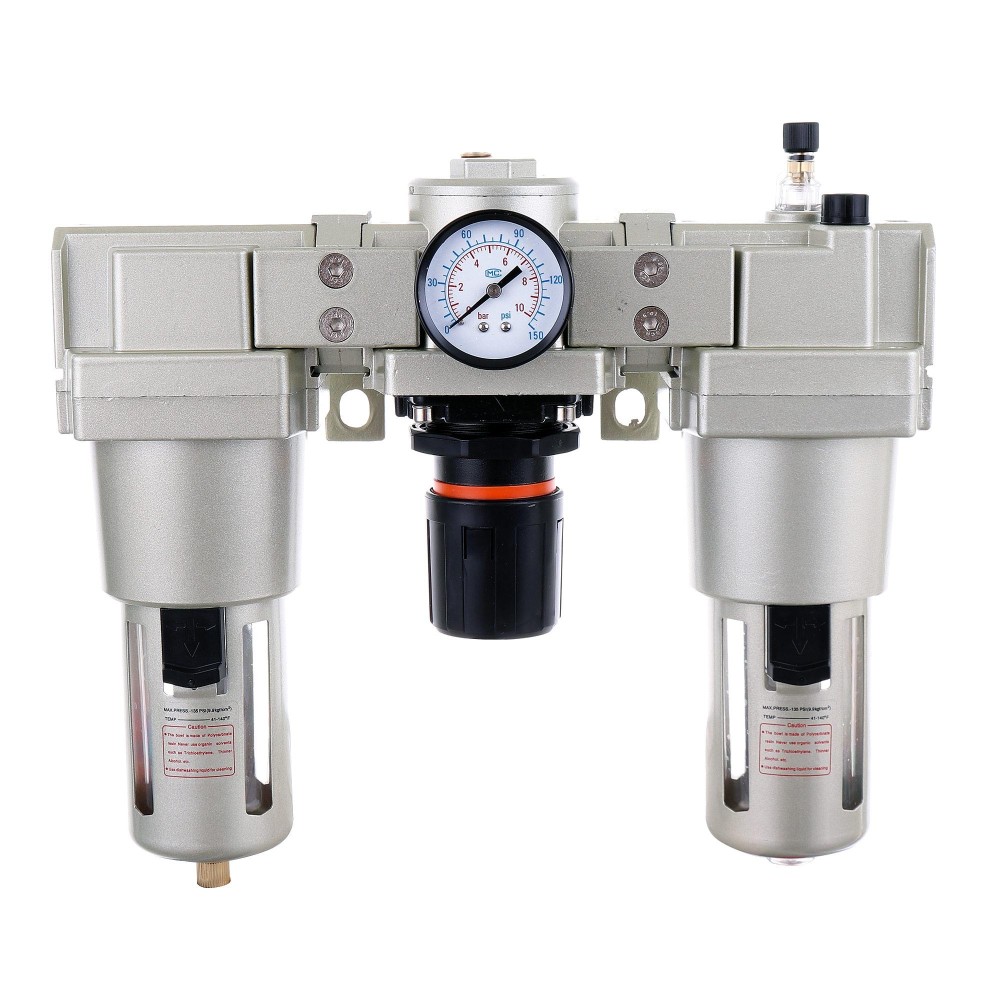

POW filter + RE + NA.AC5000-10 1 "(CH) 20UM (-)

Filter, Reducer, Naolejacz, Air preparation unit 1 "AC5000-10 - 20UM

The set is used for comprehensive air preparation for operation with pneumatic tools, starting from determining the operation pressure by removing water vapor and impurities to supplying the oil by the oil mist necessary for the proper functioning of pneumatic tools.

The air filter includes a filter (dryer), reducer with pressure indicating pressure gauge and automatic naolejam. The whole fits compressors with 1 "output is about 30mm.

Technical data:

• Height: 260 mm
• Width: 310mm
• Filtration: 20 microns
• Threads on both pages: 1 "(~ 30 mm)
• Working / maximum pressure: 9.7 bar / 14.7 bar
• Range of regulation: 0.5-10 bar
• Maximum flow: 5000 l / min
• Tank capacity: 45 ml
• Adjusting the amount of oil fed: Yes
• Hitch for screwing or hanging: Yes
• Manometer. Unit: 0-10 bar
